Free Layout Main Window

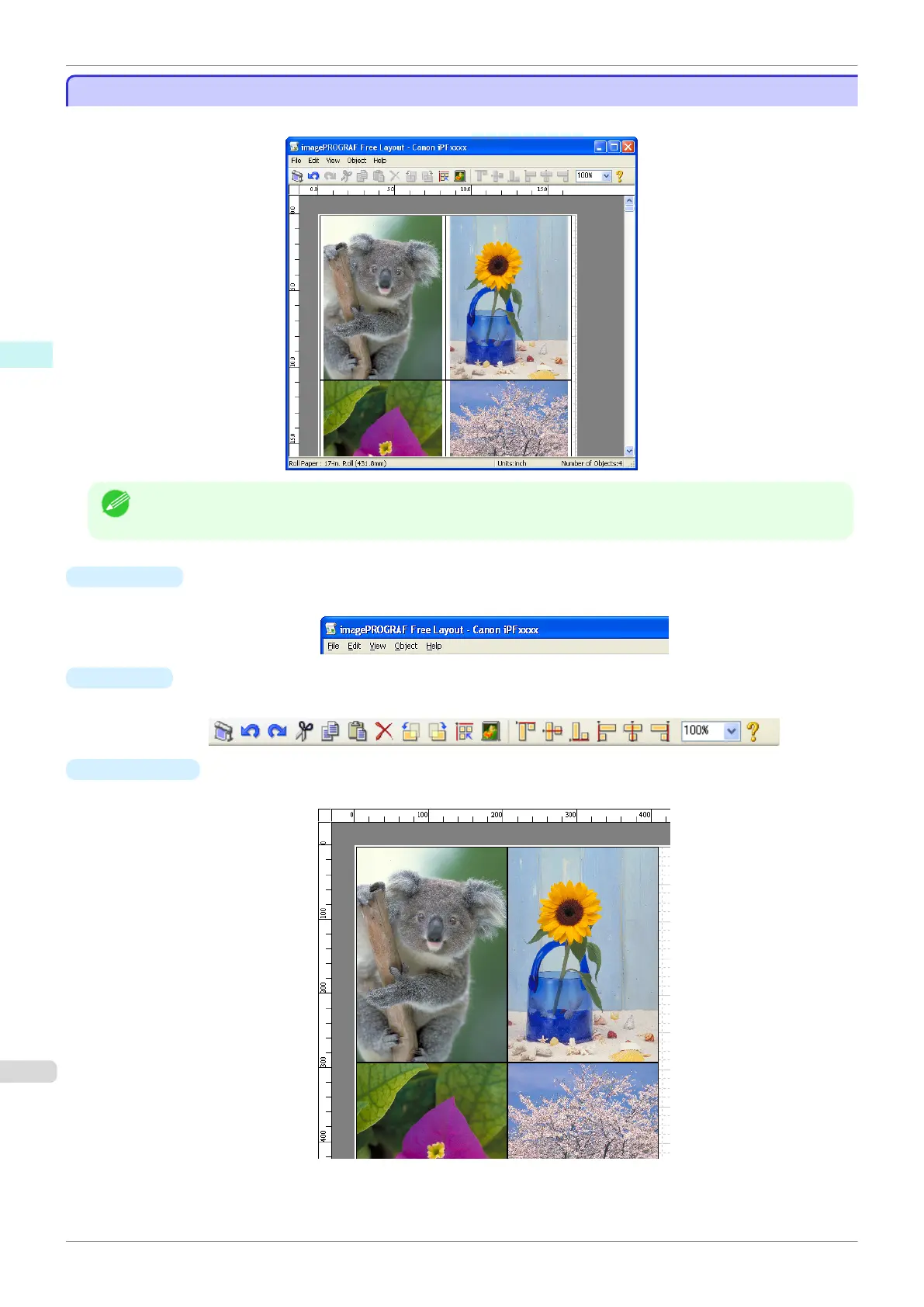

Free Layout Main Window
The Free Layout main window consists of the menu and tool bars, layout area and status bar.
Note
• You can use the View menu to show or hide the tool and status bar.
•
Menu Bar
This allows you to select menus required for operations.
•
Tool Bar
This allows you to select tool buttons required for major operations.
• Layout Area
This allows you to lay out objects and edit the object size and orientation.
Free Layout Main Window
iPF785
User's Guide
Windows Software Free Layout
184

Canon imageprograf IPF785 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Page description languages	GARO, HP-GL/2, HP-RTL
Media thickness	0.07 - 0.8 mm
Maximum print size	-
Media width (rolls)	254 - 914.4 mm
Media width (sheets)	203.2 - 914.4 mm
Maximum roll diameter	150 mm
Paper tray media types	Coated paper, Cut sheet, Pre-Printed, Roll
ISO A-series sizes (A0...A9)	A0, A1, A2, A3
ISO B-series sizes (B0...B9)	B1, B2, B4
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100/1000 Base-T/TX Mbit/s
Ethernet interface type	Gigabit Ethernet
Certification	RoHS
Product color	Black, Grey
Storage media	HDD
Internal memory	256 MB
Internal storage capacity	320 GB
Sound pressure level (printing)	48 dB
Compliance industry standards	IEEE 802.3ab, IEEE 802.3u, IEEE 802.3
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	877 mm
Width	1304 mm
Height	1062 mm
