Canon imageprograf IPF785 User Manual

a Manual Pocket
Store printer manuals in this pocket.
b Ethernet Port
Connect an Ethernet cable to this port.
c USB Port
Connect a USB cable to this port. The printer is compatible with Hi-Speed USB connections.
d Carrying Handles
When carrying the printer, have three people hold it by these handles on the back at both ends.
Grasp these parts on the left and right sides also when moving the printer with the stand attached.
e
Power Supply Connector
Connect the power cord to this connector.

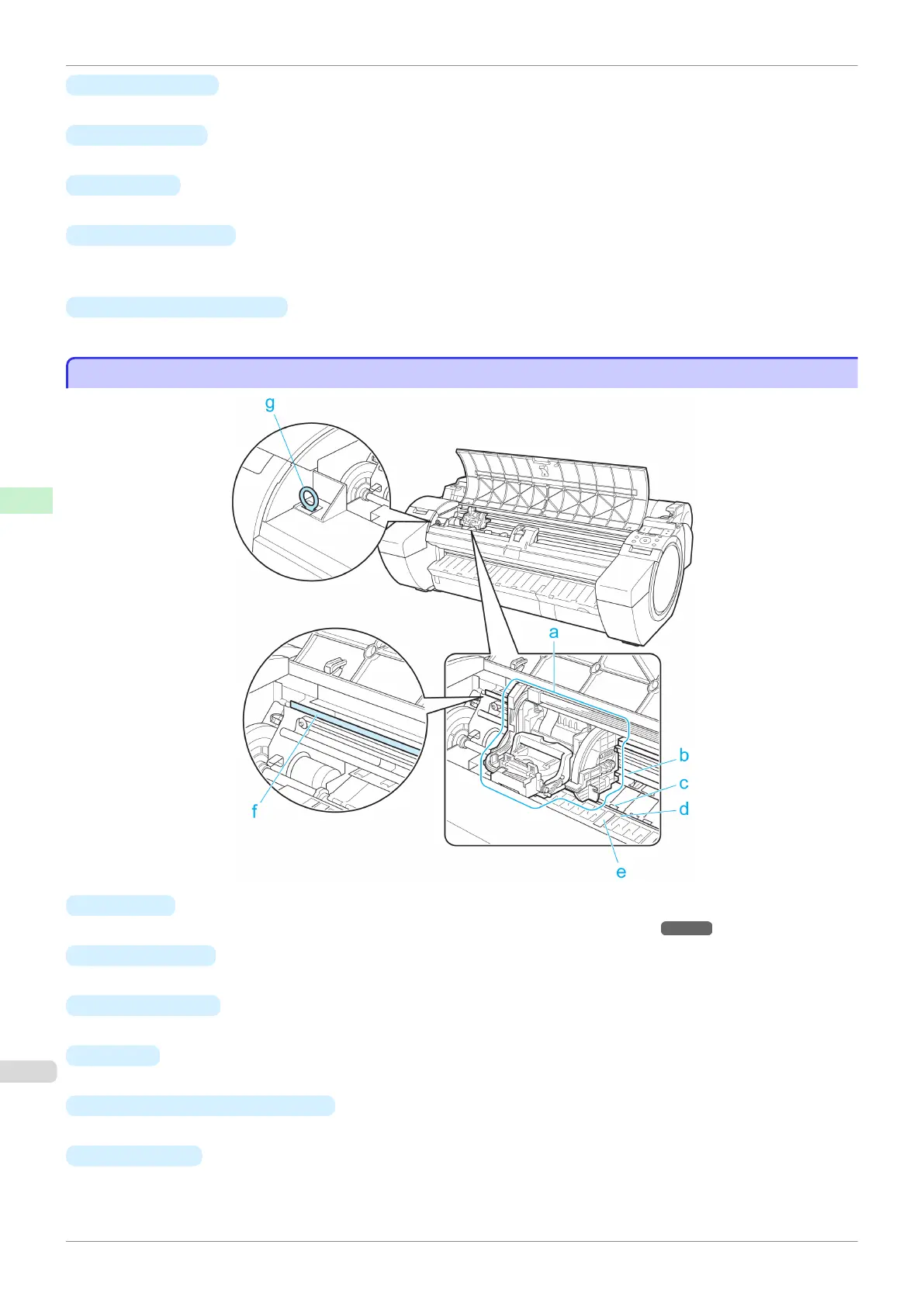

Top Cover (Inside)
Top Cover (Inside)
a
Carriage
Moves the Printhead. The carriage serves a key role in printing. (See "Carriage.") ➔ P.437
b Carriage Shaft
The Carriage slides along this shaft.
c Paper Retainer
Important in supplying the paper. This retainer holds paper as it is fed.
d
Platen
The Printhead moves across the platen to print. Vacuum holes on the platen hold paper in place.
e Borderless Printing Ink Grooves
For catching ink outside the edges of paper during borderless printing.
f
Linear Scale
The linear scale serves a key role in detecting the Carriage position. Be careful not to touch this part when
cleaning inside the Top Cover or clearing paper jams.
Top Cover (Inside)
iPF785
User's Guide
Printer Parts Printer parts
436

Canon imageprograf IPF785 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Page description languages	GARO, HP-GL/2, HP-RTL
Media thickness	0.07 - 0.8 mm
Maximum print size	-
Media width (rolls)	254 - 914.4 mm
Media width (sheets)	203.2 - 914.4 mm
Maximum roll diameter	150 mm
Paper tray media types	Coated paper, Cut sheet, Pre-Printed, Roll
ISO A-series sizes (A0...A9)	A0, A1, A2, A3
ISO B-series sizes (B0...B9)	B1, B2, B4
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100/1000 Base-T/TX Mbit/s
Ethernet interface type	Gigabit Ethernet
Certification	RoHS
Product color	Black, Grey
Storage media	HDD
Internal memory	256 MB
Internal storage capacity	320 GB
Sound pressure level (printing)	48 dB
Compliance industry standards	IEEE 802.3ab, IEEE 802.3u, IEEE 802.3
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	877 mm
Width	1304 mm
Height	1062 mm
