Canon iPF710 - Ink Passage System

Chapter 2
2-44
2.5.2 Ink passage system
0013-8100

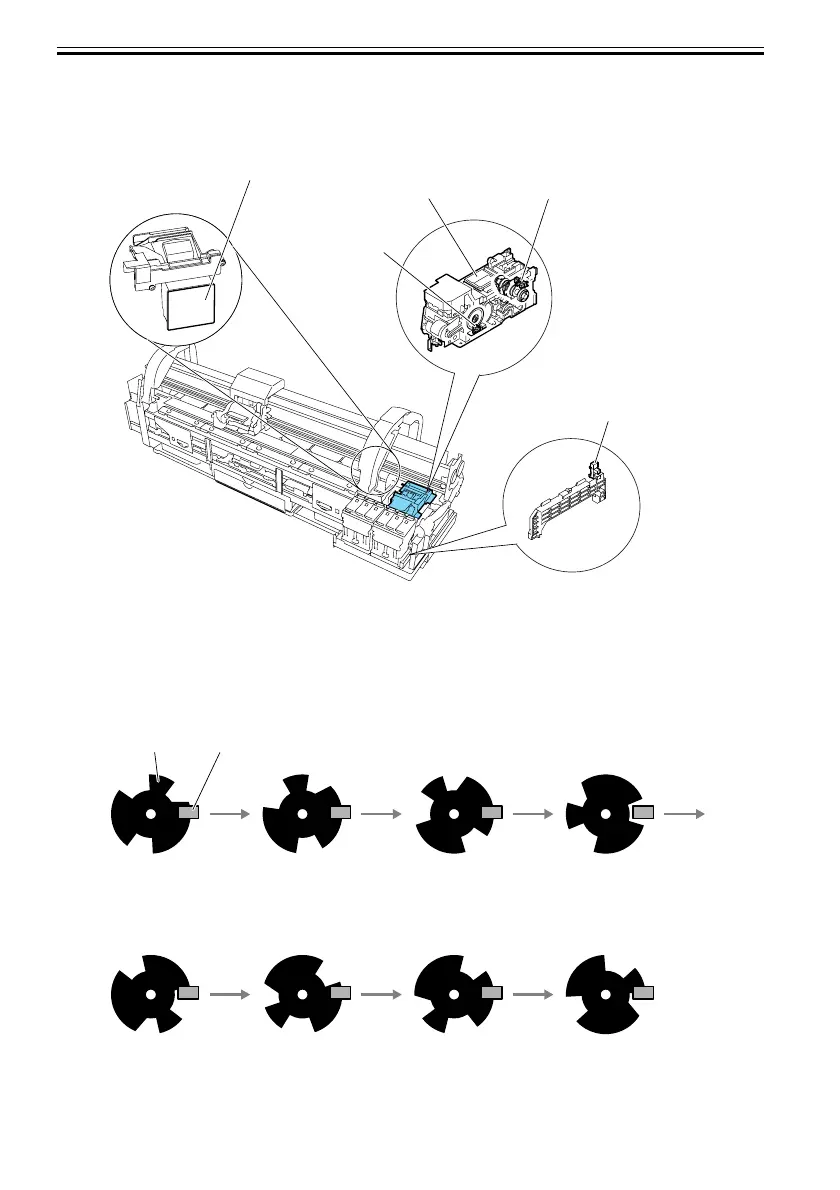

F-2-32
Pump cam sensor
As the cam rotates, it shields the sensor light of the photointerrupter-based pump cam sensor or allows it to be
transmitted. The status of the purge unit, such as capped, suction, and wiping, is detected in a combat ion of the
status of detection by the pump cam sensor and the control of purge motor rotation by the pump encoder sensor.
F-2-33
Purge unit
Pump encoder sensor
Pump cam sensor
Valve open/closed detection sensor
Head management sensor
- Carriage lock - Capping
- Suction
- Air passage valve open
- Idle suction
- Printing
- Suction during printing
- Wiping - Carriage lock
- Air passage
- Carriage move - Idle ejection
- Idle suction
Rotary flag
Sensor
