Canon iPF710 - Carriage Relay PCB

Chapter 6
6-12

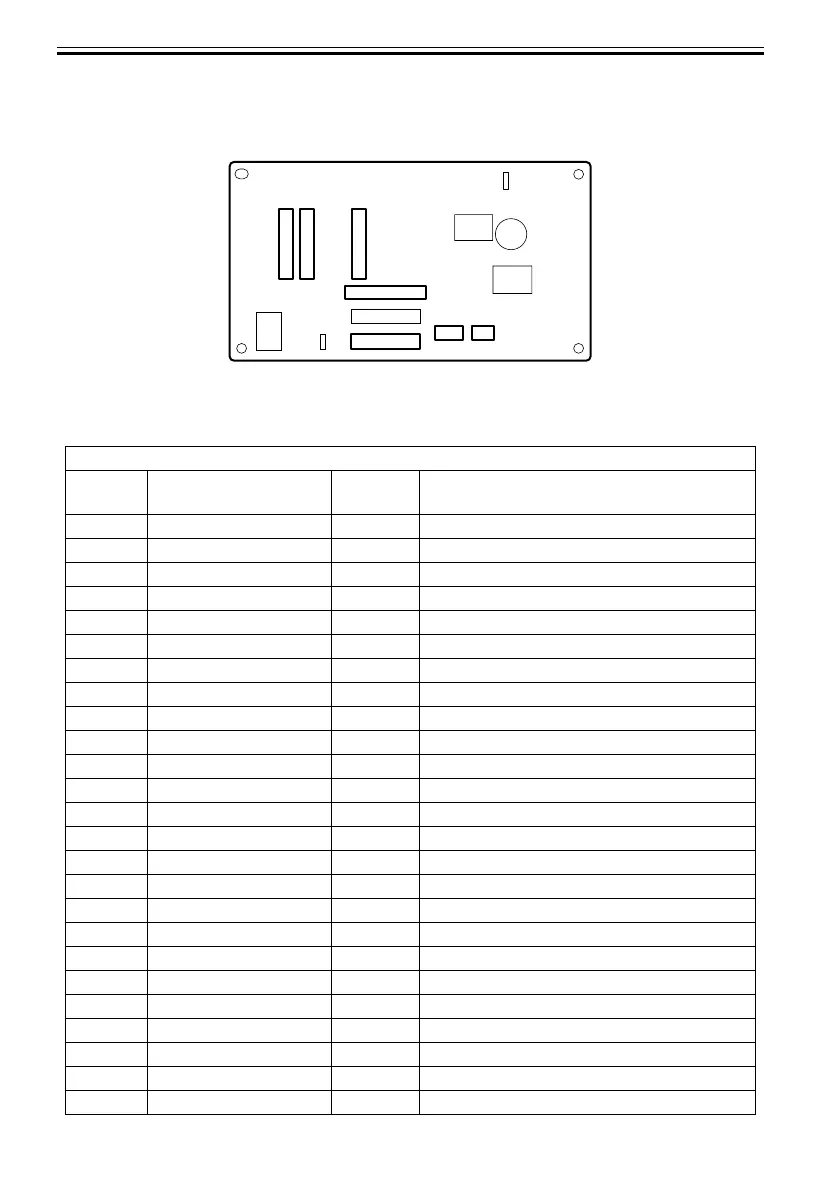

6.2.2 Carriage relay PCB
0017-5656
F-6-2
T-6-21
J101
Pin
Number
Signal name IN/OUT Function
1VMGND - GND
2VMGND - GND
3VMGND - GND
4VMGND - GND
5 VM OUT Power supply (+32V)
6 VM OUT Power supply (+32V)
7 VM OUT Power supply (+32V)
8 VM OUT Power supply (+32V)
9 VM OUT Power supply (+32V)
10 VM OUT Power supply (+32V)
11 VM OUT Power supply (+32V)
12 VM OUT Power supply (+32V)
13 SNS5V OUT Power supply (+5V)
14 SNS5V OUT Power supply (+5V)
15 GND - GND
16 +3.3V OUT Power supply (+3.3V)
17 +3.3V OUT Power supply (+3.3V)
18 GND - GND
19 VH_MONI2 IN VH control signal 2
20 VH_ENB OUT VH power supply ON/OFF signal
21 VH_MONI1 IN VH control signal 1
22 VMGND - GND
23 VMGND - GND
24 VMGND - GND
25 VMGND - GND
J702
J101 J103 J102
J601
J202J201
