Chapter 2
2-17
2.3.2 Ink Passage
2.3.2.1 Ink Passage
2.3.2.1.1 Overview of Ink Passage
0013-6730
The ink passage comprises ink tanks, a printhead, caps, a waste ink collector, ink tubes interconnecting the
mechanical components, and a suction pump that is driven to suck inks. It supplies, circulates, sucks and
otherwise handles inks.

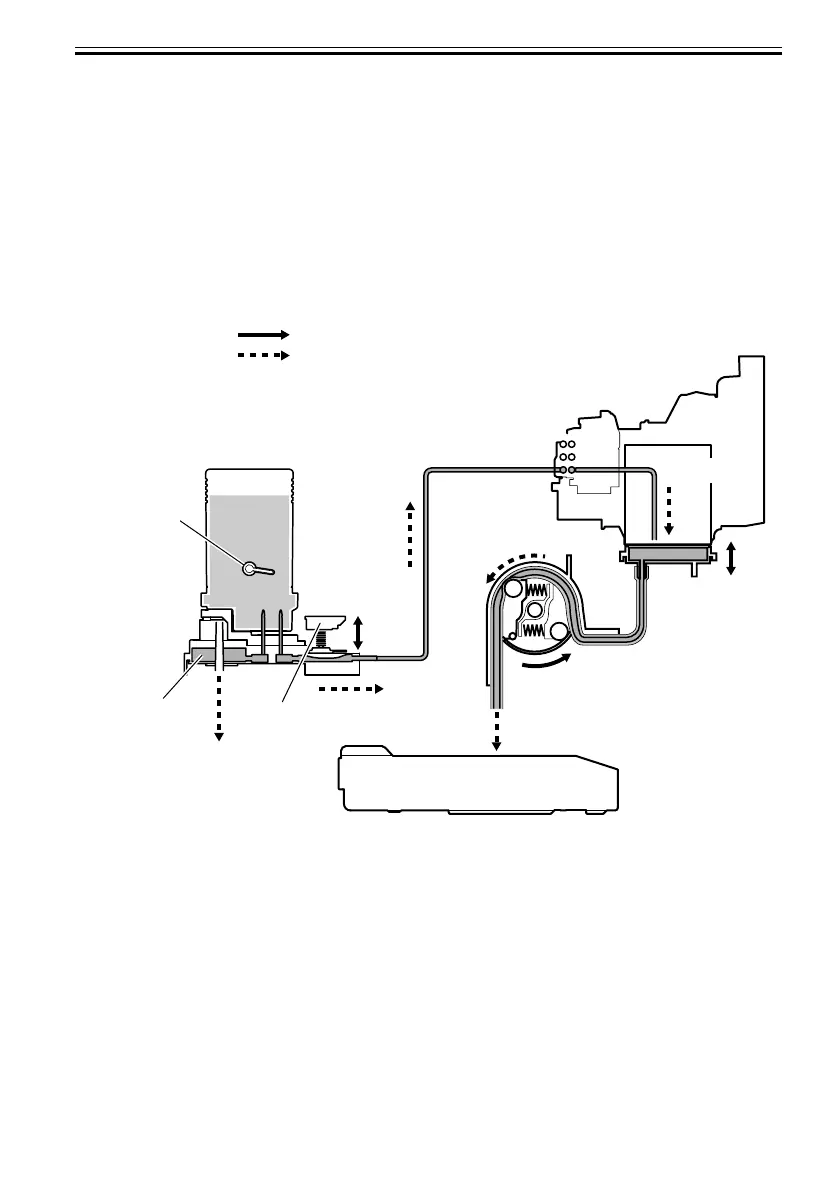

The ink passage (per color) is schematically shown below, along with the ink flow.
F-2-8
Cap
Suction pump
Printhead
Ink tank
Sub buffer
Ink supply valve
Agitation plate
Mechanical Drive Unit
Ink or air flow
Maintenance cartridge
Joint
Carriage unit
