Chapter 4
4-10
i. Paper release lever

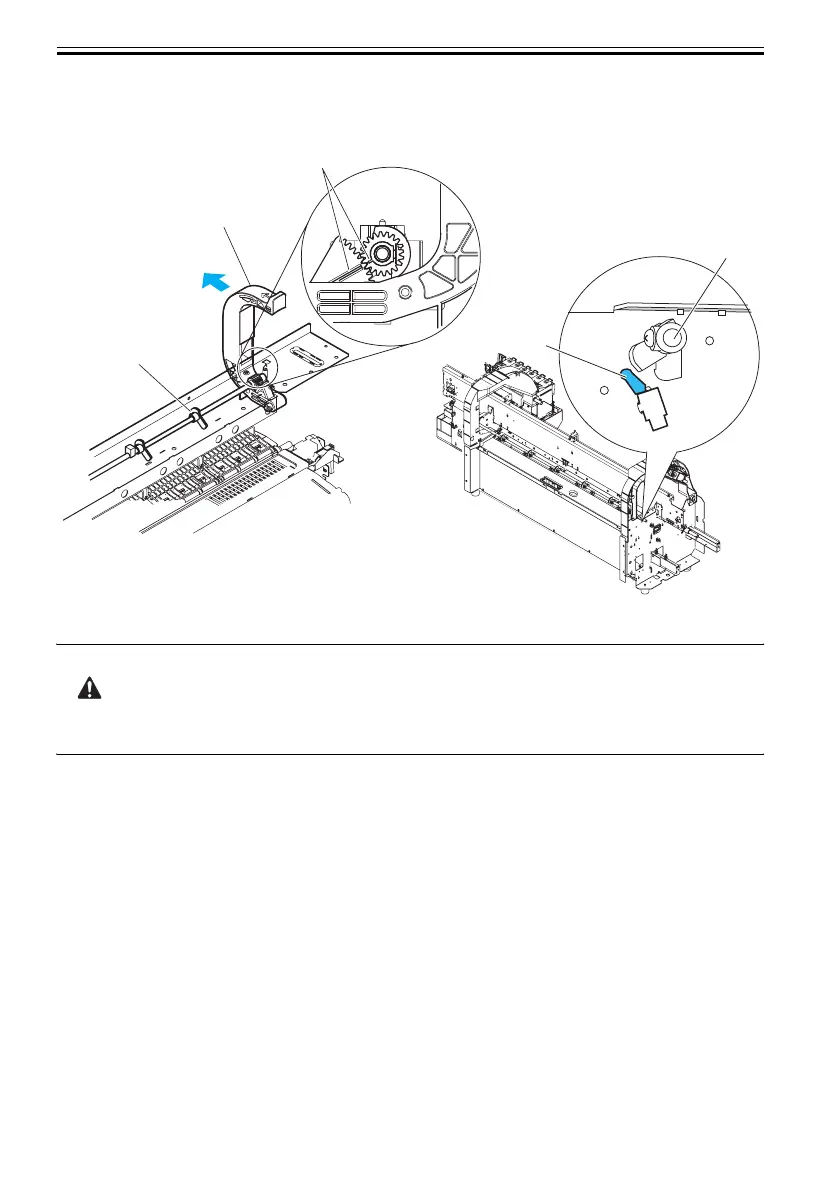

To remove paper release lever [1], do so with the pinch roller pressurized. In assembling paper release lever
[1] into position, align the gear of paper release lever [1] with the mark on the receiving gear (phase) [2].
F-4-14
If pinch roller cam [3] has been overrun when paper release lever [1] is installed, remove cam sensor [4] and
replace pinch roller cam [3] in original position.
If pinch roller cam [3] is replaced with cam sensor [4] in position, damage to cam sensor [4] could result.
[3]
[4]
[2]
[1]
[3]
