Canon iPF710 - Page 235

2

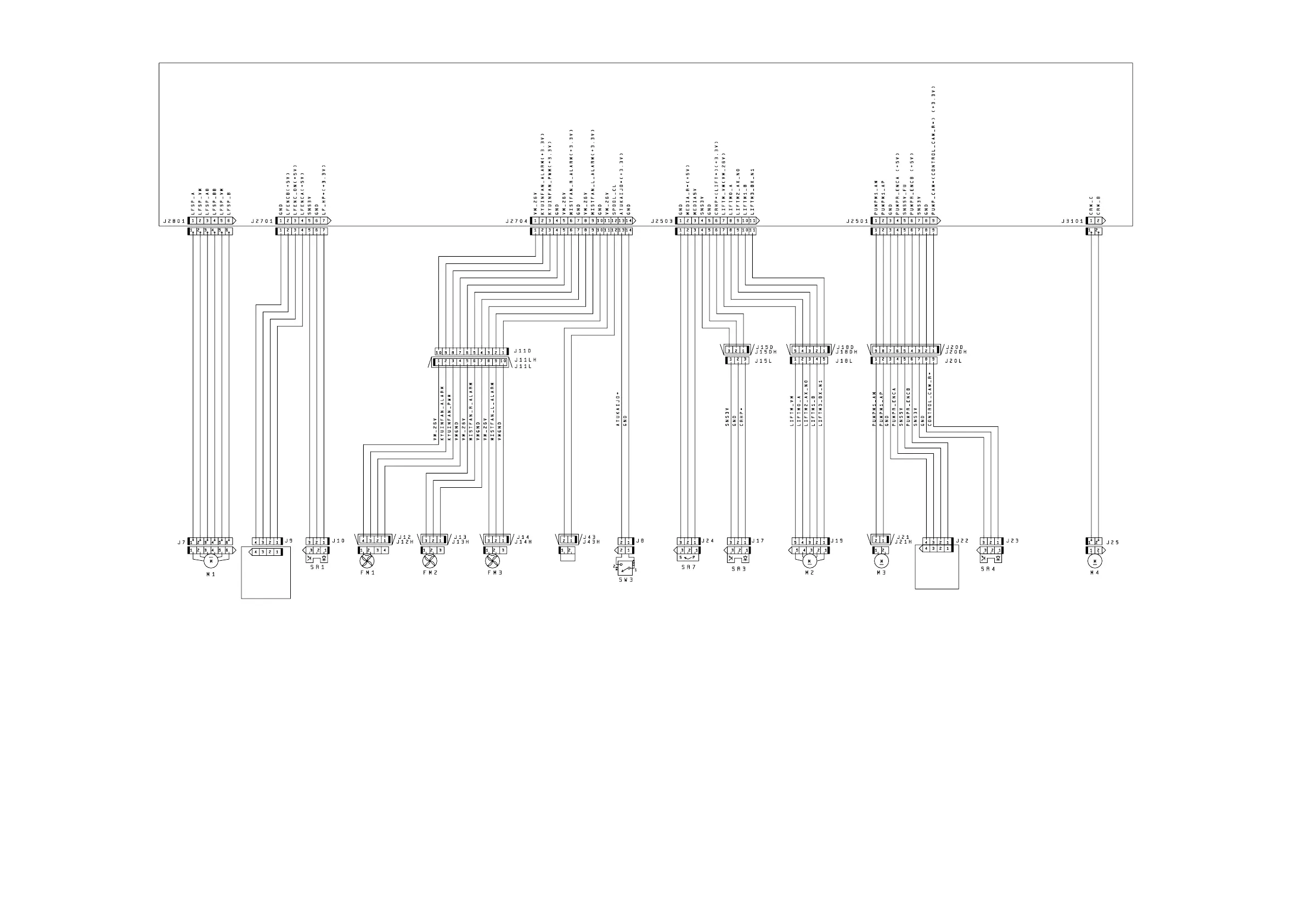

General Circuit Diagram (2/4)
F-1-2
Main controller PCB (2/3)
Feed motor
Feed roller
encoder
sensor
Feed roller
HP sensor
Suction fan Mist fan (R) Mist fan (L)
Roll media
rewinding clutch
Pressure
release switch
Media
sensor
Lift cam
sensor
Lift motor
Purge
motor
Pump
encoder
sensor
Pump cam
sensor
Carriage motor
CL1
CL
