Basic operation of the paper loading sequence
1) Light intensity
2) Detection of leading edge of media
3) Paper width detection sensor
Detects the left and right edges of paper.
4) Barcode read
*This function is operable only if the remaining roll media detection sensor is turned on.
5) Ditection of leading skew of media.
6) Ditection of leading right edge of media.
7) Ditection of precut
*When "precut" is only an automatic cutting, it does.
8) Precut of media
*In the following cases, the form point is cut.
a. When "Up-to-date precut" is a compulsion cutting.
b. When necessary having of cutting is judged from an automatic cutting, "Up-to-
date precut" :.
c. When "Roll paper remainder amount detection" is on, and the bar code is detected (Compulsorily cut
it regardless of the setting of "Up-to-date precut").
9) Detection of leading edge of media.
Basic operations of the cut media loading sequence
1) Paper trailing edge detection sensor
2) Light intensity
3) Detection of paper width
4) Detection of skewed movement of paper
MEMO:
When offline, press the [ ] key to discharge the media and the [ ] key to rewind the media.

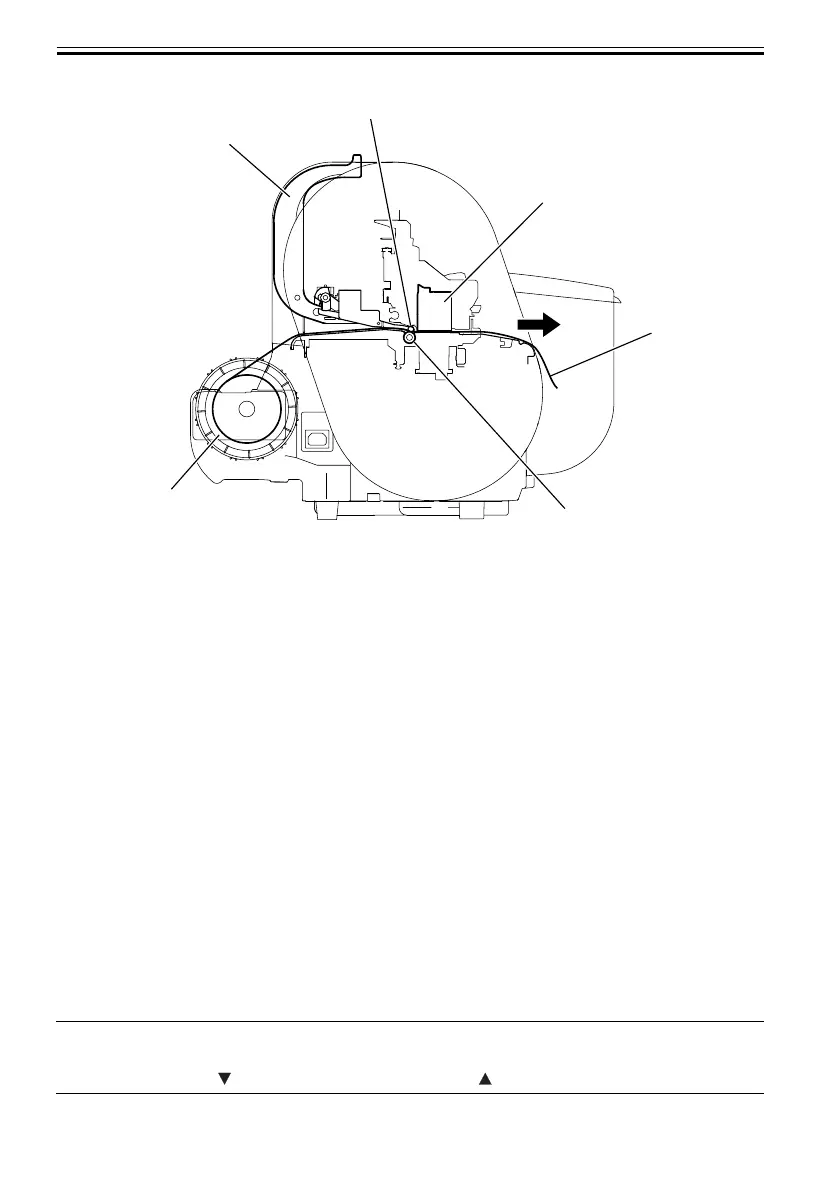

Paper release lever
Pinch roller
Printhead
Media
Roll hlder
Feed roller
