(2) Remove the two screws (a), and detach the right cover.
(3) Remove the two screws (b), and detach the upper left cover.
(4) Remove the two screws (c); then, while freeing the claw, detach the left cover.

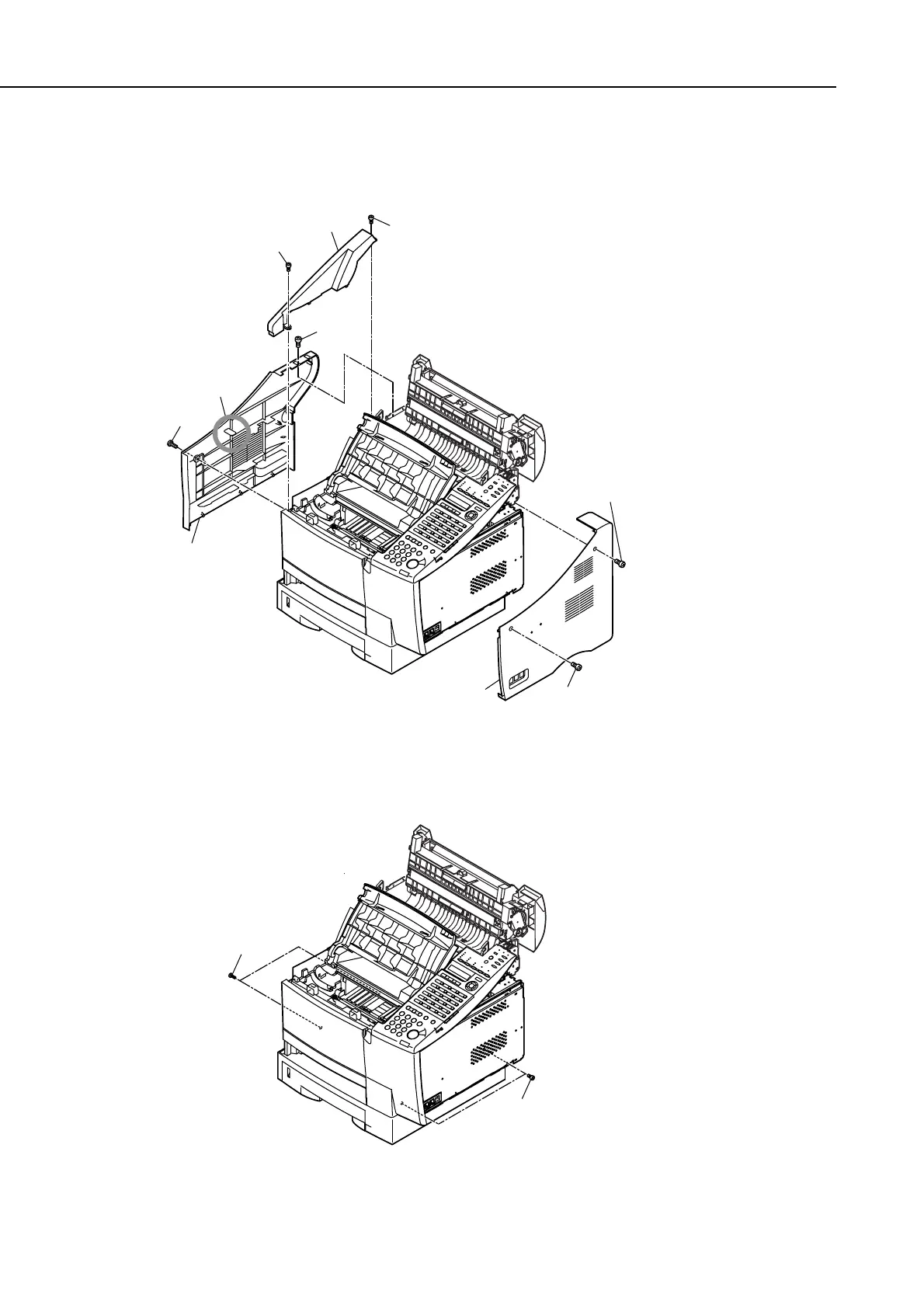

Figure 5-53 Cassette Feeder Installation 2
(5) Fasten the main unit and the cassette feeder with the four screws (d) included in the
package.
Figure 5-54 Cassette Feeder Installation 3
b
Upper left cover
b
c
claw
c
Left cover
a
a
Right cover
d
d
