LASER CLASS 730i/720i/710 Chapter 5: Appendix
5-47
b-3) Attachment to the main unit

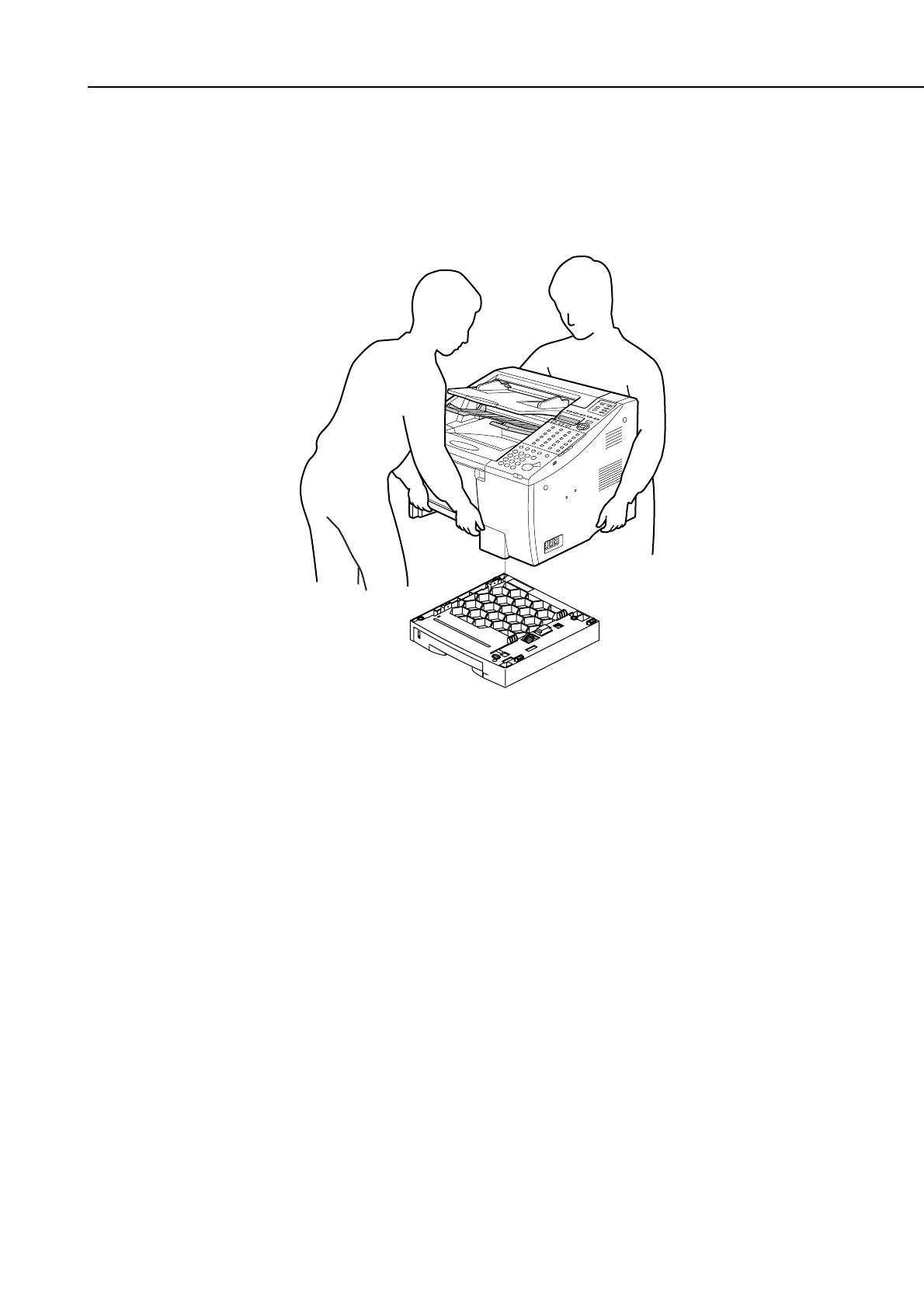

(1) While working in a group of two, lift the main fax machine, with one standing at the
front and the other, at the rear. While making sure that the front/rear and left sides are
flush, place the main fax machine.
Figure 5-52 Cassette Feeder Installation 1
To Next Page
