LASER CLASS 730i/720i/710 Chapter 5: Appendix
5-57

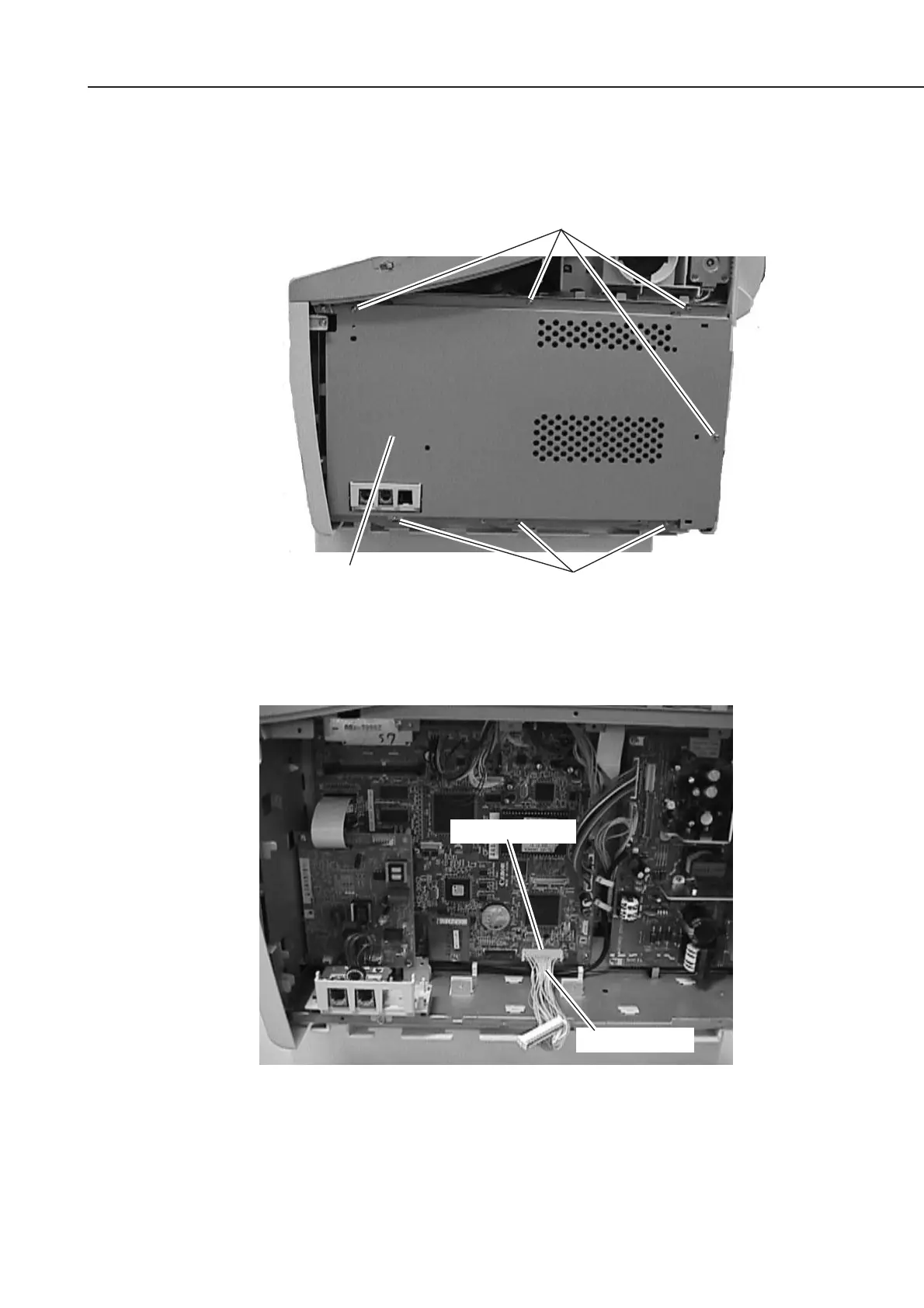

(5) Remove the seven screws and remove the shield plate. (eight screws for LASER
CLASS 730i/720i)
Figure 5-63 Preparation for Installation 3
(6) Connect the 40-pin cable to the connector J33 of the SCNT board.
Figure 5-64 Preparation for Installation 4
Screws
Screws
Shield plate
Connector J33
Cable (40-pin)
