(7) Keep the three clamps open.
(8) Connect the 6-pin cable to the connector J101 of the dual-line unit; connect the 14-pin
cable to the connector J104; then, connect the flat cable to the connector J102. Be sure
that the side with the shorter bend of the flat cable is connected to the connector J102

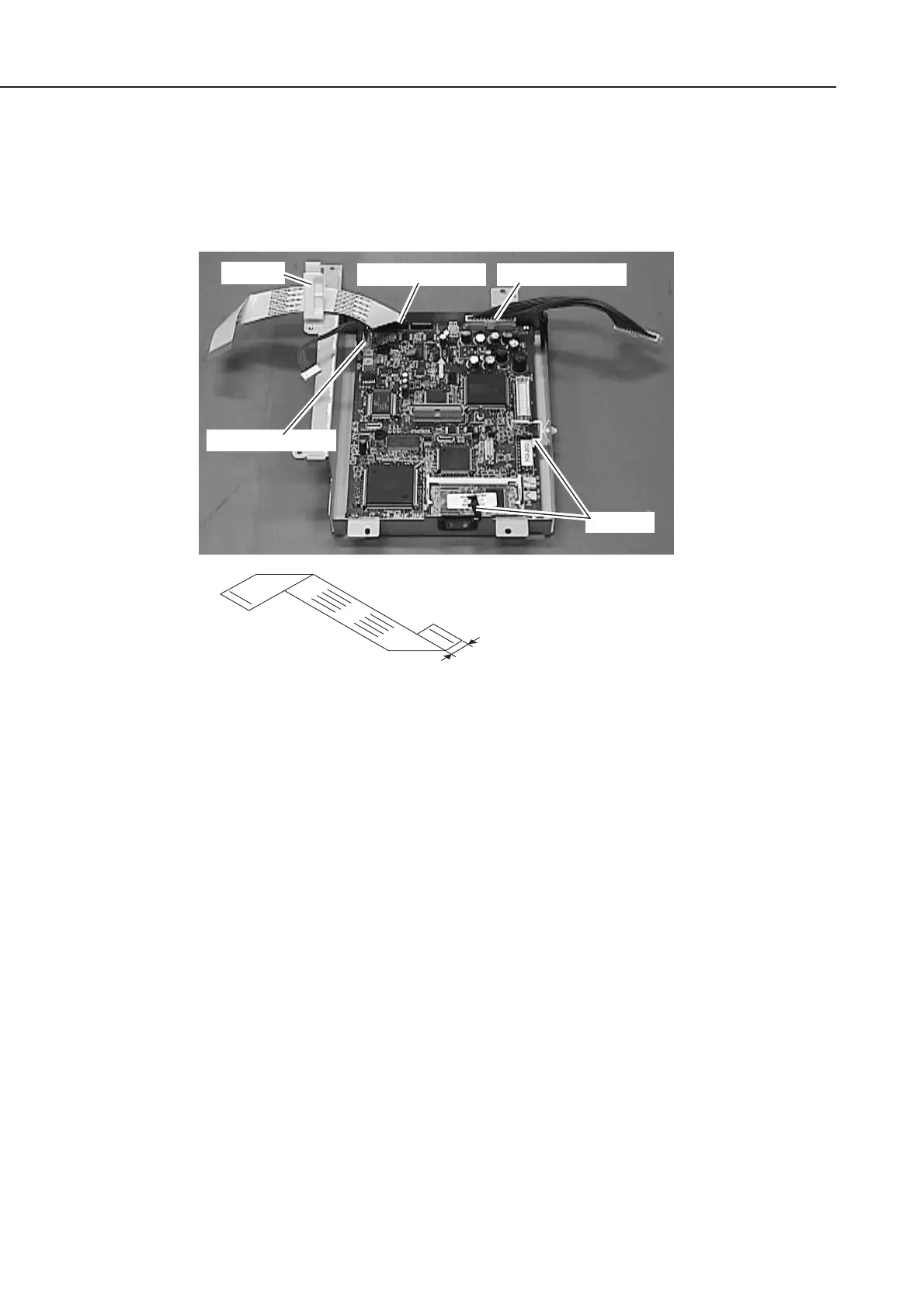

Figure 5-65 Preparation for Installation 5
Clamps
Short bend
(to Connector J102)
Connector J101
Connector J102
Connector J104
Clamp
