LASER CLASS 730i/720i/710 Chapter 5: Appendix
5-77
b) Installation
b-1) Precautions
Be sure to prepare the Printer Kit III, as the kit by itself cannot be installed to the main
unit.
The kit cannot be installed if the Printer Kit III has been already attached to the main unit.
In this case, remove the printer Kit III once, and attach again with the kit.
The kit cannot be installed if the Dual-line Upgrade Kit III has been already attached to the
main unit. In this case, remove the Dual-line Upgrade Kit III once, and attach again with
this kit.
b-2) Unpacking
Check that the box contains the NIC board, USB board, cable (5-pin), cable clip, spacer,
CD-ROM, send guide and three screws.
b-3) Preparation
Perform the steps below before attaching the kit.
(1) Disconnect the modular cord (telephone line) from the fax.
(2) Disconnect the power cord of the fax unit at the power source.
Wait at least 10 minutes for the power supply unit to cool before continuing the work.
(3) Remove the two screws and remove the right cover.

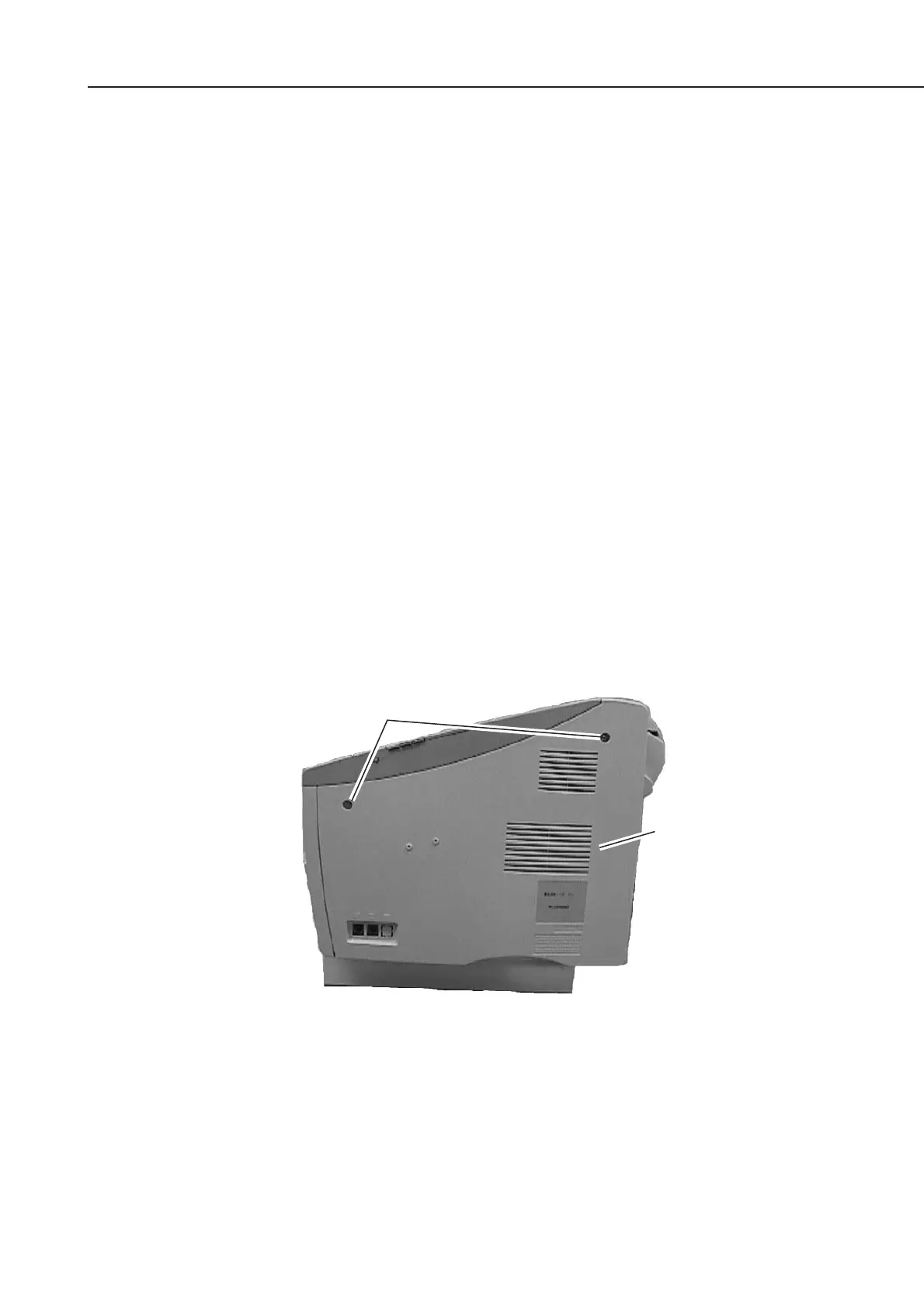

Figure 5-87 Preparation for Installation 1
Screws
Right cover
To Next Page
