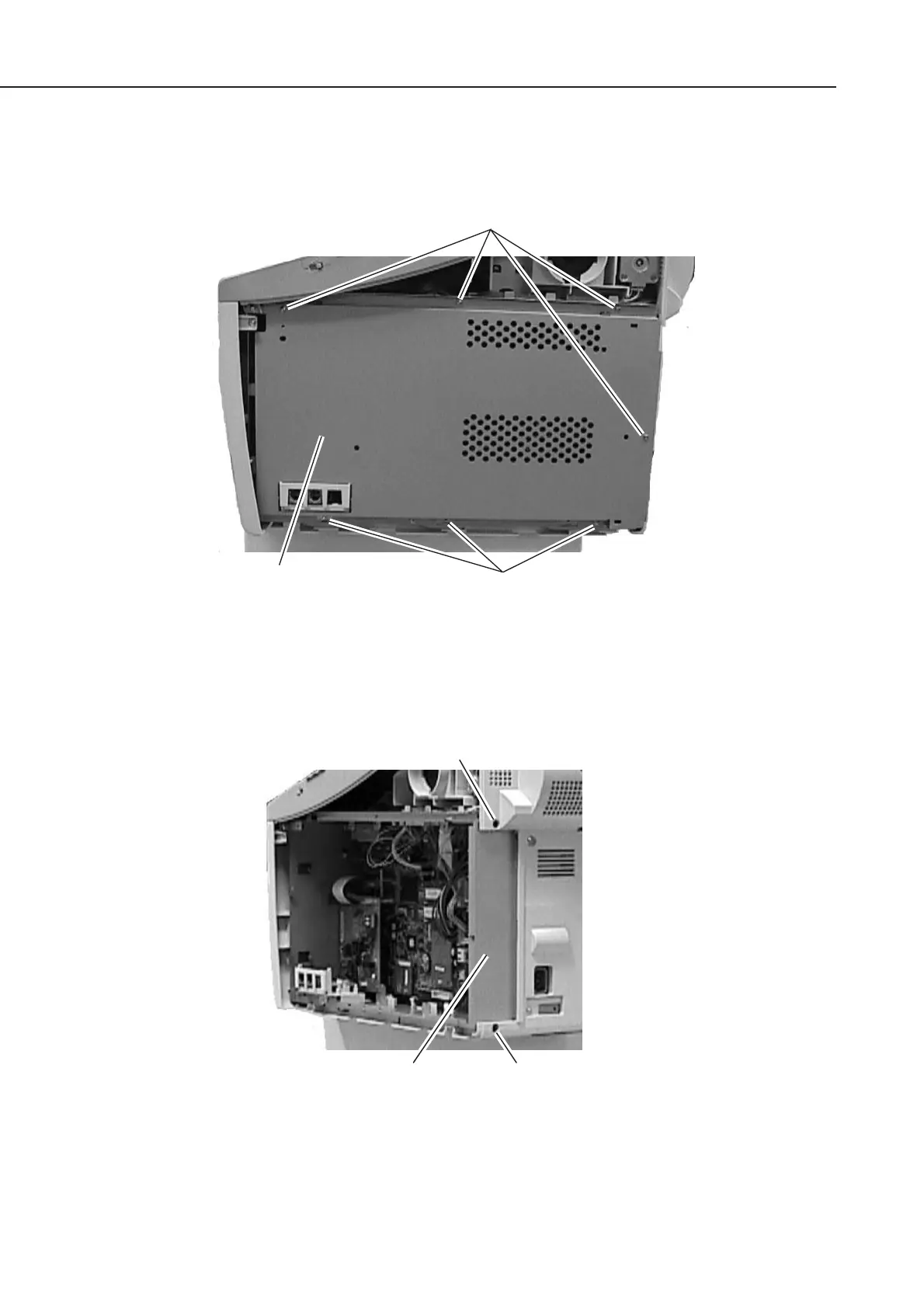

(5) Remove the seven screws and remove the shield plate.
Figure 5-88 Preparation for Installation 2
(6) Remove the two screws and remove the rear plate.
Figure 5-89 Preparation for Installation 3
Screws
Screws
Shield plate
ScrewRear plate
Screw
