LASER CLASS 730i/720i/710 Chapter 5: Appendix
5-80
(12) Connect the 5-pin cable to the connector J3 and J9 of the SCNT board
(13) Attach the cable clip to lower inside the shield case to fix the 5-pin cable.
(14) Inset the spacer in the hole of the SCNT board.

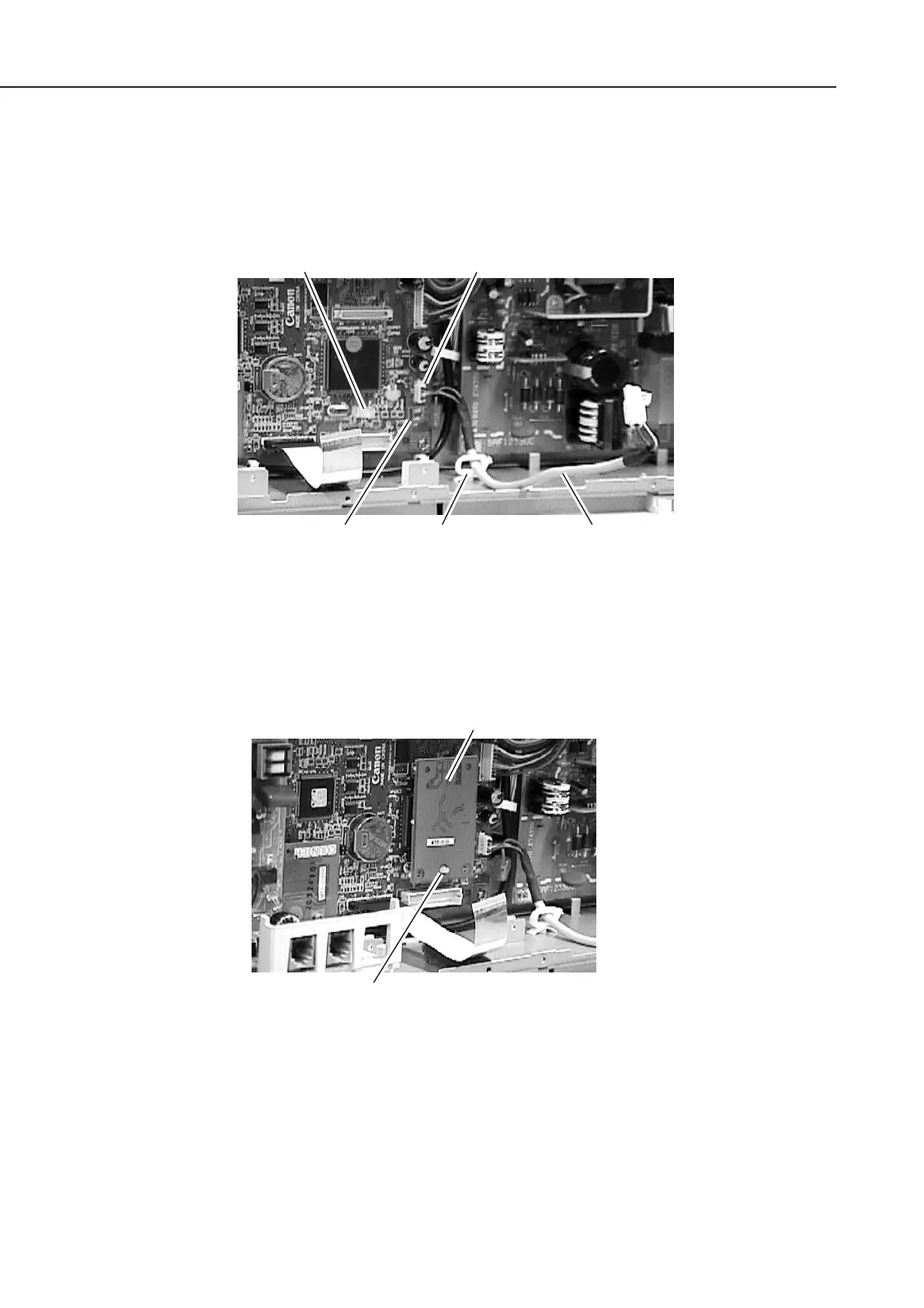

Figure 5-92 Preparation for Installation 6
(15) Inset the USB board in the connector J8 of the SCNT board, and fix it with the spacer.
Figure 5-93 Preparation for Installation 7
Connector J9 Cable clip
Spacer Connector J3
Cable (5-pin)
Spacer
USB board
