LASER CLASS 730i/720i/710 Chapter 2: Technical Reference
2-3
12.PCL board that interfaces with the local printer
(Option for LASER CLASS 710)
• Develops print data written in PCL.
13.NIC board (option) that interfaces with the network printer
(Option for LASER CLASS 710)
• Connects the host machine with a network.
14.USB board (option) that connects the the SCNT board
(Option for LASER CLASS 710)
• NIC board communications control

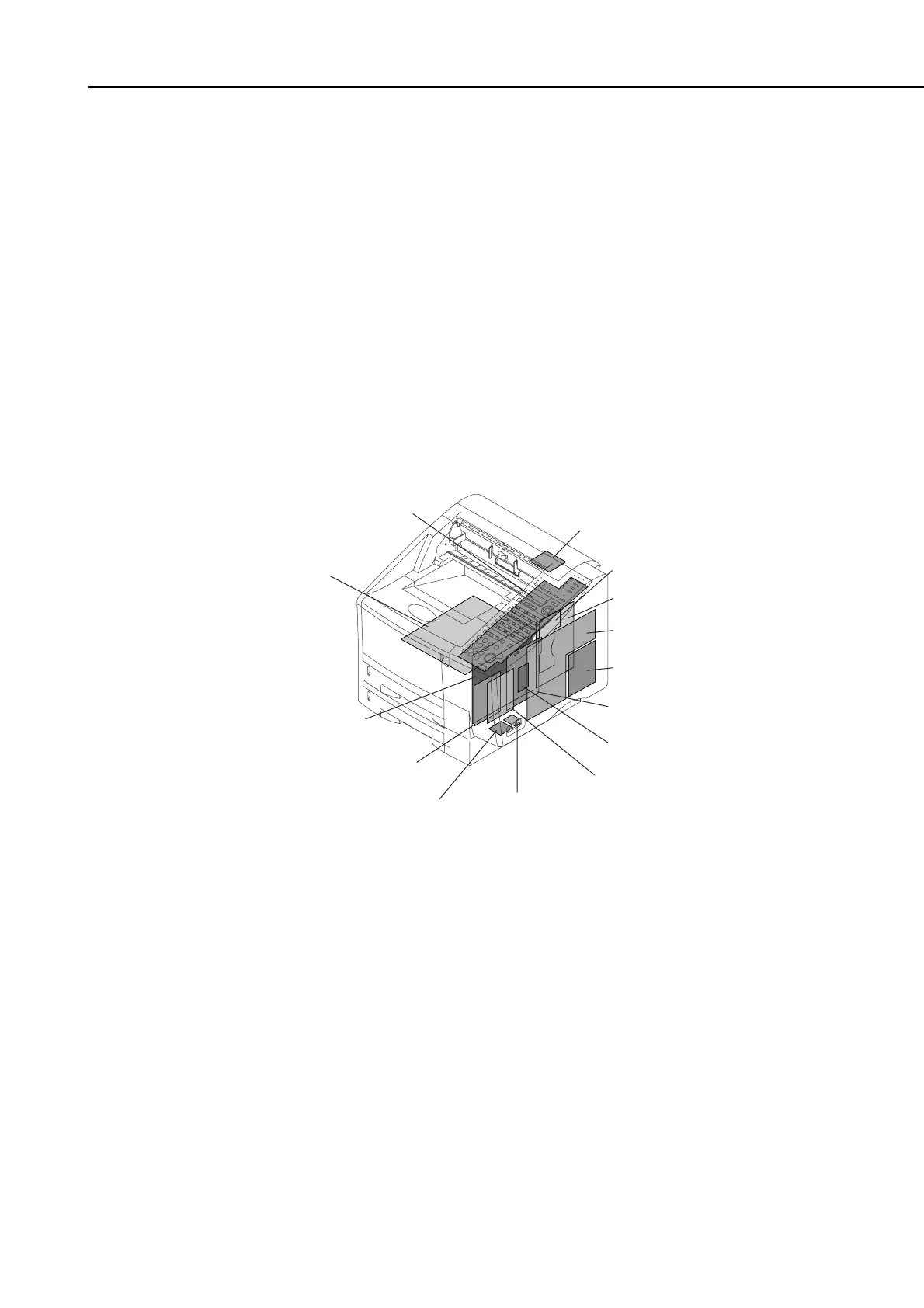

Figure 2-2 Electrical System Layout
Sensor board
EPU board
ECU board
Power supply unit
SCNT board
OPCNT board
NCU board
Mojular board
NCU board
(for Dual-line)
G3 FAX board
USB board
PCL board
NIC board
Mojular board
(for Dual-line)
