LASER CLASS 730i/720i/710 Chapter 2: Technical Reference
2-4
As many as 13 sensors are used to monitor the movement of original and recording paper or to
detect the presence/absence of toner.

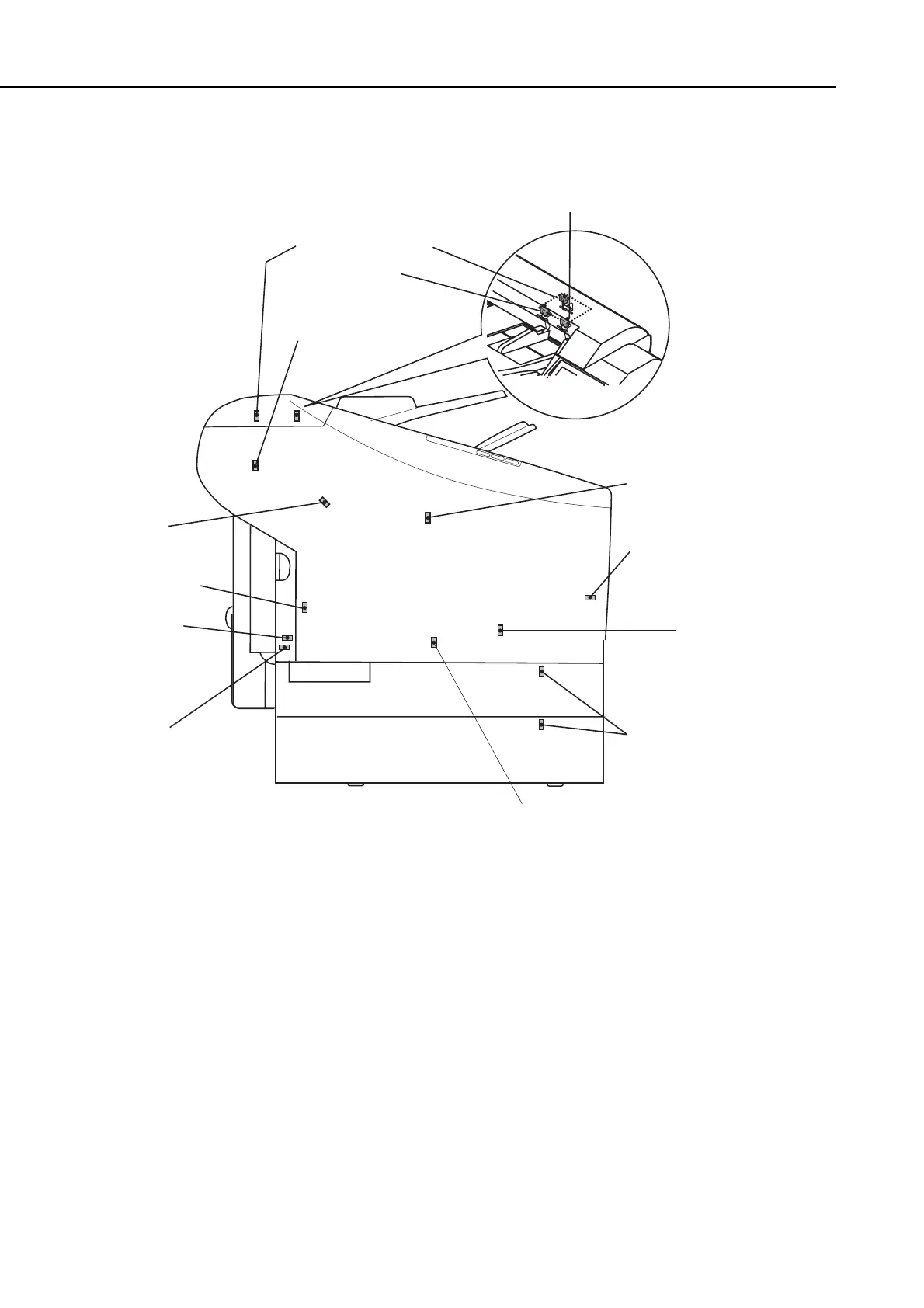

Figure 2-3 Sensor Layout1
Printer cover sensor
Document edge sensor
MP tray papaer sensor
Cassette paper sensor
Document width sensor
Document sensor
Document feed sensor
Tray full sensor
Page top sensor
Duplex paper sensor
Paper eject sensor
Face-up sensor
Reverse paper sensor
