LASER CLASS 730i/720i/710 Chapter 3: Assembly and Disassembly
3-20

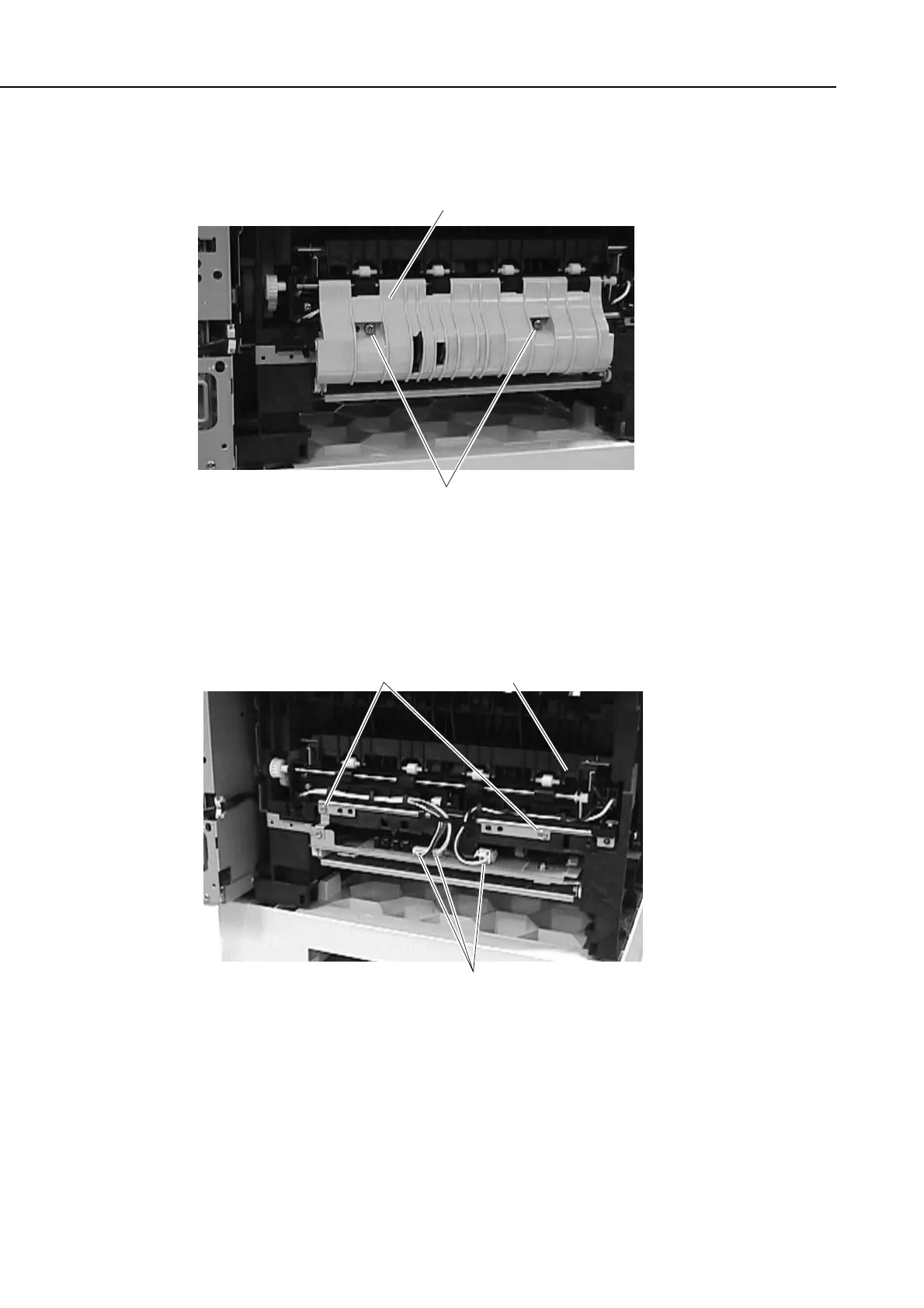

(7) Remove the 2 screws (f), and detach the reverse guide ass’y.
Figure 3-29 Fixing Ass’y 5
(8) Remove the 3 cables (g).
(9) Remove the 2 screws (h), and pull out the fixing ass’y to detach.
Figure 3-30 Fixing Ass’y 6
f
Reverse guide ass'y
h
g
Fixing ass'y
