LASER CLASS 730i/720i/710 Chapter 3: Assembly and Disassembly
3-19

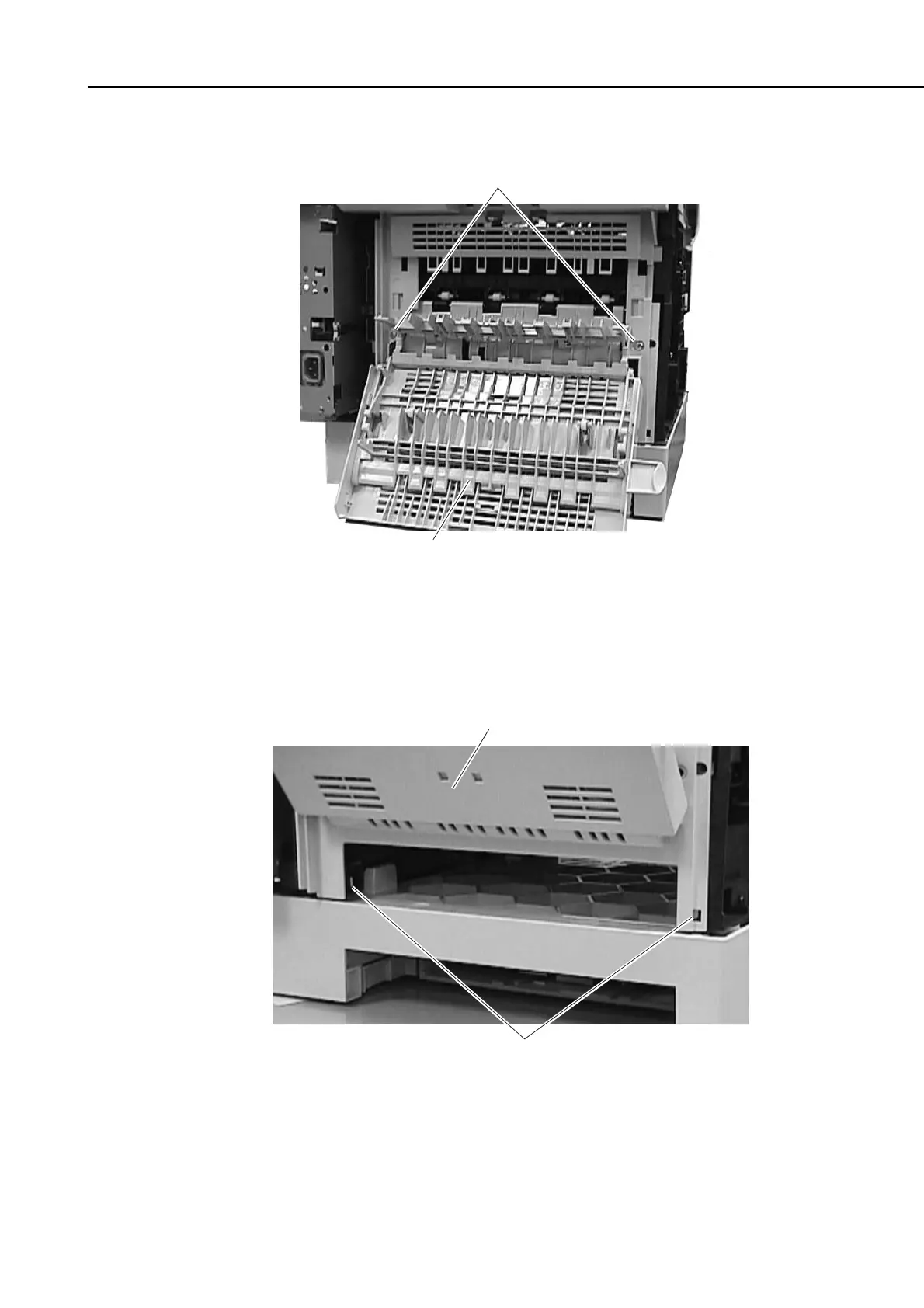

(5) Open the rear cover, and remove the 2 screws (e).
Figure 3-27 Fixing Ass’y 3
(6) Close the rear cover; then, while freeing the left and right claws at the bottom, detach
the rear cover ass’y.
Figure 3-28 Fixing Ass’y 4
Claws
Rear cover ass'y
To Next Page
