LASER CLASS 730i/720i/710 Chapter 3: Assembly and Disassembly
3-18
2.1.7 Fixing ass’y

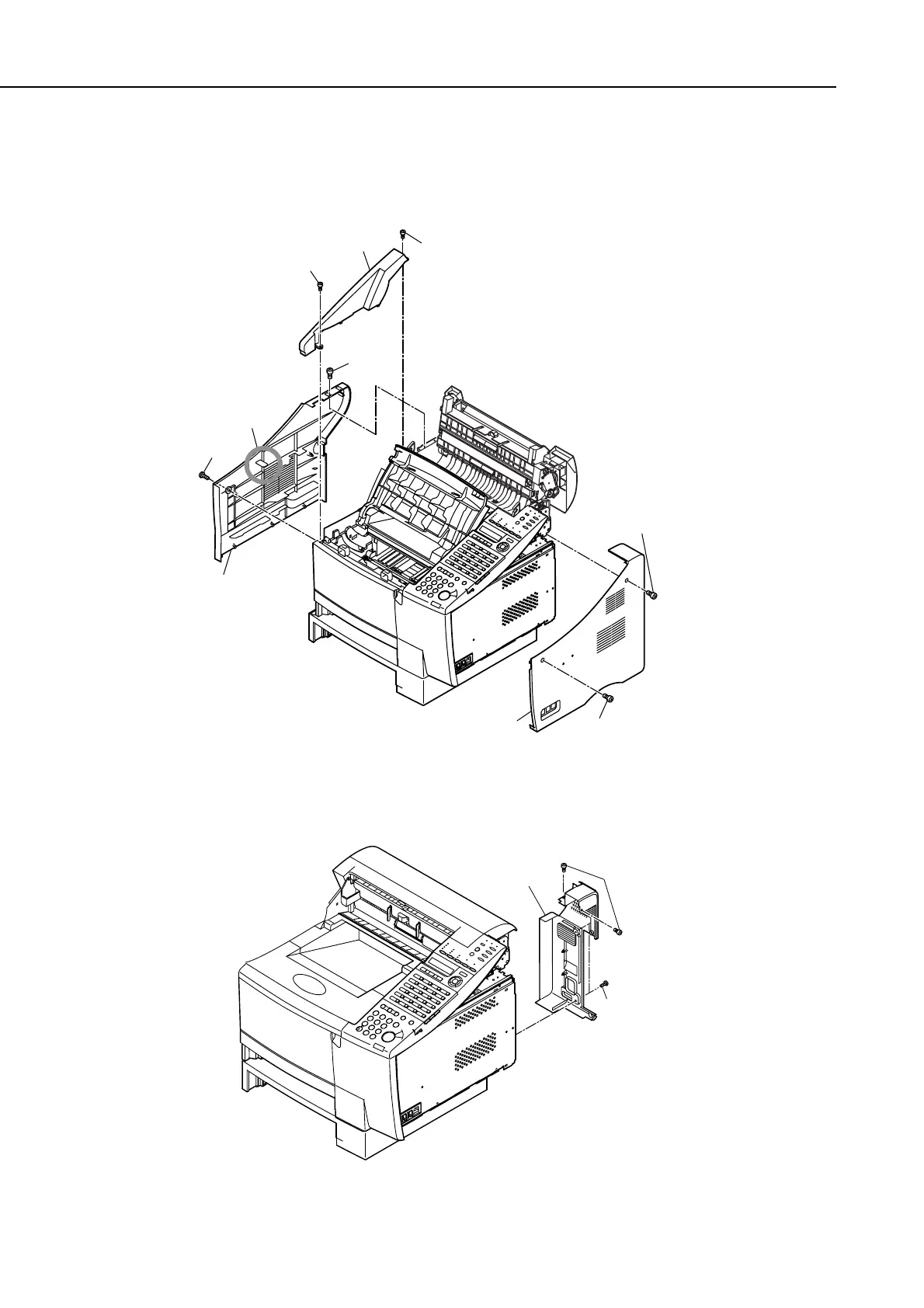

(1) Remove the 2 screws (a), and detach the right cover.
(2) Remove the 2 screws (b), and detach the upper left cover.
(3) Remove the 2 screws (c); then, while freeing the claw, detach the left cover.
Figure 3-25 Fixing Ass’y 1
(4) Remove the 4 screws (d), and detach the rear right cover.
Figure 3-26 Fixing Ass’y 2
b
Upper left cover
b
c
claw
c
Left cover
a
a
Right cover
Rear right cover
d
d
