LASER CLASS 730i/720i/710 Chapter 3: Assembly and Disassembly
3-17

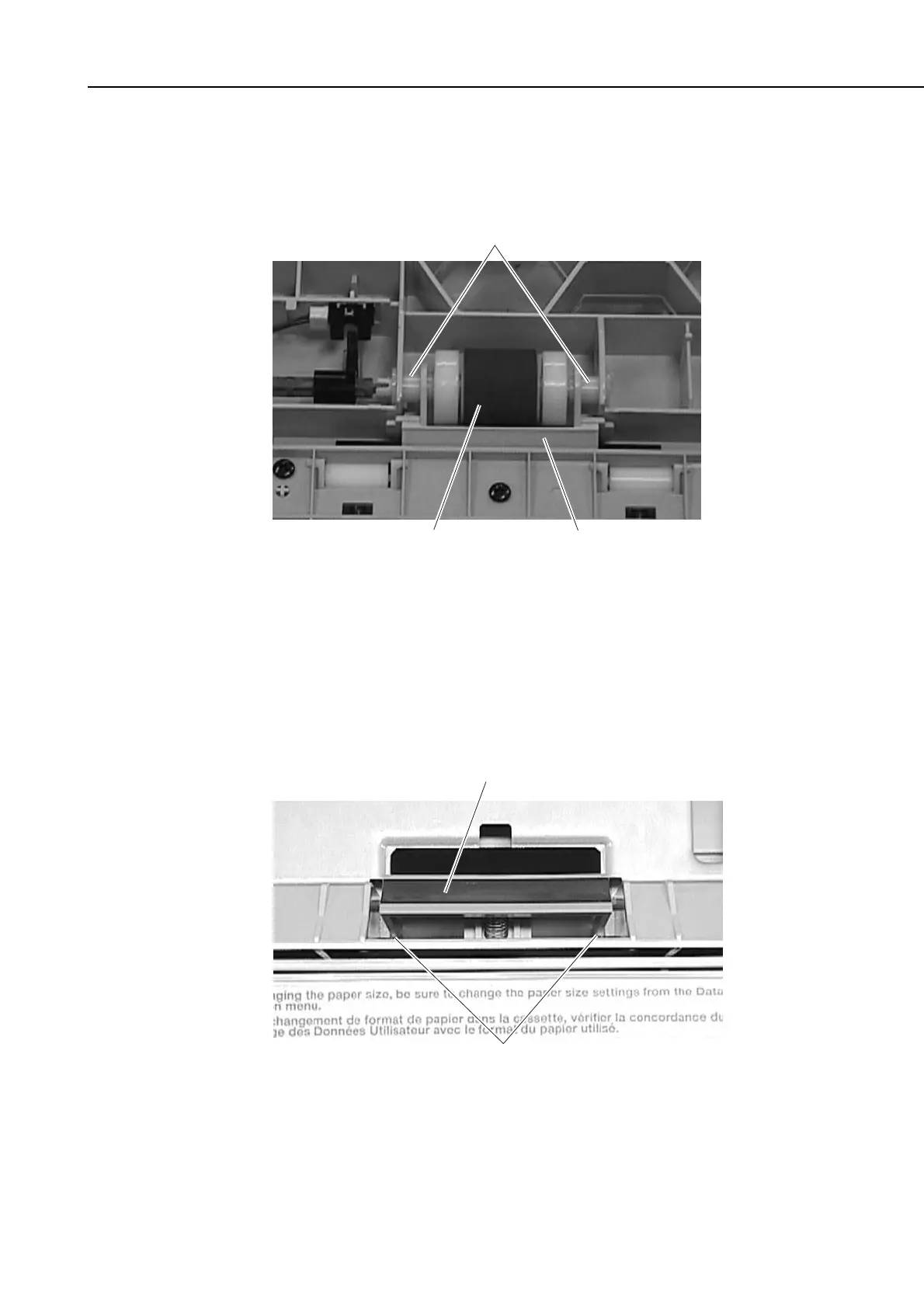

(6) Remove the 2 bushings by moving them toward the outside, and detach the roller
guide.
(7) While shifting the pick-up roller to the left and right, detach it.
Figure 3-23 Paper Pick-up Roller (feeder) 4
2.1.6 Separation pad (Cassette)
(1) Take out the recording paper from the recording paper cassette.
(2) While pushing the left and right claws of the separation pad with a precision
screwdriver, detach the pad by pulling it upward.
Figure 3-24 Separation pad (cassette)
Pick-up roller Roller guide
Bushings
Separation pad
Claw
To Next Page
