LASER CLASS 730i/720i/710 Chapter 3: Assembly and Disassembly
3-16

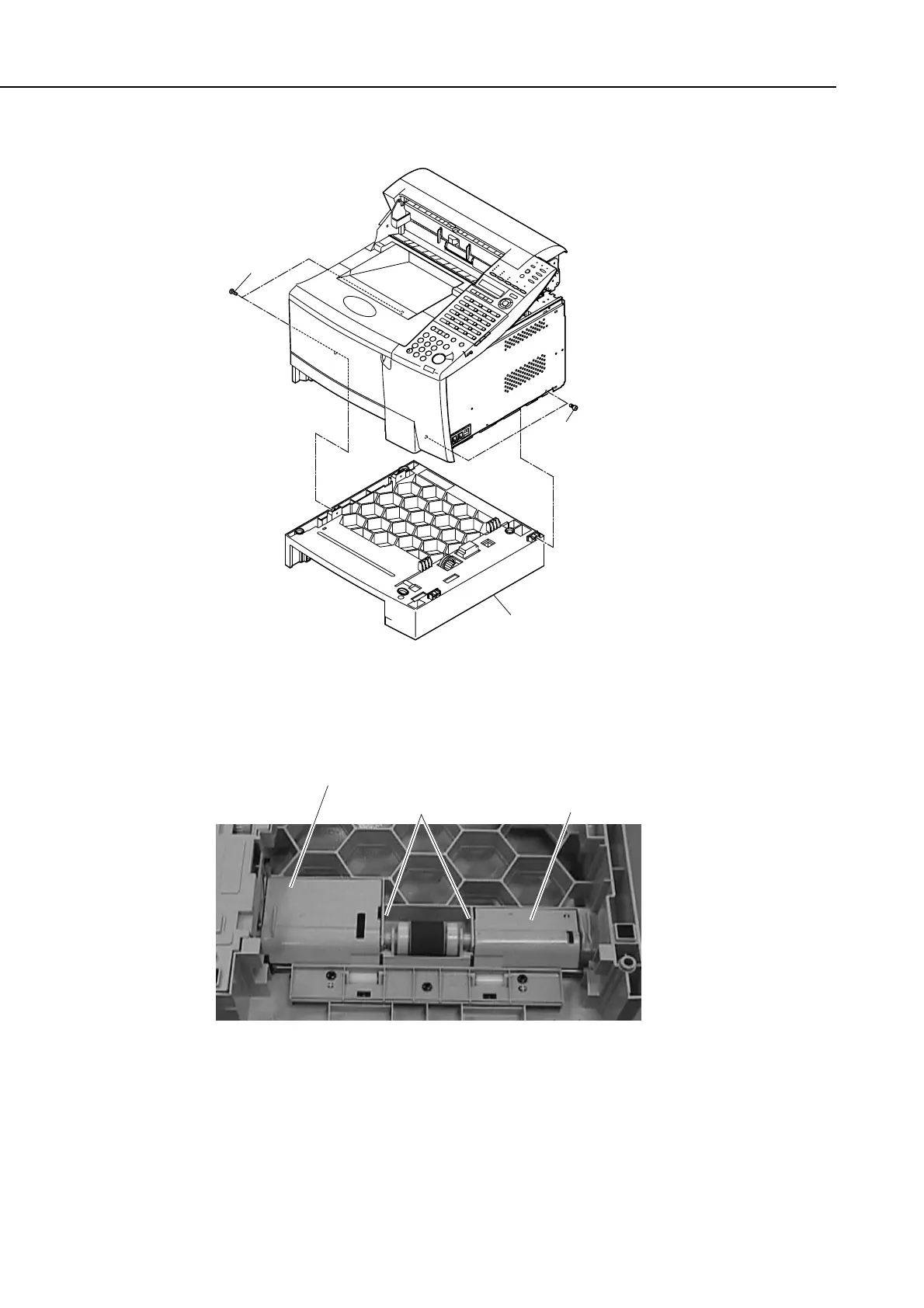

(4) Remove the 4 screws (d), and detach the cassette feeder ass’y.
Figure 3-21 Paper Pick-up Roller (feeder) 2
(5) Turn over the cassette feeder ass’y, and remove the feeder bottom cover. (You will find
a claw behind each cover.)
Figure 3-22 Paper Pick-up Roller (feeder) 3
Feeder bottom cover (right)
Feeder bottom cover (left)Claw
d
Cassette feeder ass'y
d
