2.1.5 Paper pick-up roller (Feeder) (LASER CLASS 730i/710)
(1) Remove the 2 screws (a), and detach the right cover.
(2) Remove the 2 screws (b), and detach the upper left cover.
(3) Remove the 2 screws (c); then, while freeing the claw, detach the left over.

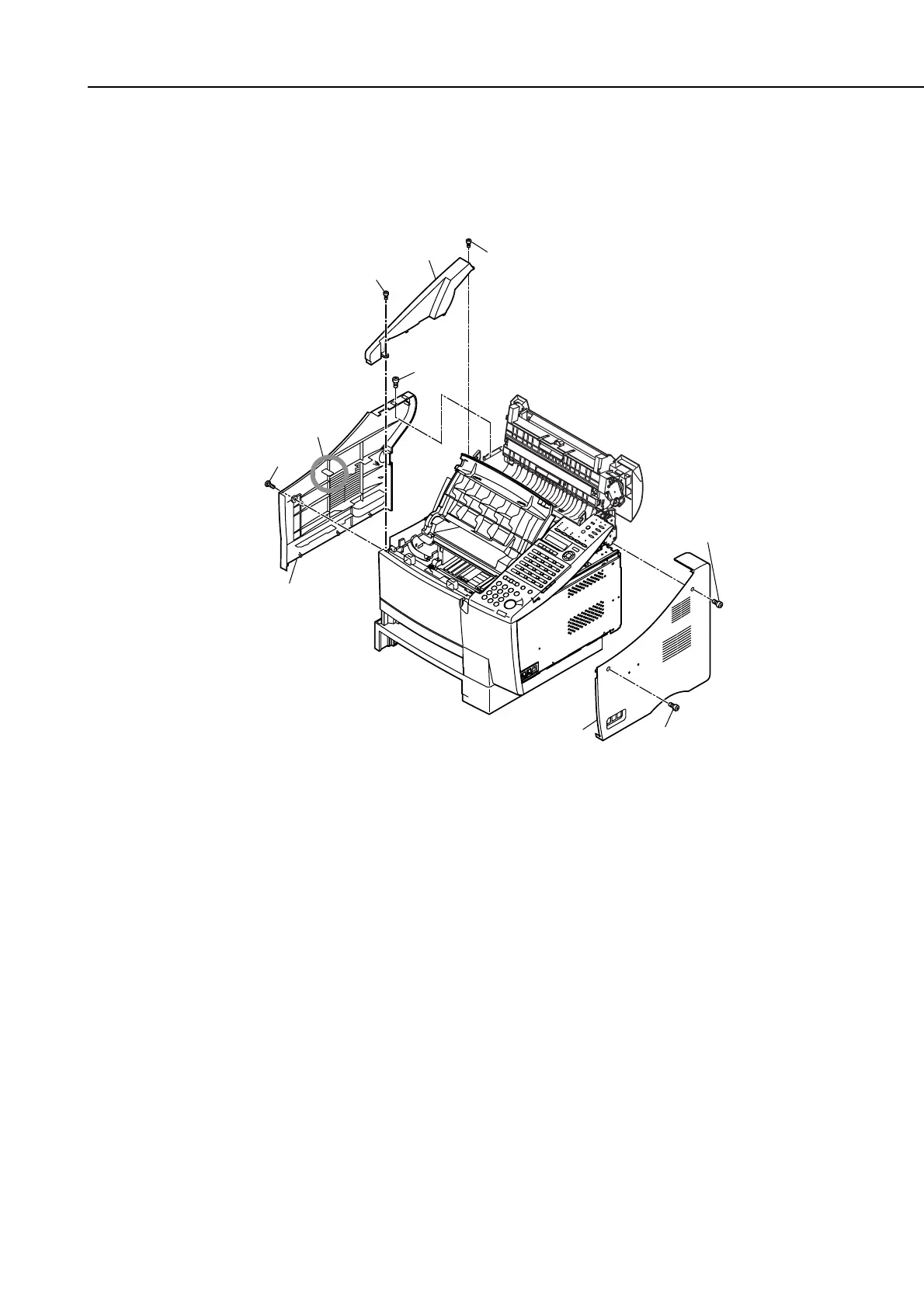

Figure 3-20 Paper Pick-up Roller (feeder) 1
b
Upper left cover
b
c
claw
c
Left cover
a
a
Right cover
