LASER CLASS 730i/720i/710 Chapter 3: Assembly and Disassembly
3-14

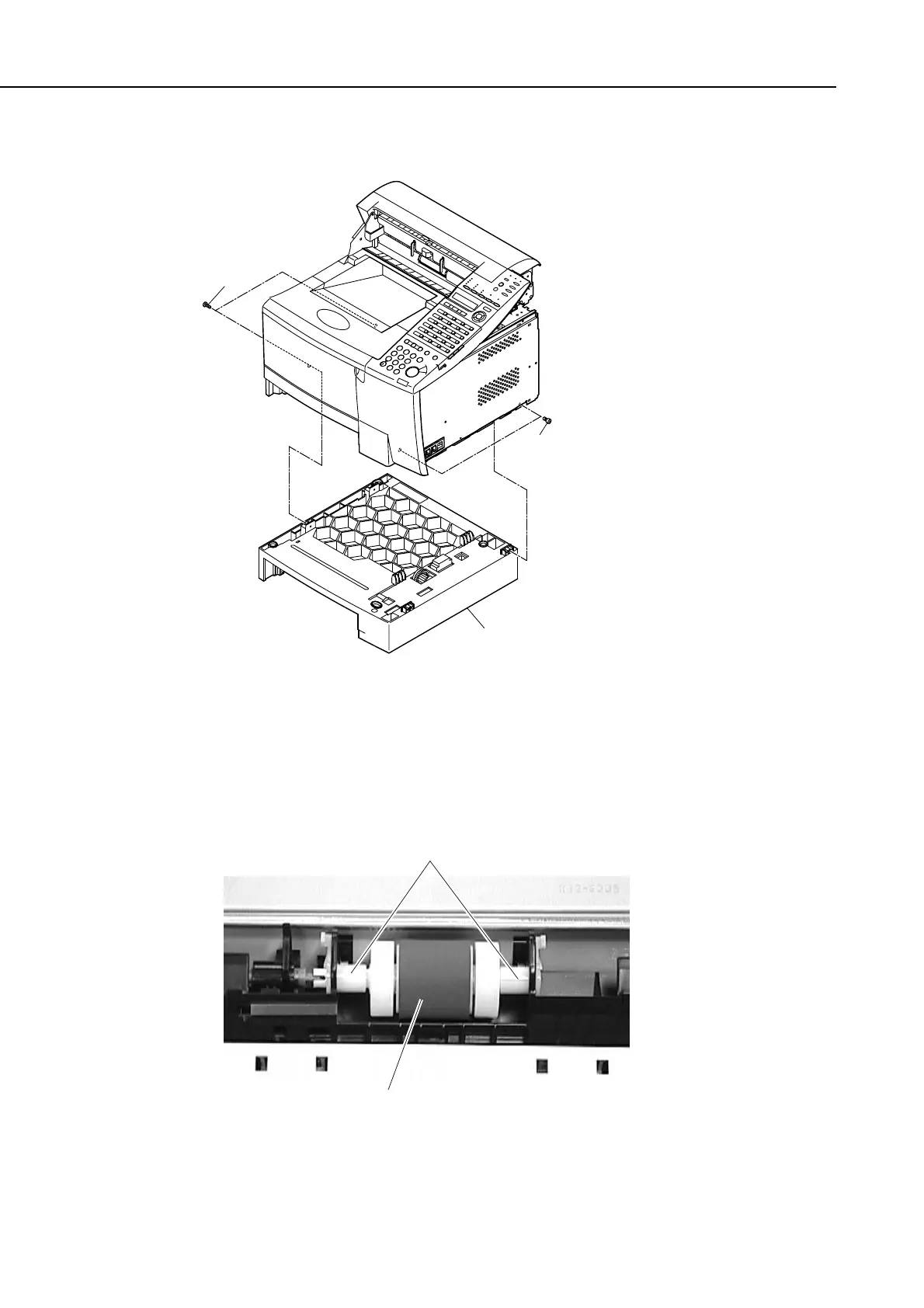

(4) Remove the 4 screws (d), and detach the cassette feeder ass’y. (LASER CLASS 730i/
710)
Figure 3-18 Paper Pick-up Roller (main unit) 2
(5) Take out the toner cartridge; then, turn over the main unit.
(6) Remove the 2 bushings; then, while shifting the pick-up roller to the left and right,
detach it.
Figure 3-19 Paper Pick-up Roller (main unit) 3
d
Cassette feeder ass'y
d
Pick-up roller
Bushings
