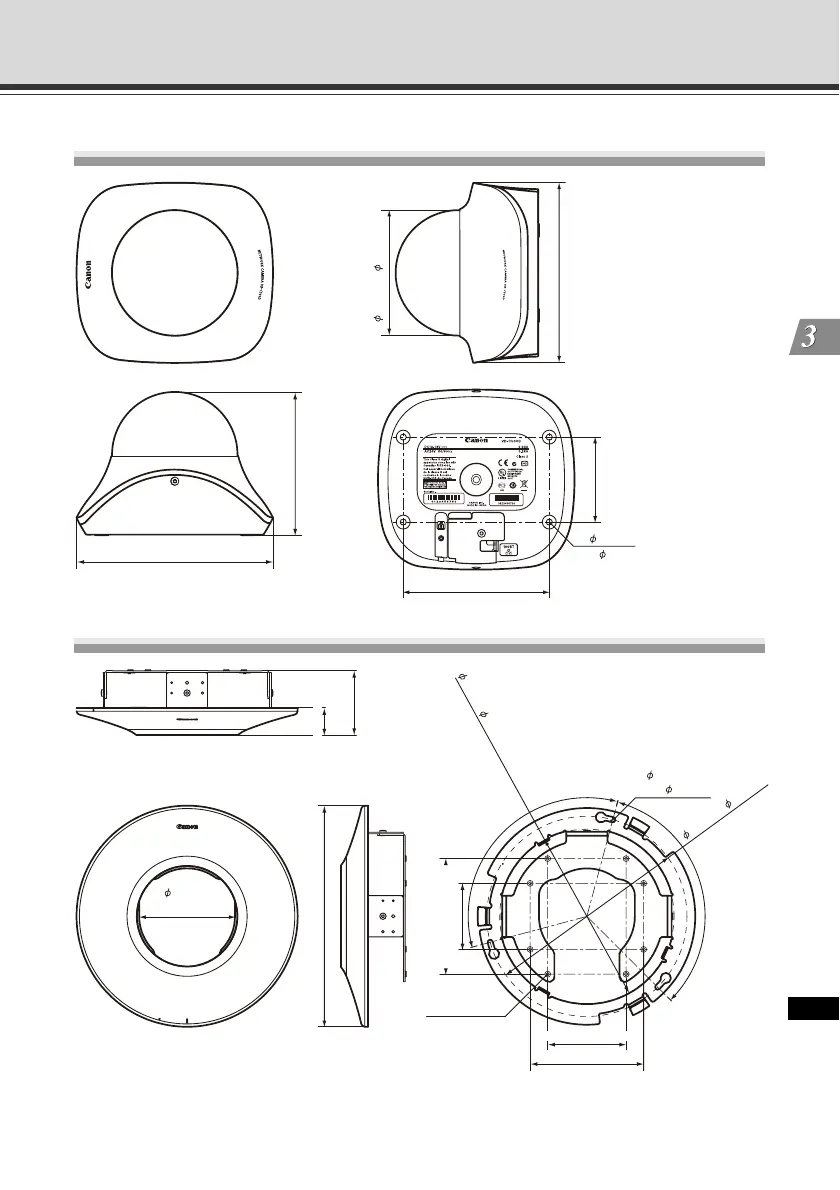

External Dimensions
Appendix
VB-C500VD/VB-C500D
Recessed Mounting Kit SR500-S-VB (Option)
148mm (5.83 in)
108mm (4.25 in)
110mm (4.33 in)
64mm (2.52 in)
Bottom
136mm (5.35 in)
95mm ( 3.74 in)
4- 4.6mm
(0.16- 0.18 in)
8-M4.0mm
(0.31-M0.16 in)
112mm (4.41 in)
120°
64mm (2.52 in)
110mm (4.33 in)
215mm (8.46 in)
63mm
(2.48 in)
98mm
(3.86 in)
120°
3- 5.0mm
(0.12- 0.20 in)
27mm
(1.06 in)
76mm (2.99 in)
169mm ( 6.65 in):Outside diameter
194mm ( 7.64 in)
