Carel pCO5+ - Page 56

56
ENG
pCO5plus +0300020EN rel. 1.2 - 07.11.2013

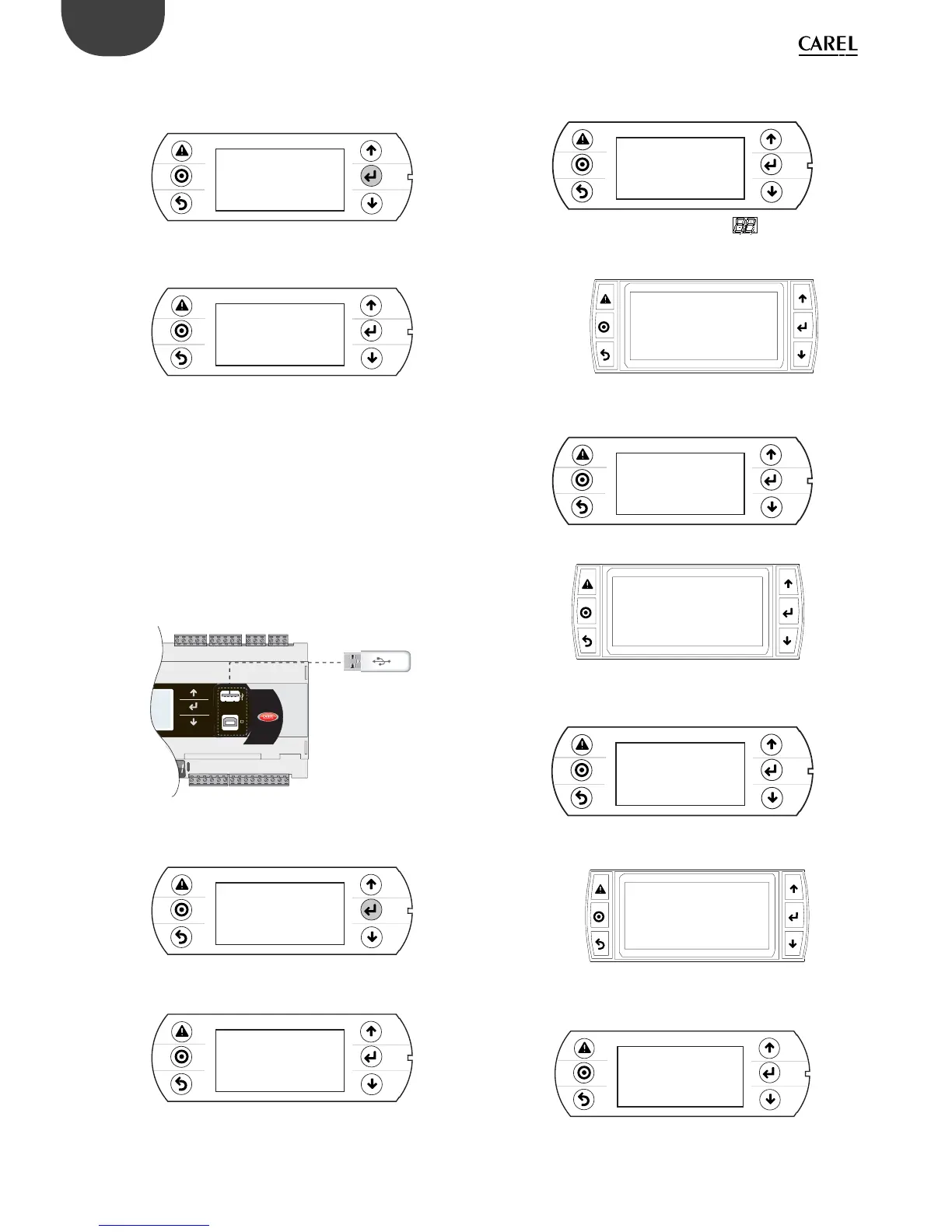

2. Confi rm by selecting Prg. A screen is displayed requesting
confi rmation to upload the non-volatile memory. Press Enter to
confi rm.

61-'*-&?%&7
Fig. 9.p
3. At the end a message will ask the user to remove the pendrive.

61-0"%*/('*-&
1-&"4&8"*5
Fig. 9.q
Upload in autorun mode
Uploading in autorun mode is a special case of uploading in automatic
mode. Unlike automatic mode, the user must wait for a specifi c message
to appear on the display to start or disable the operation described in the
confi guration fi le. To upload a fi le in autorun mode, a confi guration fi le
must be created and named “autorun.txt”.
Example of uploading BIOS+application. The upload involves two steps:
fi rst the BIOS is updated and then the application.
The information is shown on the pCO’s built-in display and on the pGD1
terminal, when both are featured.
Procedure:
1. Connect the pendrive to port A.
USB key
BMS card
Fig. 9.r
2. After a few seconds, Autorun mode starts. Press Enter to confi rm.
"65036/.0%&
61-0"%"11-*"5*0/
1RESS&/5&3TOSTART
&4$TOEXITAUTORUN
Fig. 9.s
3. The validity of the FW is checked and the BIOS is loaded.
'8VALIDATION
1LEASEWAIT
Fig. 9.t
4. The display fl ashes to indicate that after loading the new BIOS the
controller is being reset.
'8VALIDATION
1LEASEWAIT
Fig. 9.u
/0-*/,
pGD
Fig. 9.v
5. The test phase starts.
"PPLICATIONPROGRAM
CORRUPTEDORNOT
PRESENT
8"*5*/(FORUPGRADE
Fig. 9.w
/0-*/,
pGD
Fig. 9.x
6. The controller warns that no application has been loaded.
"PPLICATIONPROGRAM
CORRUPTEDORNOT
PRESENT
8"*5*/(FORUPGRADE
Fig. 9.y
/0-*/,
pGD
Fig. 9.z
7. The application update then starts.
6PLOADAPPL
1LEASEWAIT

Fig. 9.aa
