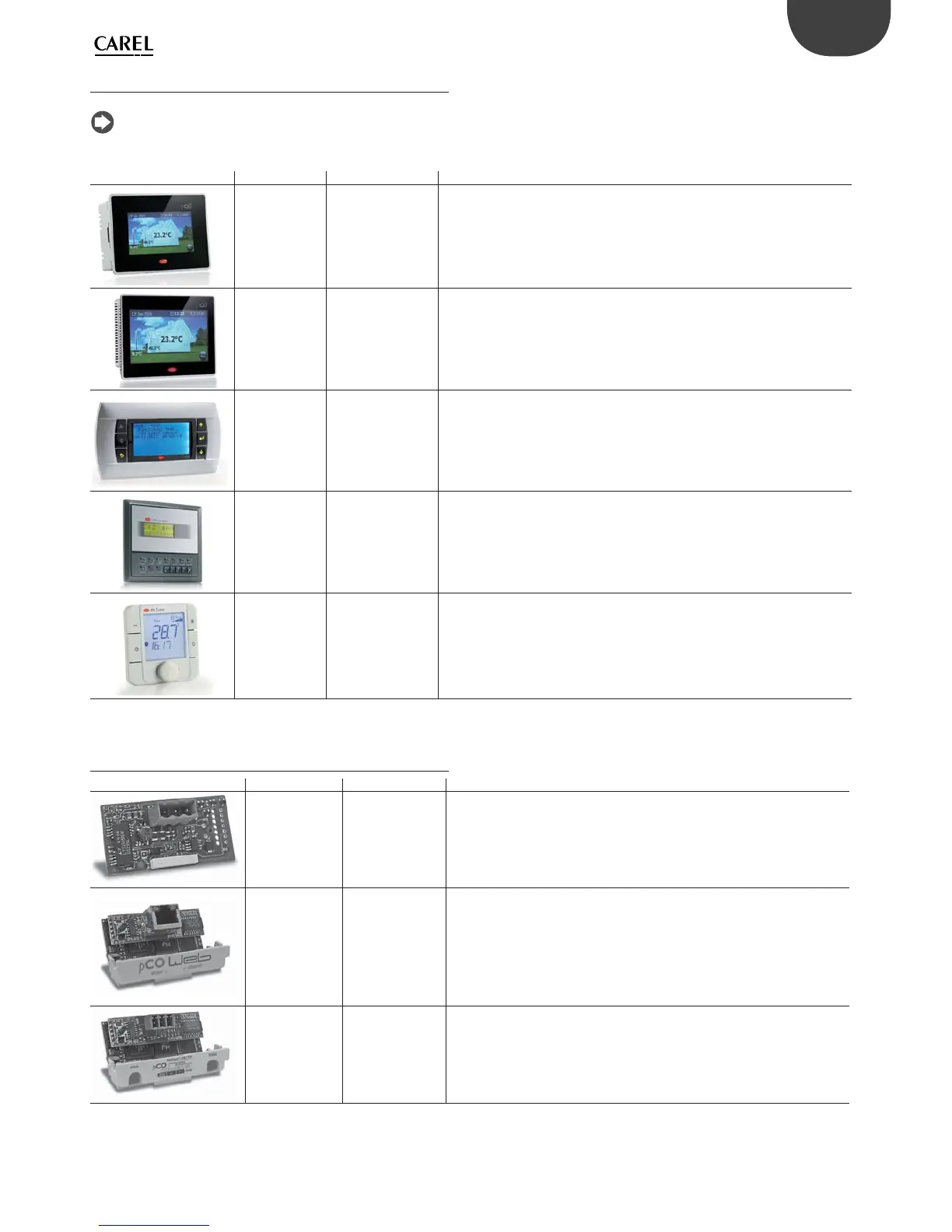

1.3 Terminals
Note: All instruction sheets can be downloaded from www.carel.
com in the “Documentation” section.
Code Description Notes
PGDT04000F***
(tech. leafl et code
+050001475)
pGD Touch 4.3” user
terminal
The pGD Touch 4.3” graphics terminal belongs to the family of touchscreen terminals,
designed to simplify and make more intuitive the interfacing of users with the controllers
of the pCO Sistema family. The electronic technology applied and the new 65,000-colour
display allows the terminal to handle high-quality images and advanced functions, pro-
viding an excellent aesthetic performance. In addition, the touchscreen panel facilitates
man-machine interaction, making it easier to navigate through the various screens.
PGDT07000F***
(tech. leafl et code
+050001490)
pGD Touch 7” user
terminal
See description of pGD Touch 4.3” user terminal.
PGDE000*
(tech. leafl et code
+050001450)
Graphics terminal
Allows complete graphics management through the use of icons (defi ned during the
development of the application software) and managing international fonts in two sizes:
5x7 and 11x15 pixels. The application software resides only on the pCO controller; the
terminal requires no additional software for operation. Accessories for installation:
• telephone connection cable, code S90CONN00*;
• TCONN6J000 shunt card (instr. sheet code +050002895).
PGD1000I00
(tech. leafl et code
+050001055)
Graphics terminal
(panel installation)
This model can be installed on the panel. Its graphics properties are identical to those of
the PGDE000 terminal*. Accessories for installation:
• telephone connection cable, code S90CONN00*;
• TCONN6J000 shunt card (instructions sheet code +050002895).
AT*
(tech. leafl et code
+0500016IE/
+0500017IE)
th-TUNE, terminal for
panel or wall instal-
lation
Allows the user to adjust the temperature and humidity in residential environments.
th-Tune is compatible with the main wall-boxes found in many countries (Italy, U.S.,
Germany, China).
1.4 BMS port expansion cards
Code Description Notes
PCOS004850
(tech. leafl et code
+050003237)
BMS RS485 serial
card
Can be installed on all controllers of the pCO family (except pCOB); allows direct inter-
facing with an RS485 network, max. baud rate 19200. The card ensures the controller’s
optical isolation from the RS485 serial network.
PCO10W0WB0
(tech. leafl et code
+050003238)
Ethernet - pCOweb
interface card
Can be installed on all controllers of the pCO family (except pCOB); allows connecting
the controller to a 10 Mbps Ethernet network and provides the following functions:
• access to controller data (network variables and parameters) through an Internet
browser (e.g. Internet Explorer™) installed on a PC and connected to the network
via TCP/IP to pCOWeb;
• connection to a supervisor network running the protocols indicated in the
instructions sheet.
PCO10W0BA0
(tech. leafl et code
+050000930)
BACnet MS/TP -
pCOnet interface
card
Allows connecting the controller to a BACnet MS/TP (Master/Slave Token pass) net-
work. The RS485 connection is optically isolated from the controller.

Carel pCO5+ Specifications

General

Series	pCO5+
Real-time Clock	Yes
Protection Rating	IP20
Processor	ARM Cortex-M3
Communication Ports	RS485
Display	LCD with backlight
Inputs	Digital and Analog
Outputs	Relay and Analog
Power Supply	24 VAC/DC
Humidity	10% to 90% non-condensing
Protocols	Modbus RTU, BACnet MS/TP
Input Voltage	24 VAC/VDC
Weight	300 g
Relay Outputs	Number varies depending on model
Analog Outputs	Number varies depending on model
