Carel SmartCella User Manual

8
ENG
“SmartCella manual” +0300084EN - rel. 1.2 - 28.03.2017
P/N Description
WP00B47B20 Smartcella 3PH 7.5HP 6.3-10A motor protector 3PH 9kW
defrost 3PH 2kW evaporator fans 1PH 800W condenser fans
1PH 800W light
WP00B57B20 Smartcella 3PH 7.5HP 10-16A motor protector 3PH 9kW
defrost 3PH 2kW evaporator fans 1PH 800W condenser fans
1PH 800W light
Tab. 1.b

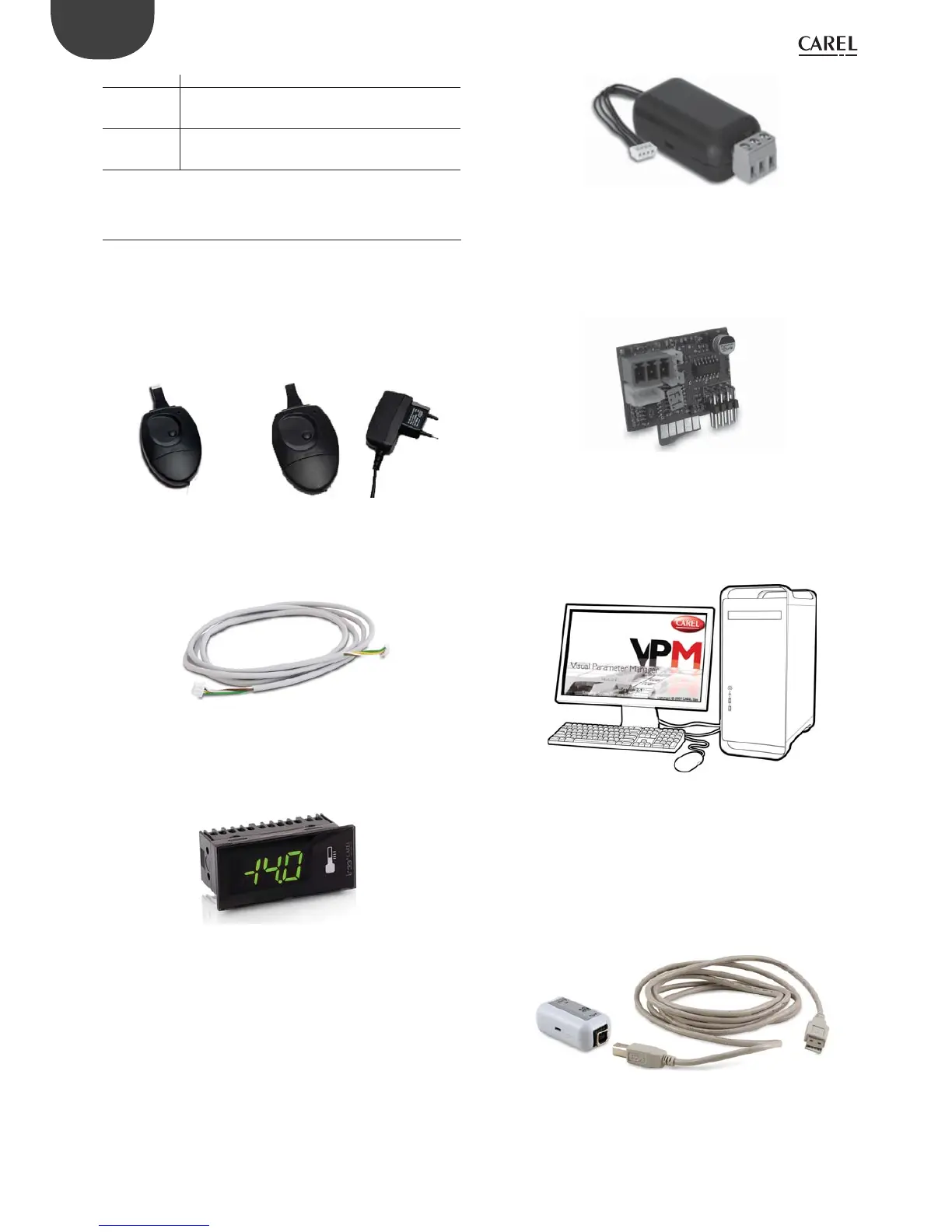

1.2 Accessories
IROPZKEY00/A0 programming key
The IROPZKEY00 and IROPZKEY00A0 (powered) programming keys
can be used with SmartCella. Visual Parameter Manager (VPM) allows
up to 7 diff erent confi gurations (sets) of parameters to be loaded
onto the controller (the controller operating parameters plus 6 sets of
customizable parameters). The read/write operations are carried out with
the controller off .
IROPZKEY00 IROPZKEYA0
Fig. 1.b Fig. 1.c
Connection cable (P/N PSTCON0*B0)
Three-wire cable to connect the controller to the tLAN interface card (P/N
IROPZDSP00). Available in diff erent lengths: 1.5; 3; 5 m.
Fig. 1.d
Remote display (P/N IREVXGD000)
The remote display (for model with switching power supply) can be used
to display one of the system variables.
Fig. 1.e
RS485 serial interface (P/N IROPZ48500 and IROPZ485S0)
Plugged directly into the programming key connector, this provides
connection to the PlantVisor supervisory system. The accessory has been
designed as a plug-in addition to the controller and consequently can
be installed following installation if needed. Model IROPZ485S0 features
a microprocessor and can automatically recognize the TxRx+ and TxRx
signals (reverse connection).
Fig. 1.f
RS485 serial board (P/N IROPZSER30)
The IROPZSER30 board is used to connect SmartCella via the RS485
network serial to supervisory system (using the removable terminal
supplied), as well as direct connection of the instrument to the repeater
display using a PSTCON**B00 cable.
Fig. 1.g
VPM programming tool (Visual Parameter Manager)
The program can be downloaded from http://ksa.carel.com. The tool
runs on a computer and is used to set up the controller, change the
parameter settings and update the fi rmware. The USB/I2C converter P/N
IROPZPRG00 is required.
Fig. 1.h
USB/I2C converter and cable (P/N IROPZPRG00)
Converter used to connect a personal computer to an IROPZKEY00/
A0 programming key, and consequently use the VPM program
(Visual Parameter Manager) to read, set and write the parameters. The
programming key can then be used to program the controllers or read
the controller parameters, and for example copy a confi guration from
one controller to the others.
Fig. 1.i
