Carrier 48FC Series User Manual

19
CONDENSER COIL
HUMIDI-MIZER COIL
EVAPORATOR COIL
COMPRESSOR
OUTDOOR AIR
INDOOR LEAVING
AIR
INDOOR ENTERING
AIR
RDV
VALVE
CLV
VALVE
REHEAT MODE
METERING
DEVICE (TXV)
= CLOSED VALVE
= OPEN VALVE
a48---9191

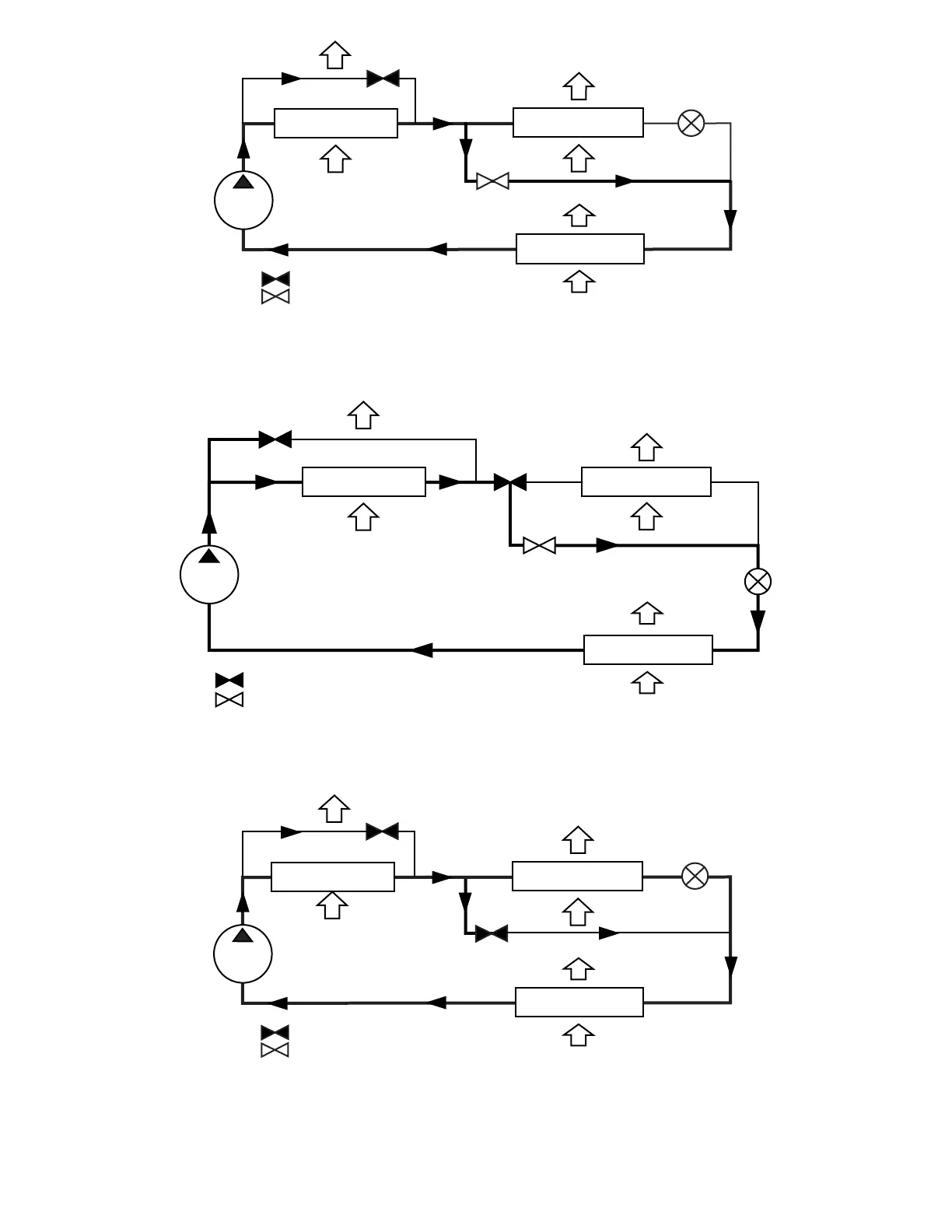

Fig. 10 -- Normal Cooling Mode – Humidi--MiZer System with Single Stage Cooling, 48/50FC 04 --06
HUMIDI-MIZER COIL
COMPRESSOR
OUTDOOR AIR
INDOOR SUPPLY
AIR
INDOOR RETURN
AIR
RLV
VALVE
EXPANSION
VALVE
(TXV)
= CLOSED VALVE
= OPEN VALVE
RDV
VALVE
EVAPORATOR COIL
CONDENSER COIL
CLV
VALVE
a48---10188
Fig. 11 -- Normal Cooling Mode – Humidi --MiZer System with 2 Stage Cooling, 48/50GC 04 -- 06 and 48/50FC 07
RDV
VALVE
CLV
VALVE
CONDENSER COIL
HUMIDI-MIZER COIL
EVAPORATOR COIL
COMPRESSOR
OUTDOOR AIR
INDOOR LEAVING
AIR
INDOOR ENTERING
AIR
REHEAT MODE
METERING
DEVICE (TXV)
= CLOSED VALVE
= OPEN VALVE
Subcooling Mode (Reheat 1) − Humidi−MiZer System with Single Stage Cooling
a48---9192
Fig. 12 -- Subcooling Mode – Humidi--MiZer System with Single Stage Cooling, 48/50FC 04--06
