SHANDONG CARTER HEAVY INDUSTRY MACHINERY CO., LTD.
46
3.4 Hydraulic system structure of Carter 1.2T excavators

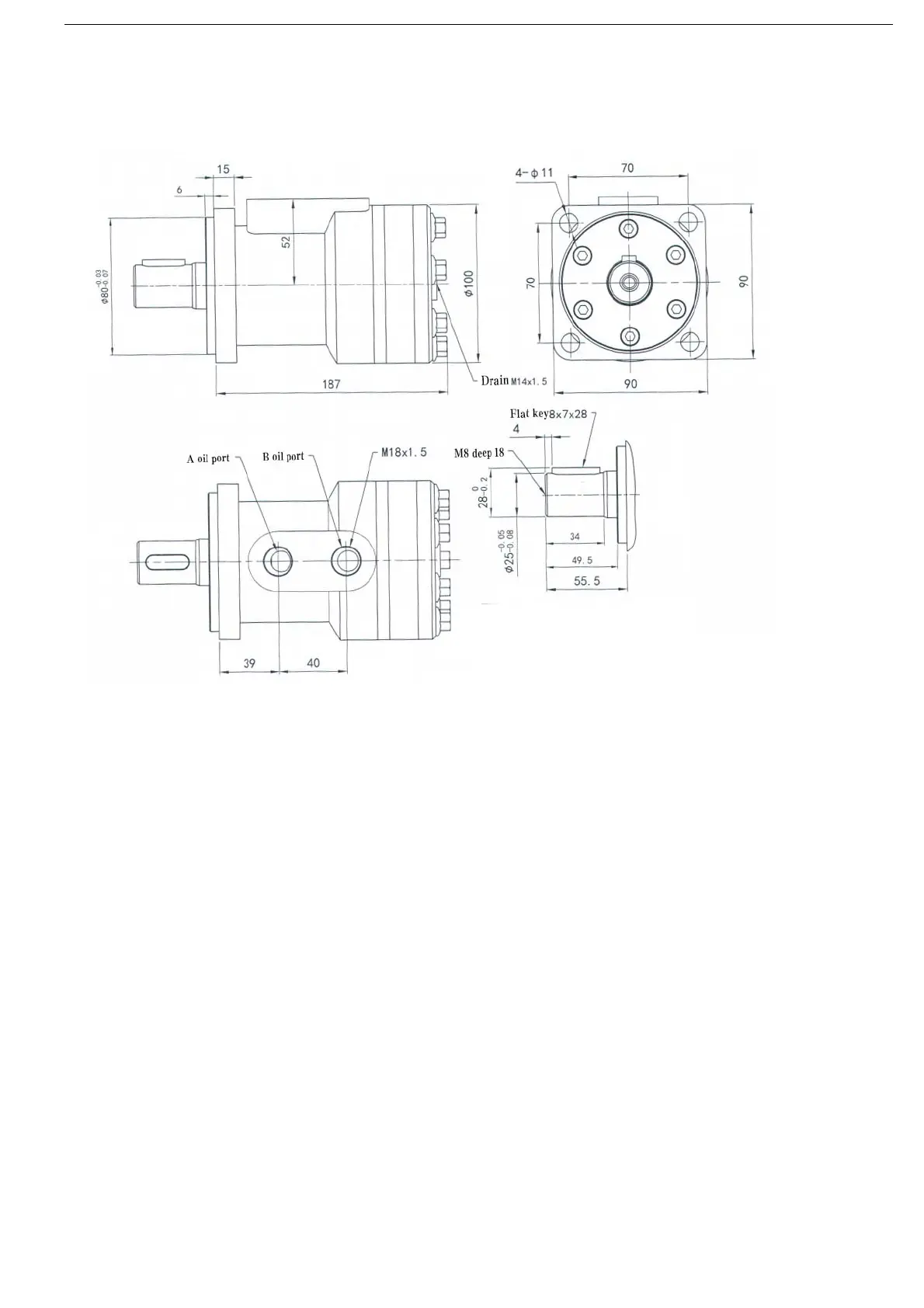

I. Rotary motor
II. Main pump
