Carter CT12 - 4.3 Operational Essentials

SHANDONG CARTER HEAVY INDUSTRY MACHINERY CO., LTD.
54
4.3 Operational essentials
1.
Traveling
Use the traveling handles.
(1)
Straight
Forwards or backward move the handle, running the machine forwards or backwards.
(2)
Steering
A. Left turn in situ: backward shift the left handle and meanwhile forward push the right handle.
b.
Right turn in situ: backward shift right handle and meanwhile forward push the left handle.
c.
Left turn with left track as axis: forward move the right handle
d.
Right turn with right track as axis: forward move the left handle
2. Excavation

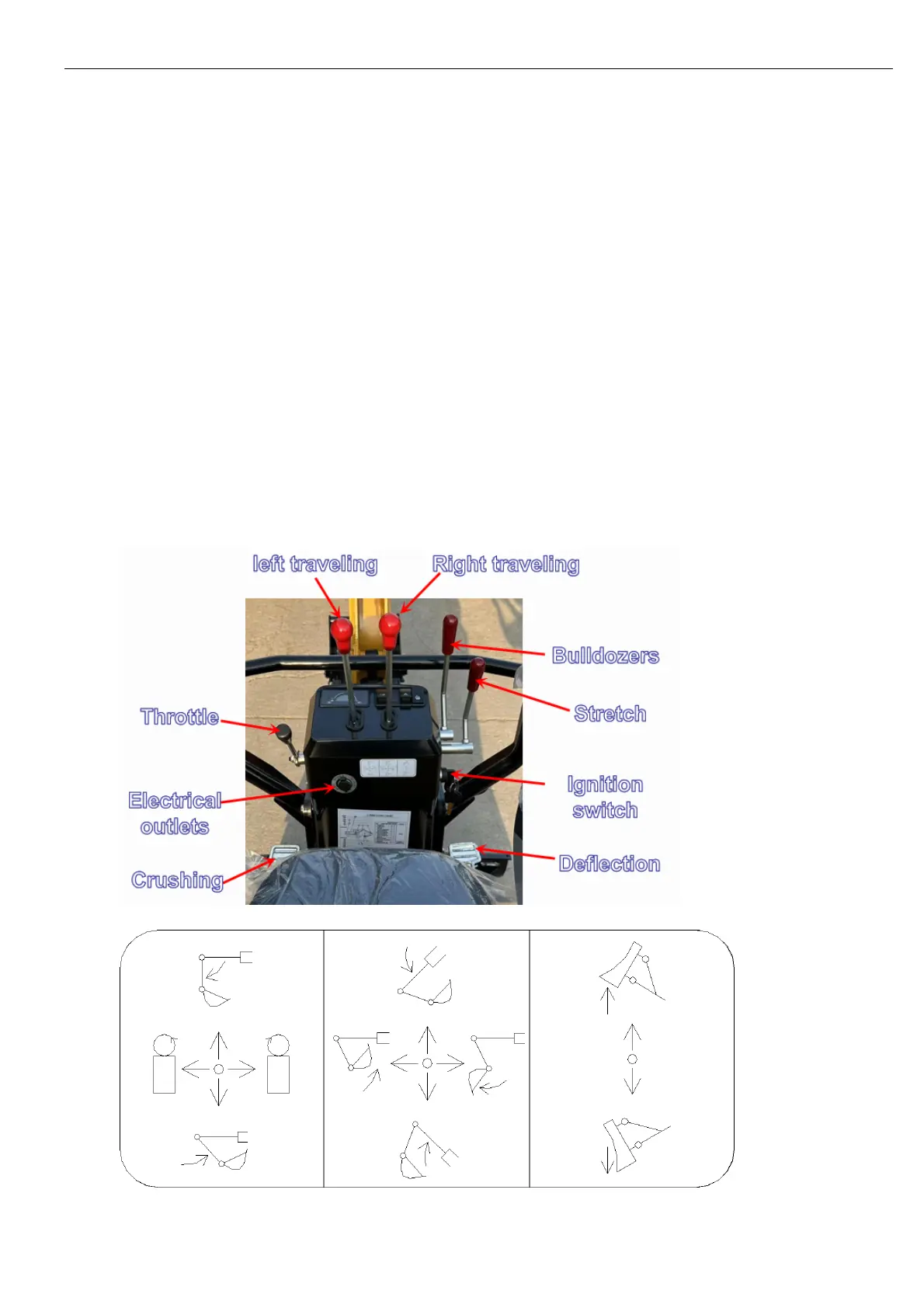

2.1 The excavator slewing and the work equipment are respectively controlled with two handles, with positions
shown below:
