7.3 Machine slinging
CAUTION
Never suspend the machine if any person is on the machine or the implement.
Use wire ropes strong enough for the weight of the machine.
Do not suspend the machine in any way other than that explained on the following page.
Failure to suspend the machine as prescribed will throw the machine off balance.
Do not swing the machine being suspended.
When lifting the machine, keep the machine in balance taking care on the center of gravity of the machine.
Never stand near or under the suspended machine.
For safety in suspending the machine, comply with all
applicable regulations.

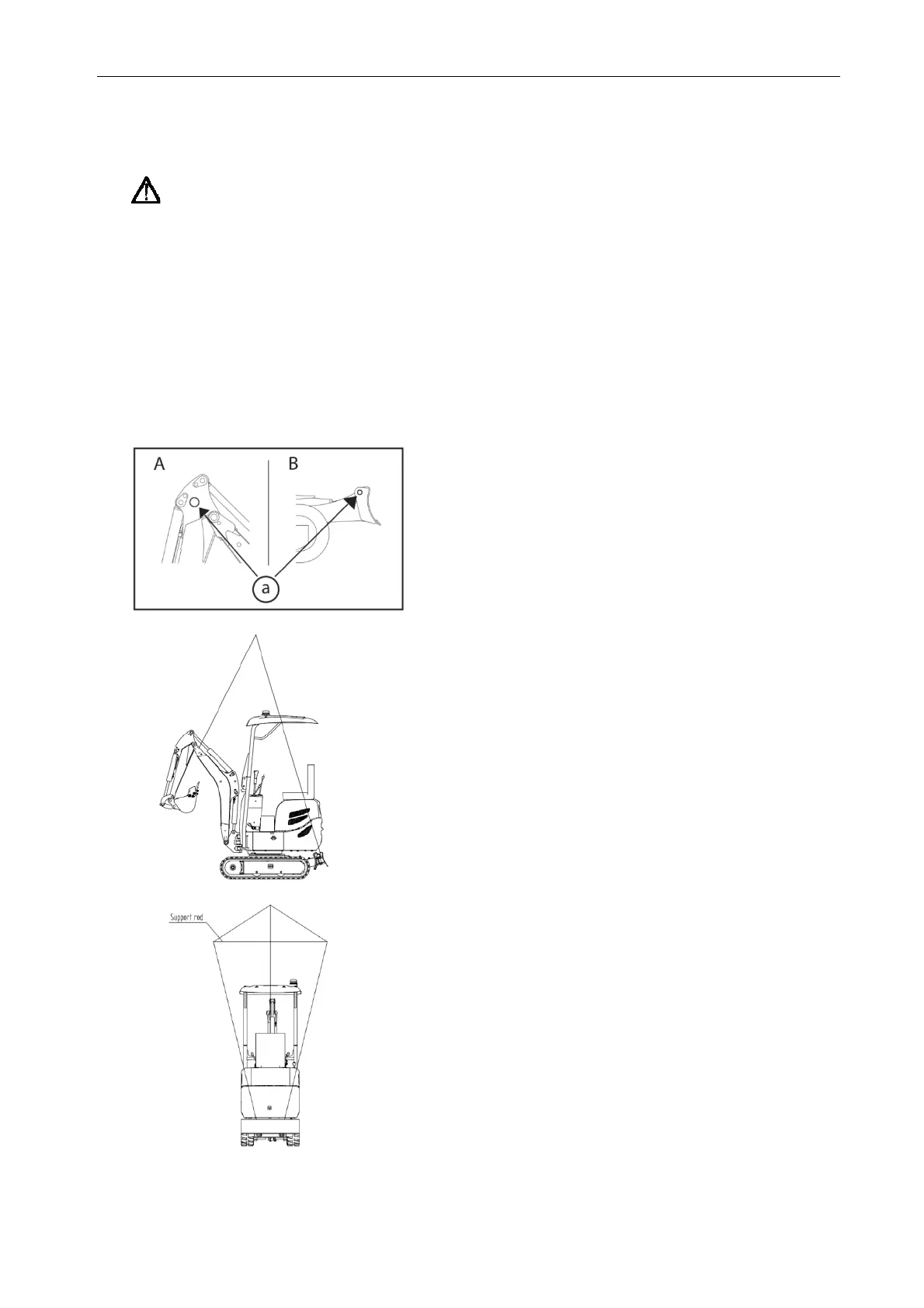

Suspend the machine on the level ground as follows:
A： Front side
B：Rear side
a： Hook bores are on both ends.
1) Swing the upper structure so that the blade is behind
the operator’s seat.
2) Raise the blade to the highest limit.
3) Extend the hydraulic cylinders of the front
implement (except for the swing cylinder) to the
maximum.
4) Top the engine, and make sure that nothing is left
around the operator's seat before leaving the
machine.
5) Fit the shackles to the suspending hooks on the front
side (one point) and the rear side (two points), and
securely fasten a sling belt (or a wire rope) to the
shackles.
