Case 435 - Alternator - Sectional View (A.30.A.82

To Next Page

To Previous Page

DISTRIBUTION SYSTEMS - ELECTRICA L POWE R SYSTEM

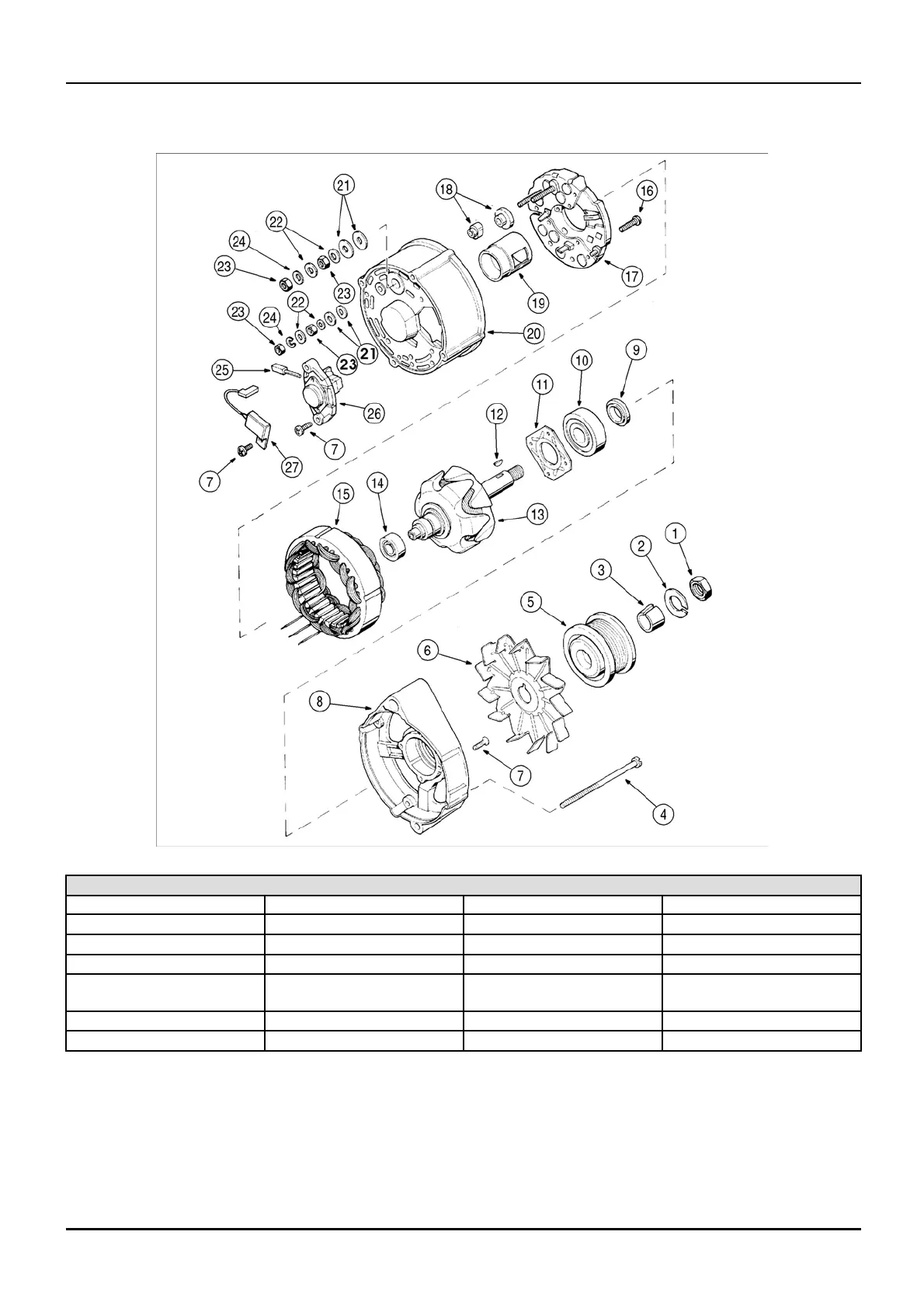

Alternator - S ectional view (A.30.A.82 - C.10.A.30)

435, 445, 445CT

B9402123A 1

65 Ampere Alternator

1. Nut

8. Cover 15. Stator

22. Flat washer

2. Washer

9. Spacer 16. Screw

23. Nut

3. Retainer 10. Front bearing

17. Rectiﬁer Bridge

24. Lock washer

4. Screw

11. Bearing retainer 18. Insulator 25. Brush

5. Pulley 12. K ey

19. S hield

26. Voltage regulator and

brush holder

6. Fan 13. Rotor 20. Housing

27. Capacitor

7. Screw

14. Rear bearing 21. Fiber washer

1 04/05/2005

A.30.A / 8

Case 435 - Alternator - Sectional View (A.30.A.82 - C.10.A.30); 435, 445, 445 Ct
