Case 435 - Connector - Component Diagram Frame 02 (A.30.A.87 - C.20.F.02)

DISTRIBUTION SYSTEMS - ELECTRICA L POWE R SYSTEM
Connector - Component diagram frame 02 (A.30.A.87 - C .20.F.02)
435, 445, 445CT

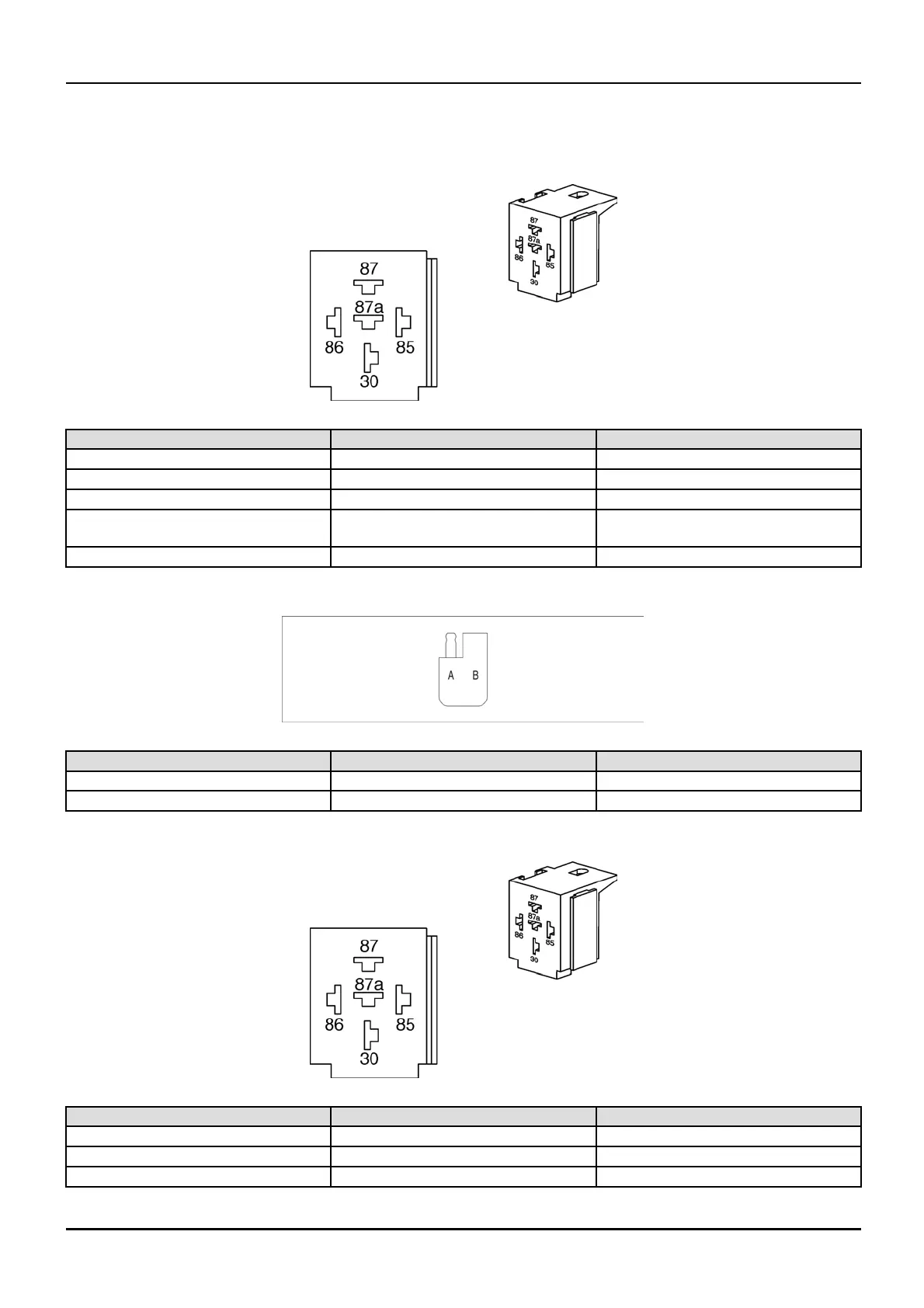

Connector 14
245731C1 1
Cavity Circuit ID
Description
30
190A (R)
From 40 amp buss bar circuit b reaker
85
178D (B)
To ground
85
178E (B)
To ground
86
131C (R)
To reverse polarity diode connector
25 pin B
87
136A (R) To primary fuse block terminal 4
Connector 25
cnh_style-24 2
Cavity Circuit ID
Description
A
131A (R)
From conn e c to r 8 A p in B2
B
131C (R)
To connector 14 pin 86
Connector 53
245731C1 3
Cavity Circuit ID
Description
30
180A (R)
From 40 amp circuit breaker
85
178BJ (B)
To ground
85
178BK (B)
To ground
