Case 435 - Connector - Component Diagram Frame 13 (A.30.A.87 - C.20.F.13); 435, 445, 445 Ct

DISTRIBUTION SYSTEMS - ELECTRICA L POWE R SYSTEM

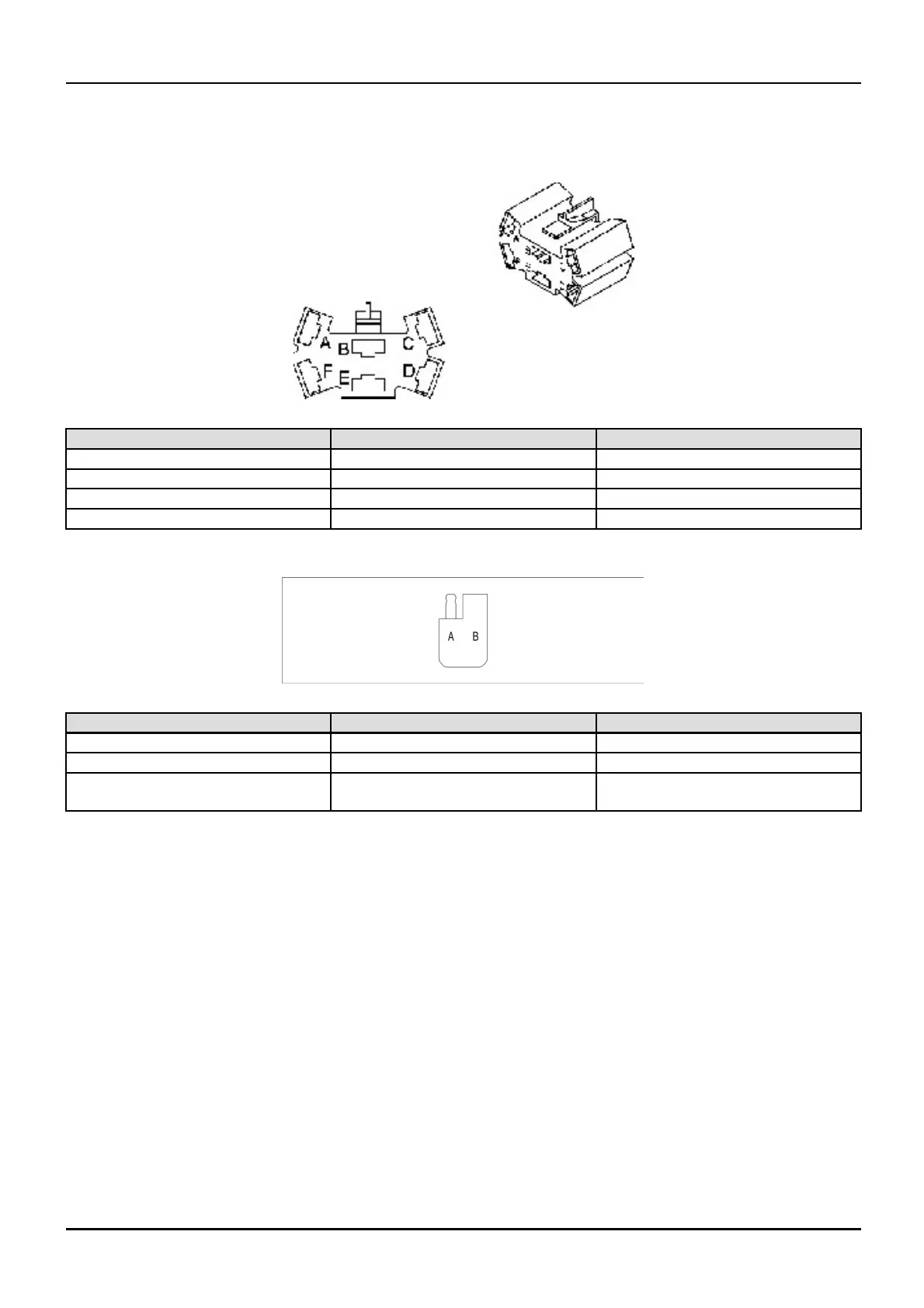

Connector - Component diagram frame 13 (A.30.A.87 - C .20.F.13)
435, 445, 445CT
Connector 67
245781c1 1
Cavity Circuit ID
Description
A
178BC (B)
To ground
A
178BD (B)
To ground
E
540E (R) From options fuse block
D
766B (P)
To connector 68 pin B
Connector 68
cnh_style-24 2
Cavity Circuit ID
Description
A
178AF (B)
To ground
A
178AG (B)
To ground
B
766C (P) From connector 67 pin D (rotating
beacon switch)
