Case 435 - Connector - Component Diagram Frame 11 (A.30.A.87 - C.20.F.11)

DISTRIBUTION SYSTEMS - ELECTRICA L POWE R SYSTEM

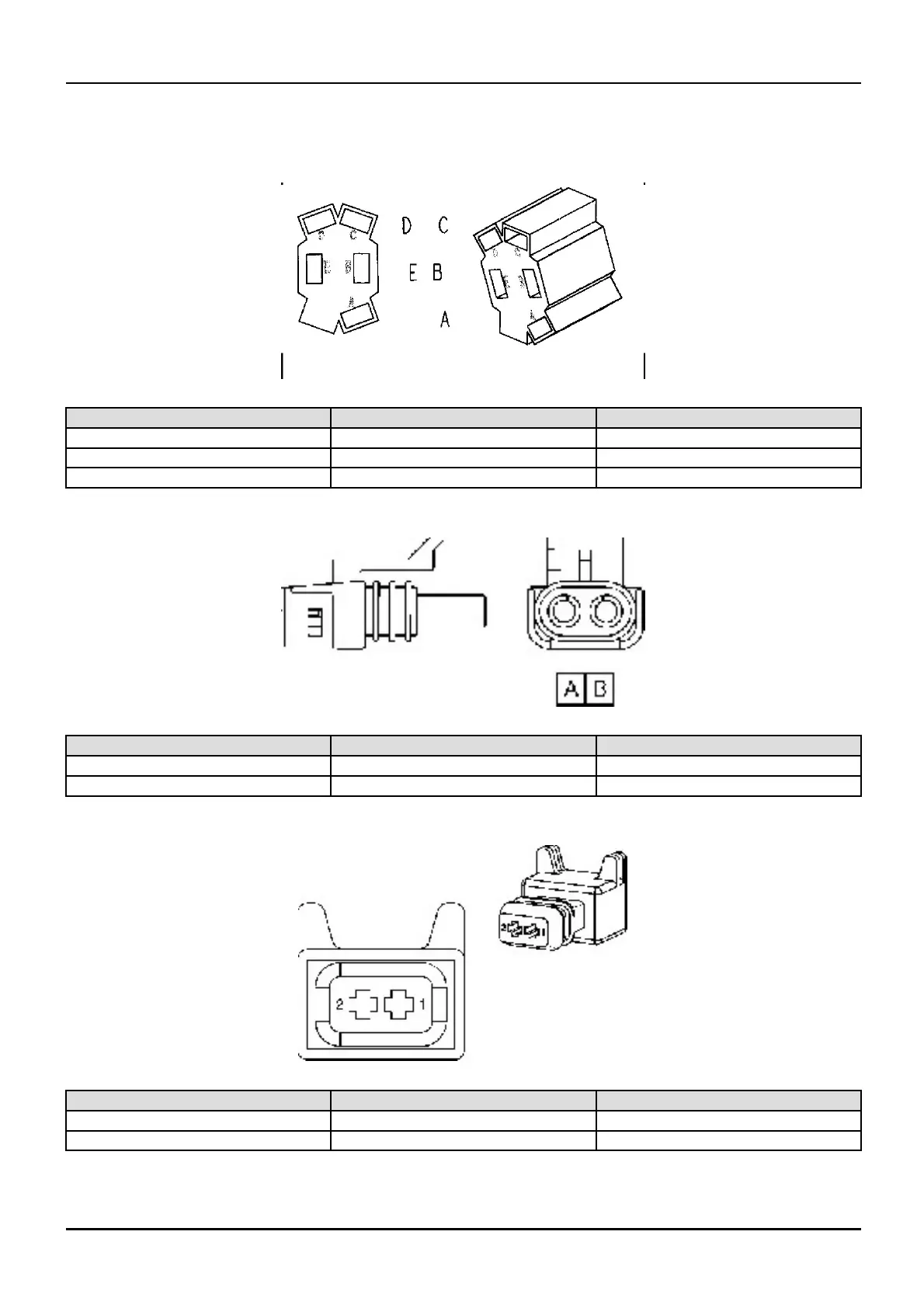

Connector - Component diagram frame 11 (A.30.A.87 - C .20.F.11)
435, 445, 445CT
Connector 72
245432C1 1
Cavity Circuit ID
Description
A
535A (T)
From co nnector 124 pin B
B
751B (R) From primary fuse block
C 178BE (B)
To ground
Connector 120
245482c1 2
Cavity Circuit ID
Description
A
535C (T)
From co nnector 124 pin B
B
178BT (B)
To connector 124 pin A
Connector 121
291718a1 3
Cavity Circuit ID
Description
1
178BR (B)
From splic e 2
2
545B (T)
To connector 123 pin A
1 04/05/2005
A.30.A / 30
