Case 435 - Connector - Component Diagram Frame 20 (A.30.A.87 - C.20.F.20)

DISTRIBUTION SYSTEMS - ELECTRICA L POWE R SYSTEM

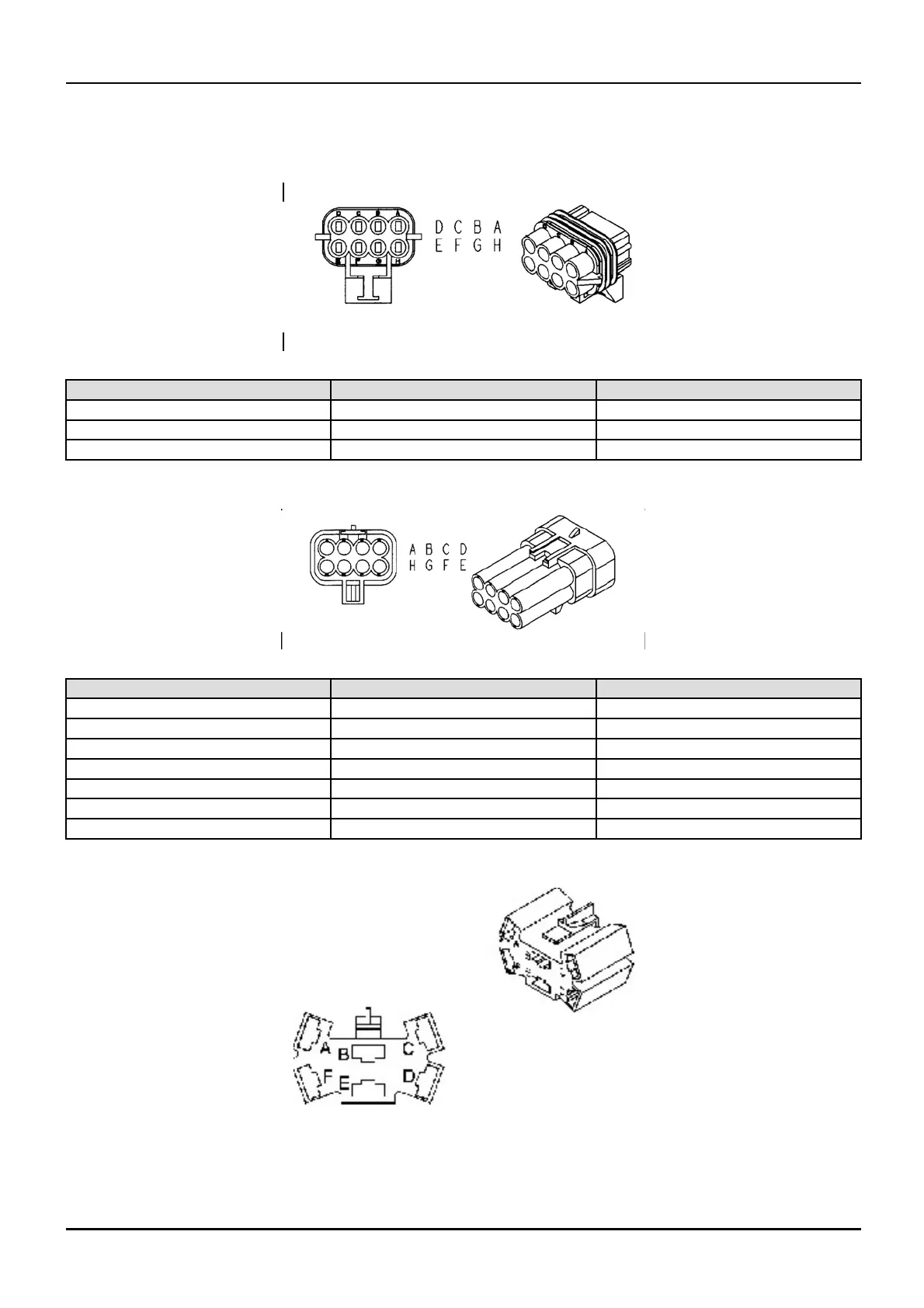

Connector - Component diagram frame 20 (A.30.A.87 - C .20.F.20)
435, 445, 445CT
Connector 66B
256350A1 1
Cavity Circuit ID
Description
A
757FB (P) To connector 66C pin A
B
759FA (P) To connector 66C pin B
C 756FB (P) To connector 66C pin C
Connector 66C
256351A1 2
Cavity Circuit ID
Description
B
751FA (R)
From connector 275 pin 86
C 756FA (P) From connector 66B pin C
E
758FA (P)
From co nnector 276 pin B
H
178FA (B)
From connector 275 pin 85
A
757FA (P)
From co nnector 66B pin A
D
759FB (P)
From connector 275 pin 87
F
754FA (P)
To connector276 pin E
Connector 92
245781c1 3
1 04/05/2005
