Case 435 - Connector - Component Diagram Frame 17 (A.30.A.87 - C.20.F.17)

DISTRIBUTION SYSTEMS - ELECTRICA L POWE R SYSTEM
Connector - Component diagram frame 17 (A.30.A.87 - C .20.F.17)
435, 445, 445CT

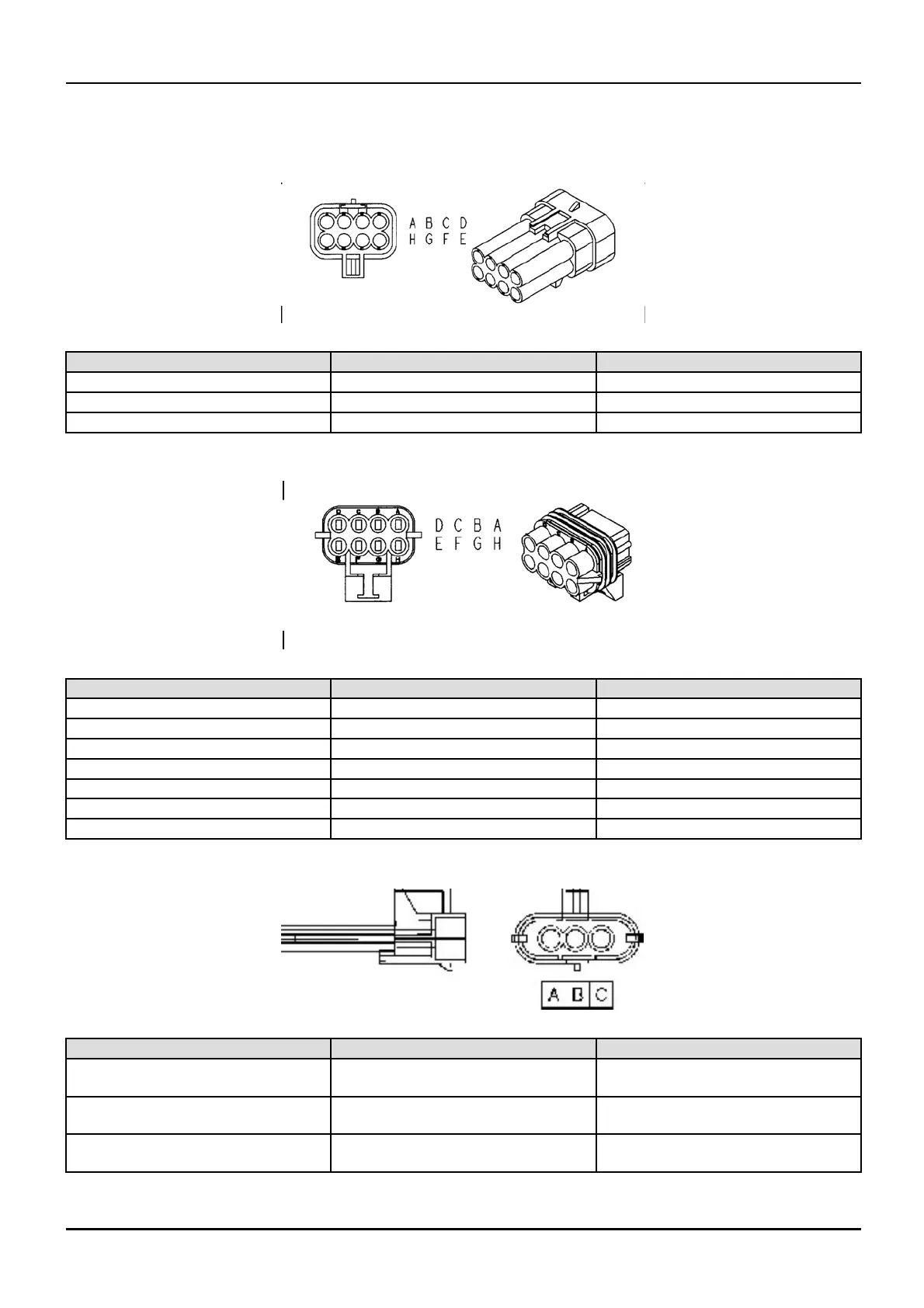

Connector 66
256351A1 1
Cavity Circuit ID
Description
A
757B (P)
To connector 85 pin A
B
751G (R)
To connector 85 pin B
C 756B (P) To connector 85 pin C
Connector 66A
256350A1 2
Cavity Circuit ID
Description
A
757A (P)
To connector 86 pin A
B
751A (R) From options fuse block terminal 6
C 756A (P) To connector 86 pin C
D
759A (P)
From connector 92 pin E
E
758B (P)
To connector 92 pin D
F
754C (F)
To connector 8A pin D3
H
178BK (B)
To ground
Connector 85
256345a1 3
Cavity Circuit ID
Description
A
757B (P) To connector 86B pin A option C or
connector 85D pin A option D
B
751G (R)
To connector 86B pin B or connector
85D pin B option D
C 756B (P) To connector 86B pin C or connector
85D pin C option D
1 04/05/2005
A.30.A / 37
