Case 435 - Hydraulic Pump - Sectional View (A.10.A.20 - C.10.A.30); 435, 445, 445 Ct

DISTRIBUTION SYSTEMS - PRIMARY HYDRAULIC POWER SYSTEM

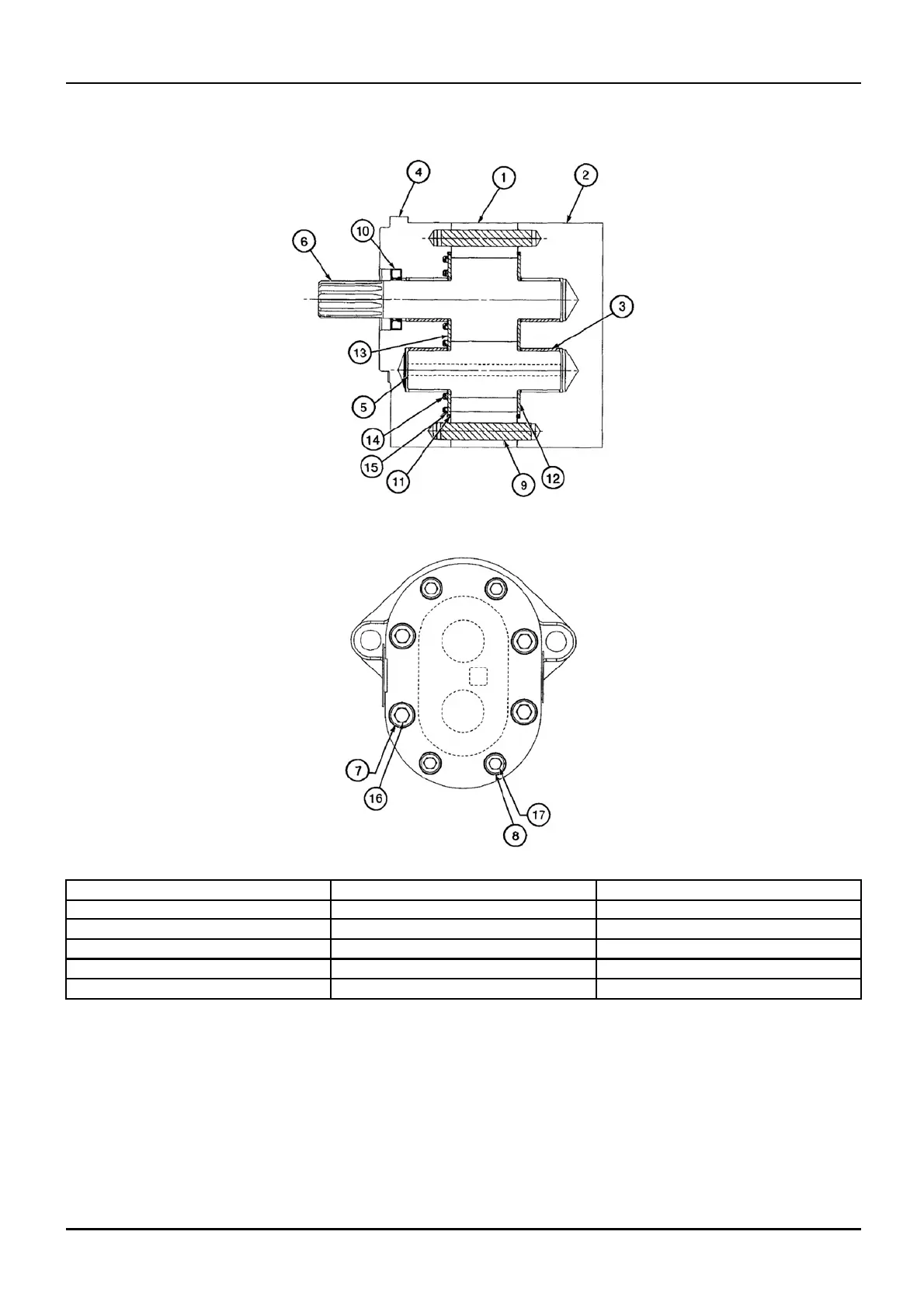

Hydraulic pump - Sectional view (A.10.A.20 - C.10.A.30)
435, 445, 445CT
BS98F177 1
1. Gear plate
7. Washer 13. Wear plate
2. Cover
8. Washer
14. Seal
3. Bearing sleeve 9. Dowel pin
15. Seal
4. Body
10. Oil seal 16. Socket bolt
5. Idler shaft 11. Seal ring 17. Socket bolt
6. Drive shaft
12. Wear plate
1 04/05/2005
A.10.A / 20
