DISTRIBUTION SYSTEMS - ELECTRICA L POWE R SYSTEM

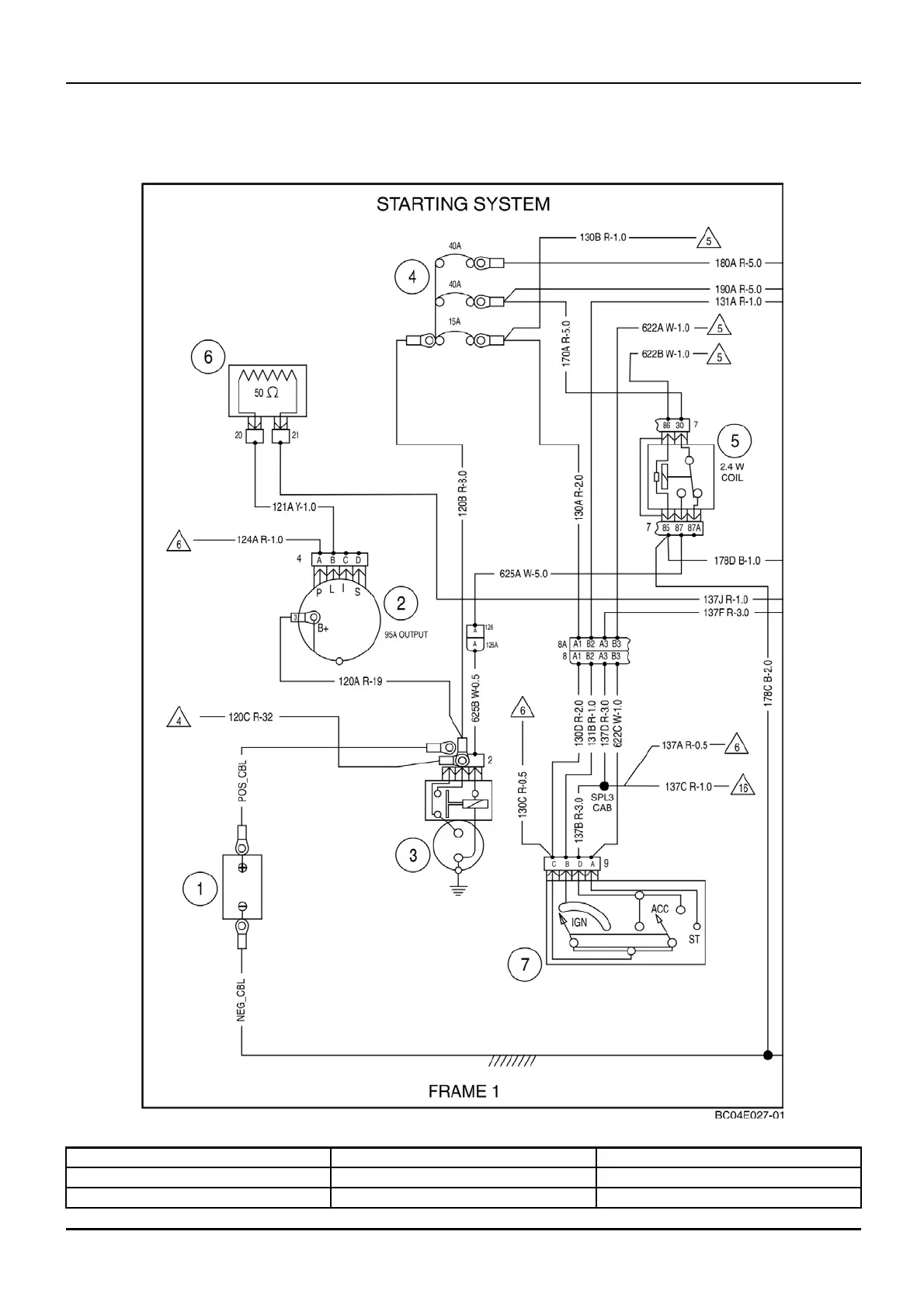

Wiring harness - Electrical schematic frame 01 (A.30.A.88 -

C.20.E.01)

435, 445, 445CT

bc04e027-01 1

(1) Batte r y (4) Circuit Breakers (7) Ignition Switch

(2) Alternator (5) Starter Relay

(3) Starter and Solenoid (6) Resistor (50 ohm)

1 04/05/2005

A.30.A / 55
