Case 435 - Connector - Component Diagram Frame 26 (A.30.A.87 - C.20.F.26); 435, 445, 445 Ct

DISTRIBUTION SYSTEMS - ELECTRICA L POWE R SYSTEM

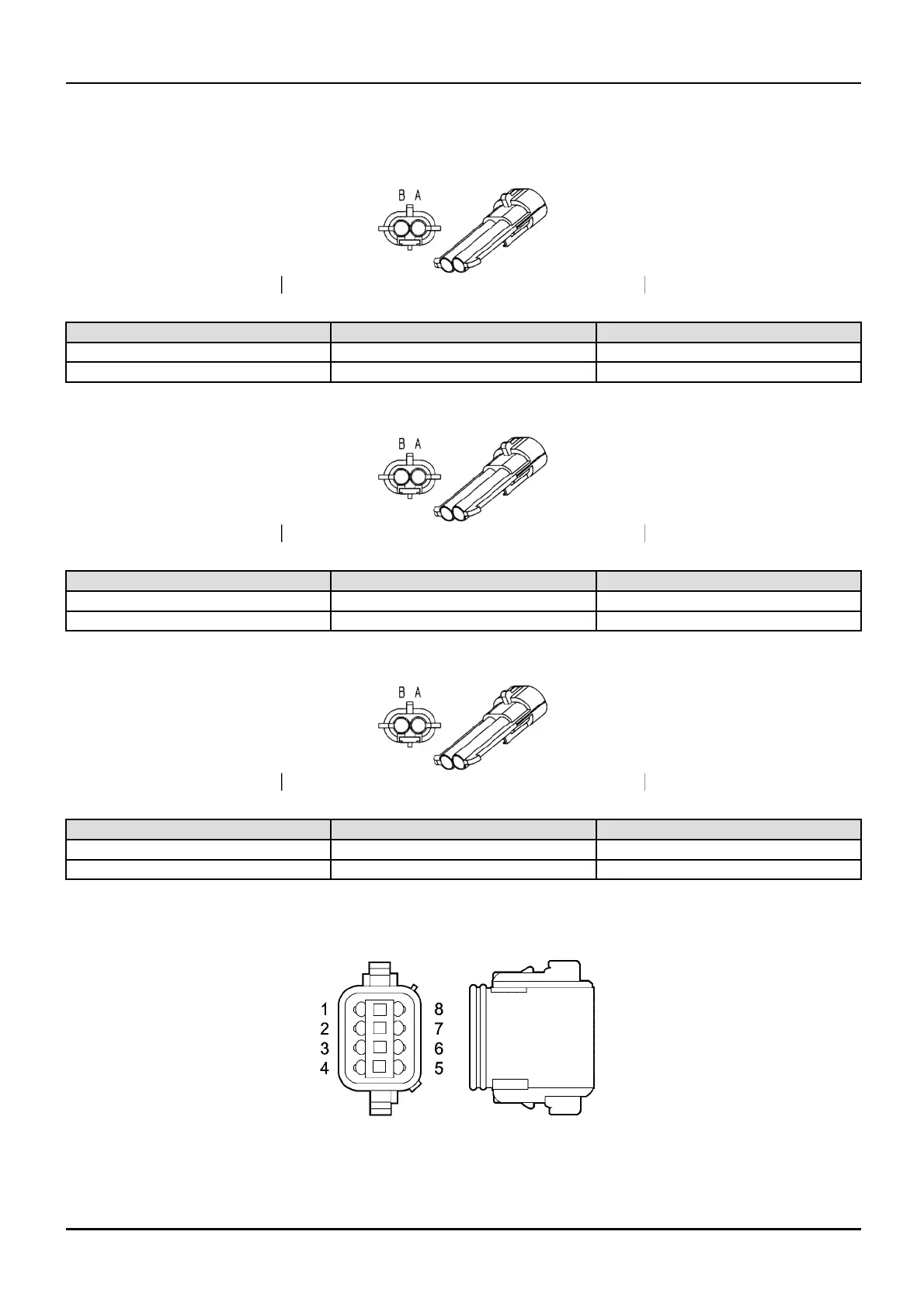

Connector - Component diagram frame 26 (A.30.A.87 - C .20.F.26)
435, 445, 445CT
Connector 39F (Grey)
253294A1 1
Cavity Circuit ID
Description
A
890AF (R) From horn switch (option F)
B
892AF (V) From horn switch (option F)
Connector 39G (Grey)
253294A1 2
Cavity Circuit ID
Description
A
890AG (R) From horn switch (option G)
B
892AG (B) From horn switch (option G)
Connector 39H (Grey)
253294A1 3
Cavity Circuit ID
Description
A
890AH (R) From horn switch (option H)
B
892AH (V) From horn switch (option H)
Connector 49H
DEUTSCH_DT06-8S 4
1 04/05/2005
A.30.A / 52
