Case 435 - Page 138

DISTRIBUTION SYSTEMS - ELECTRICA L POWE R SYSTEM
Cavity Circuit ID
Description
A1
130D (R) From connector 9 pin C
B2
131B (R)
From connector 9 pin B
A3
137D (W)
From splic e 3
B3
622C (W)
From connector 9 pin A

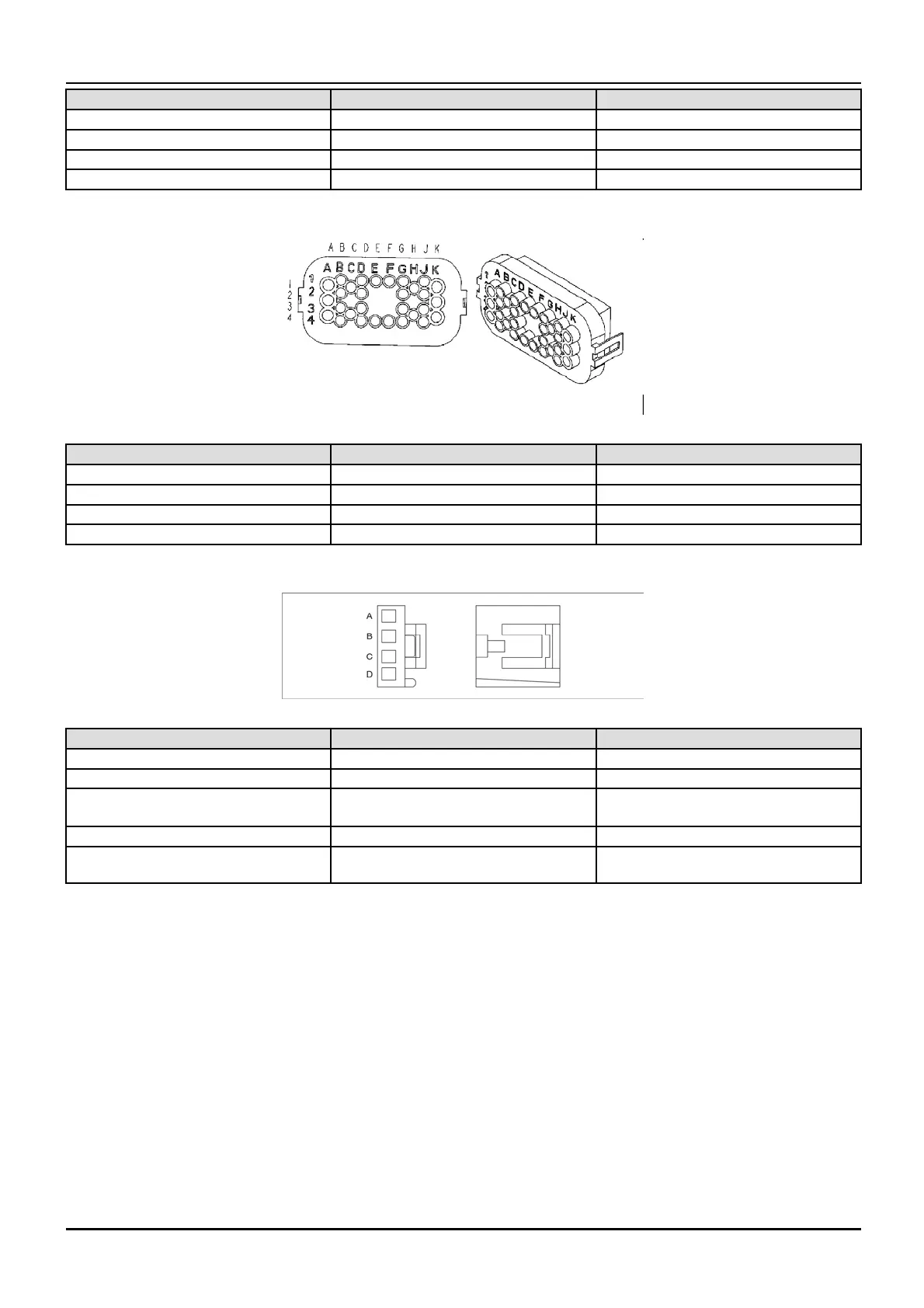

Connector 8A
256356A1 4
Cavity Circuit ID
Descripti
on
A1
130A (R)
From 15 amp
circuit breaker
B2
131A (R)
To connect
or 25 pin A
A3
137F (R) To primary fuse block terminal 2
B3
622A (W)
To connec
tor 127 pin B
Connector 9
pac_12052856 5
Cavity Circuit ID
Description
A
622C (W)
To connector 8 pin B3
B
131B (R)
To connector 8 pin B2
C 130C (R)
To connector 23 pin 3 instrument
cluster ("BAT")
C 130D (R)
To connector 8 pin A1
D
137B (R)
To splic e 3 to instrument cluster pin
10 "ACC"
1 04/05/2005
A.30.A / 12
