Case 435 - Page 142

DISTRIBUTION SYSTEMS - ELECTRICA L POWE R SYSTEM

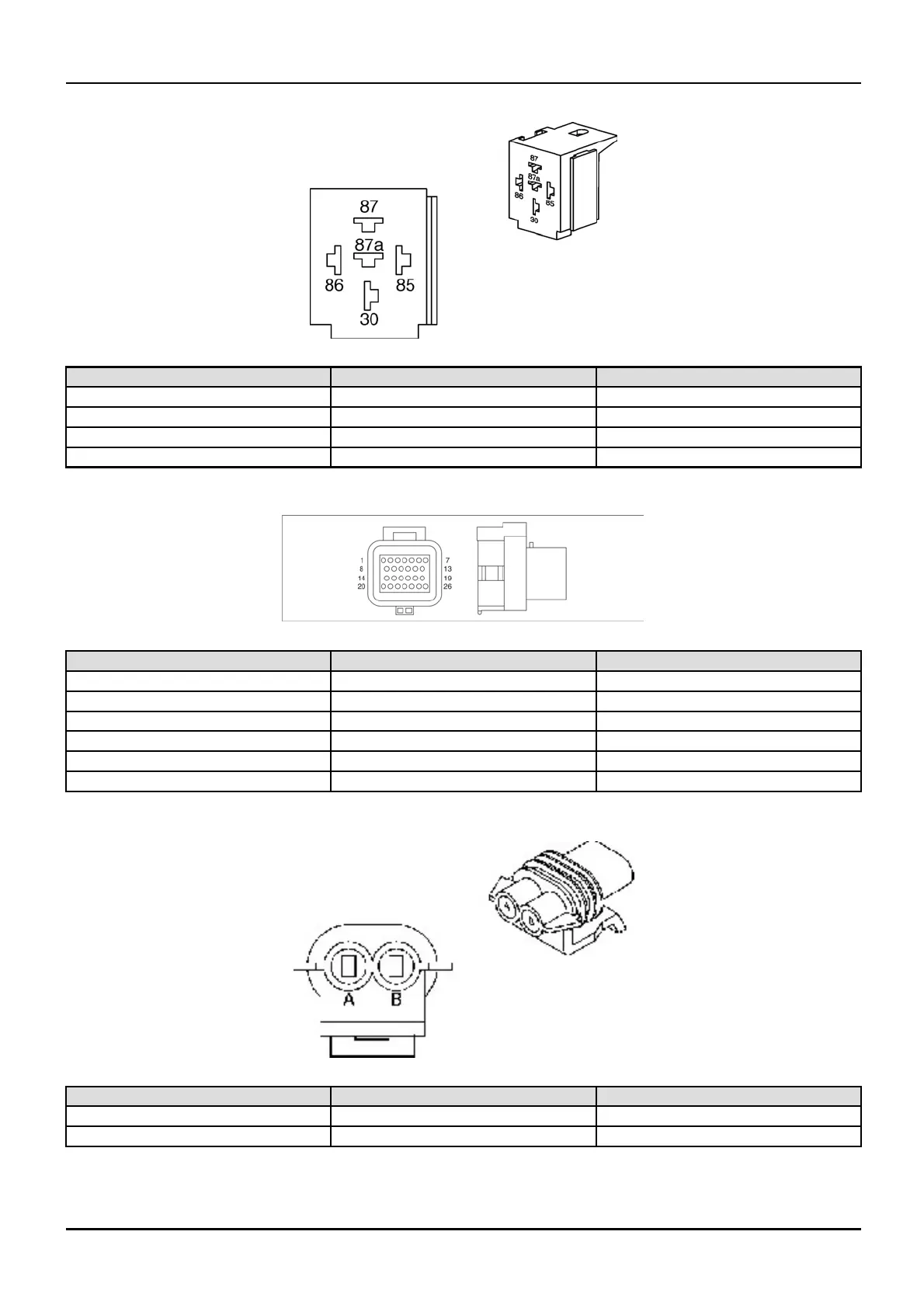

Connector 18
245731C1 3
Cavity Circuit ID
Description
30
300B (R)
From splic e 1
85
178E (B)
To ground
86
303D (T) To connecto
r8ApinC2
87
311B (T)
To connector 50 pin A
Connector 23
amp_3-1437290-8 4
Cavity Circuit ID
Description
12
323B (T) From connector 8 pin C1
14
313C (T)
To connector 59 pin B
8
258A (T)
To connector 8 pin D4
5
602C (W)
To connector 8 pin J2
26
319C (T)
To connector 8 pin D1
4
754B (P)
To connector 8 pin D3
Connector 48
256340a1 5
Cavity Circuit ID
Description
A
178R (B)
To ground
B
565A (T)
To connector 79B pin B
1 04/05/2005
A.30.A / 16
