Case CX145C SR - Safety Valves (Optional); Optional Tool Supply Valves (Optional)

3-CONTROLS/INSTRUMENTS
Safetyvalves(optional)
Servicespecications
CheckbyyourCASECONSTRUCTIONDealer:Every6months
Theroleofthesafetyvalveistostoptheattachmentfromdroppingduetovalvespoolleakageinneutralpositionor
intheeventofalineorhoseaccidentallybreaking.Inthelatterevent,theyalsoensurethattheattachmentmaybe
loweredgentlytotheground.

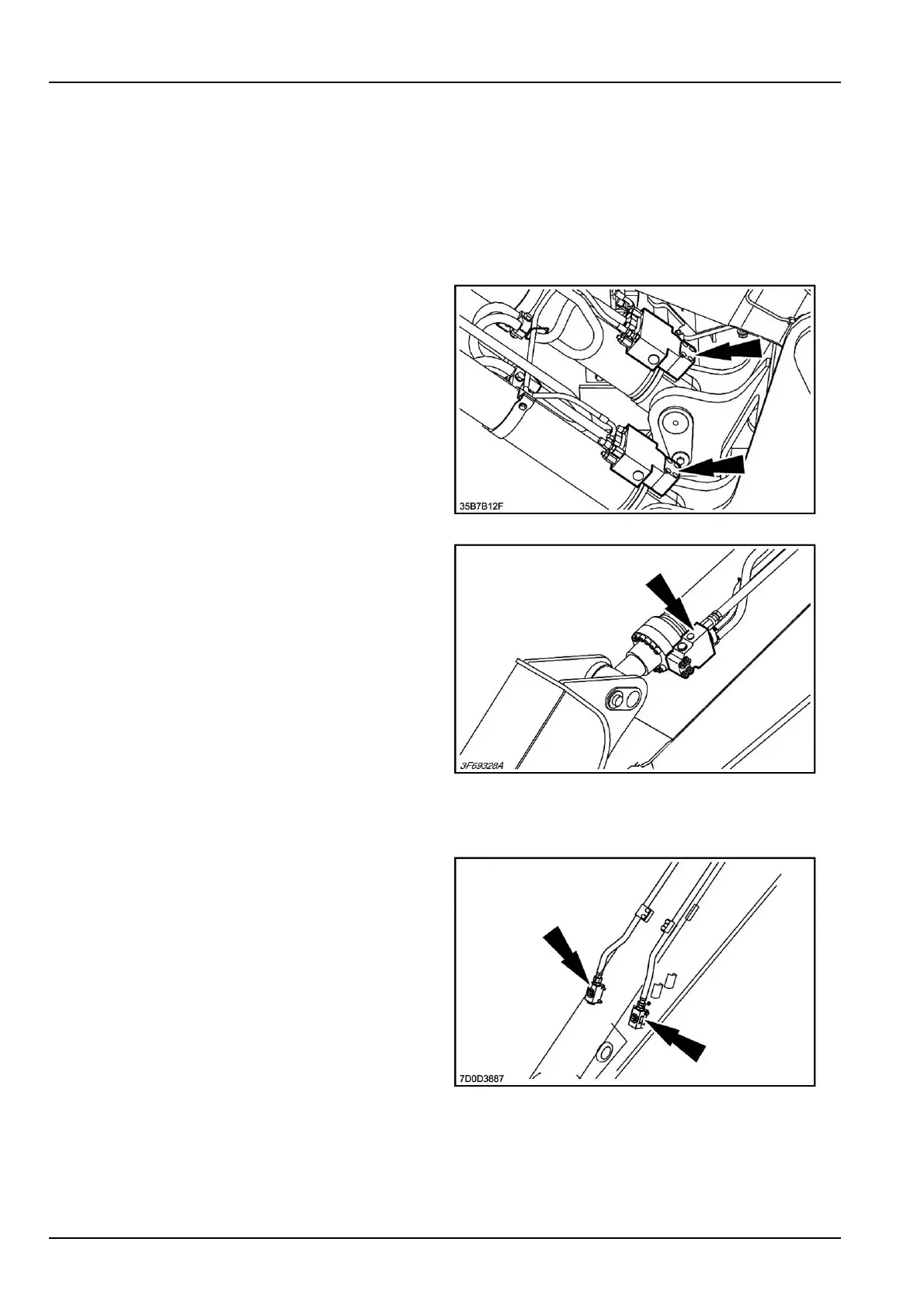

Onboomcylinders
35B7B12F1
Onarmcylinder
3F69328A2
Optionaltoolsupplyvalves(optional)
Locatedoneachsideoftheendofthearm,thesevalves
areusedtoensureoilsupplytooptionaltools,forexam-
ple,hydraulicbreakers,etc.Thesevalveshavetwoposi-
tions,open/closed.
7D0D38871
3-78
