Case CX145C SR - Monitor Switches

3-CONTROLS/INSTRUMENTS

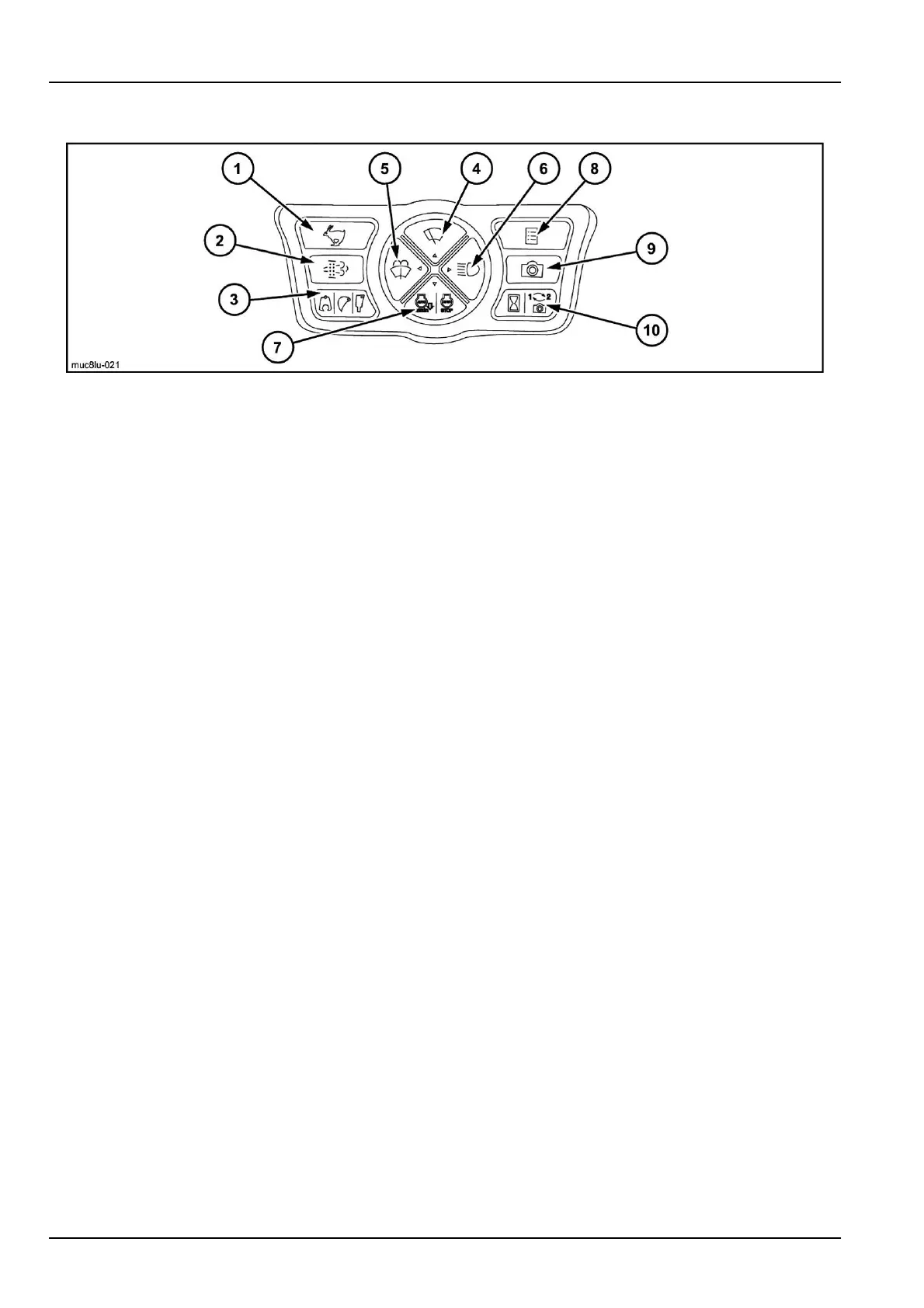

Monitorswitches
MUC8LU-0211
1.Travelspeedselectswitch
Pressthisbuttonswitchtoswitchthetravelspeed
fromlowspeed(I)(turtle)tohighspeed(II)(rabbit).
A"turtle"or"rabbit"isdisplayedonthemonitorscreen.
ATTENTION:Performallchangestothetravelspeed
whilethemachineisstopped.Otherwise,thetravel
directionmaychange.
Lowspeed(I):"turtle"0km/h(0.0mph)to3.4km/h(2.1
mph).
Usefortravelonsloped,unevenorsoftground.
Highspeed(II):"rabbit"0km/h(0.0mph)to5.6km/h
(3.5mph).
Useongoodterrainthatishardandat.
NOTE:Whentheenginestarts,thelowspeedisselected
automatically.
NOTE:Ifthehydraulicpressuresystementersan
overloadstatewhilethehighspeedisselectedonthe
machine,thespeedischangedautomaticallytothe
lowspeed.Assoonasthehydraulicpressuresystem
recoversfromtheoverloadstate,thespeedreturnsto
thehighspeed.
2.DPD(DieselParticulateDiffuser)Manualregenera-
tionswitch
PressthisswitchtostartDPD(DieselParticulateDif-
fuser)manualregeneration.Pressthisswitchifthe
"PushDPDswitchtoactivate"messageappearson
themonitor.(Refertopage3-37).
ATTENTION:Thetemperatureofthemuferandex-
haustgasishighduringDPD(DieselParticulateDif-
fuser)regeneration.Becarefulofburnsandre.
3.Attachmentselectswitch
Whenusinganoptionalattachmentsuchasabreaker
orcrusher,pressthisswitchtoswitchtoasuitableow
andpressure.
Switchingtotheregisteredpatternsoccursifthe
switchispressed.
Theselectedattachmentisdisplayedonthemonitor
screen.
ATTENTION:Beforechangingtheattachmenttype,
stopoperationandsetthemachineinparkingposition.
4.Frontwiperswitch
Thisswitchhas3positions:“Off”,"Intermittent"and
"Continuous".
Whentheswitchispressedtooperatethewipersin-
termittently,(I)isdisplayedonthemonitor.
Whentheswitchispressedagaintooperatethe
wiperscontinuously,(II)isdisplayedonthemonitor.
Whentheswitchispressedagaintostopthewipers,
“Off”isdisplayedonthemonitor.
NOTICE:Donotoperatethewiperswhenthefront
glassisdry.Doingsocoulddamagethewipers.
5.Windshieldwasherswitch
Thewindshieldwasherandwipersoperatewhilethis
switchispressed,andtheystopwhentheswitchis
released.
NOTICE:Donotoperatethewasherwhenthereser-
voirisempty.Doingsocoulddamagetheelectric
pump.
6.Workinglightswitch
Usethisswitchtoturntheworkinglightonoroff.
Whentheswitchispressed,theindicatorandthe
workinglightturnon.Pressagaintoturnthemoff.
7.Engineautoidlingandautostopswitch
Pressthisswitchtoswitchbetweennormalidling
(switchontherightsidecontrollever),autoidling,
andautostop.
Whenthisswitchispressed,anindicatorisdisplayed
onthemonitor.
•
Inautoidling,“Auton/min”isdisplayed,andinnormal
idling,thedisplayturnsoff.
If5sec.elapsewithoutanyoperationswhilethispo-
sitionisselected,theenginetransitionstotheidling
speed.(Thisintervalcanbelengthened.Consultyour
CASECONSTRUCTIONDealer.)
Whenapartsuchasthecontrolleverorpedalisoper-
ated,theenginereturnstoitsoriginalspeed.
•
Inautostop,"Autostop"isdisplayed.
-Enginespeedis1200rpmorless.
"Idling"state
3-24
