4-OPERATINGINSTRUCTIONS

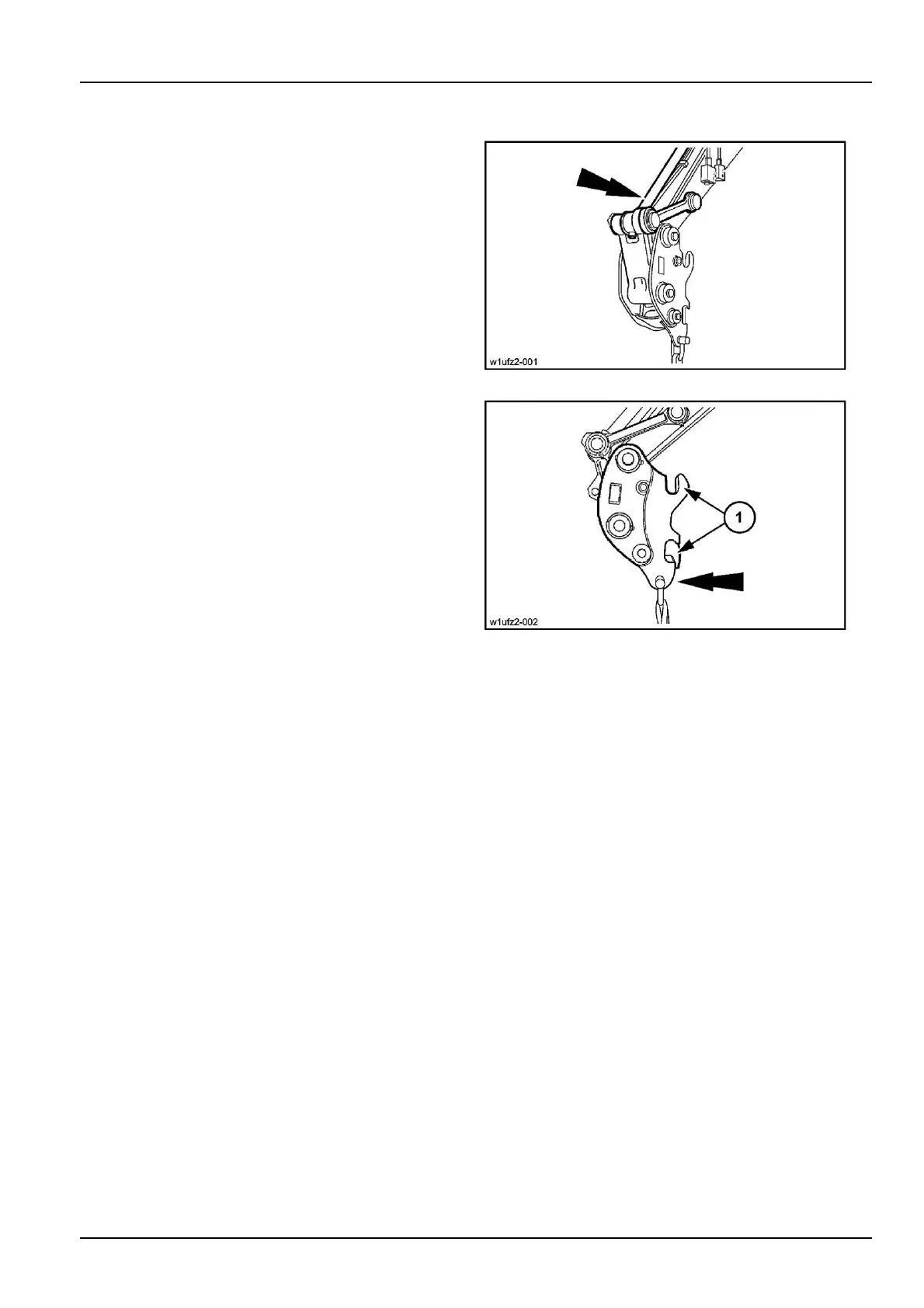

Handlingtheloadwiththequickcoupler(optional)
Theloadwiththequickcouplermustbehandledwiththe
bucketcylinderrodcompletelyextended.
ATTENTION:Maintainthispositionthroughouttheload
handlingoperation.
W1UFZ2-001A2
Thehandlingeyemustbeabletobeseenfromthecab
throughouttheloadhandlingoperation.
ATTENTION:Itisstrictlyforbiddentousethefrontorrear
xingpoints(1)ofthequickcouplertohandletheload.
NOTE:Thequickcouplereyecanbeusedforhandling
loadsupto10t.
W1UFZ2-002B3
4-21
