5-TRANSPORTOPERATIONS

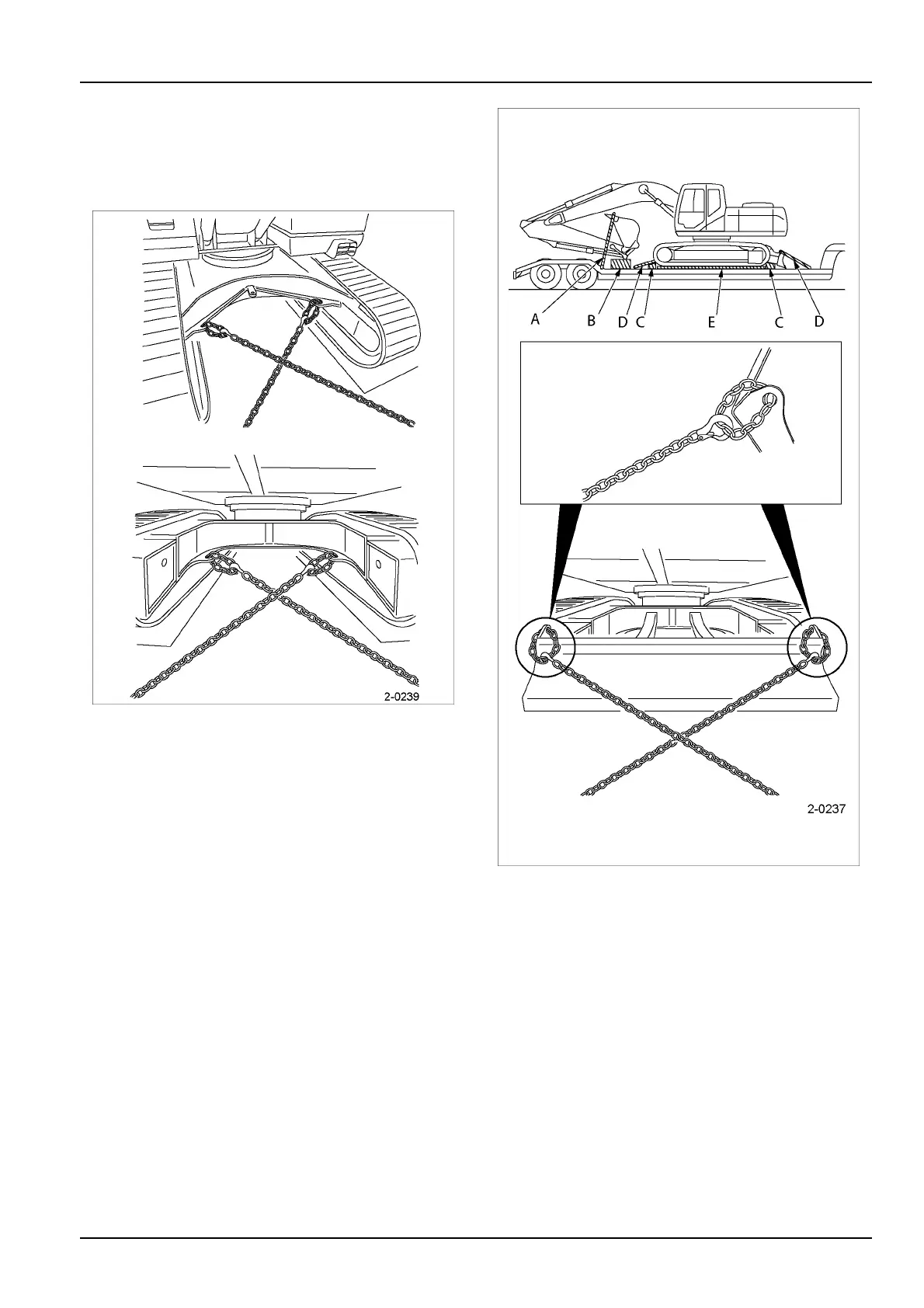

6.Tosecurethelowerframe,installchainstotheinstalla-
tionholesfortransportingthelower.Crossandtightly
pullthechainstoattachtheotherendsofchainsto
thetrailer.Also,securethefrontandrearoflower
withchains.
2_02393
7.Formachineswithblade,installchainstotheinstalla-
tionholesatthetopendsofblade,crossandtightly
pillthechainstoattachtheotherendsofchainstothe
trailer.
2_02374
A.Wirerope
B.Block
C.Stopblock
D.Chain
E.Rubbermat
8.Verifythateverythingisblockedandtieddownbefore
transportingthemachine.
NOTICE:Movementofthemachineduringtransportation
isdangerous.Securethemachinermlywithwirerope
orthelikesothatitwon’tmovefromvibration.
5-7
