6-MAINTENANCE

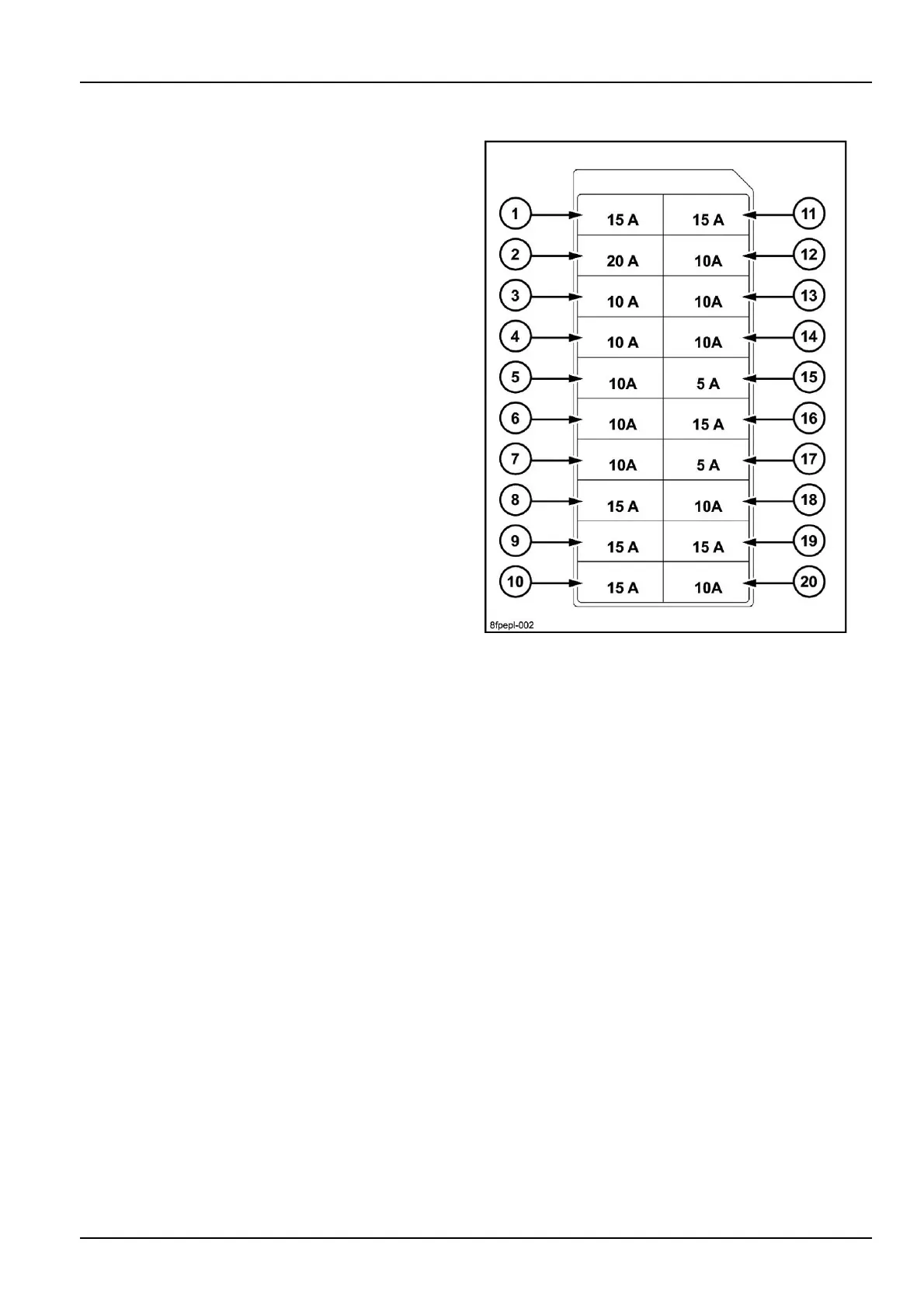

Fusefunctions
(1)Keyswitch:15A
(2)Enginecomputer:20A
(3)Spare:10A
(4)Back-up(radio,roomlamp):10A
(5)Functioncancellationlever:10A
(6)Solenoid:10A
(7)Horn:10A
(8)Cabtoplight:15A
(9)Boom,houselight:15A
(10)Spare:15A
(11)Wiper,washer:15A
(12)Travelalarm,rotarylight:10A
(13)Cigarlighter,seatsuspension:10A
(14)DCconverter:10A
(15)Airconditionerunit:5A
(16)Airconditionerblowermotor:15A
(17)Airconditionercompressor:5A
(18)Spare:10A
(19)Feedpump:15A
(20)Optionlinesolenoid:10A
8FPEPL-0023
NOTE:Afuseof5A,locatedontherearoftheoperator’sseat,isusedforGPSsystem(optional).
6-79
