182
Decode Tab
This tab is to set up options for decoding scanned bar code data.

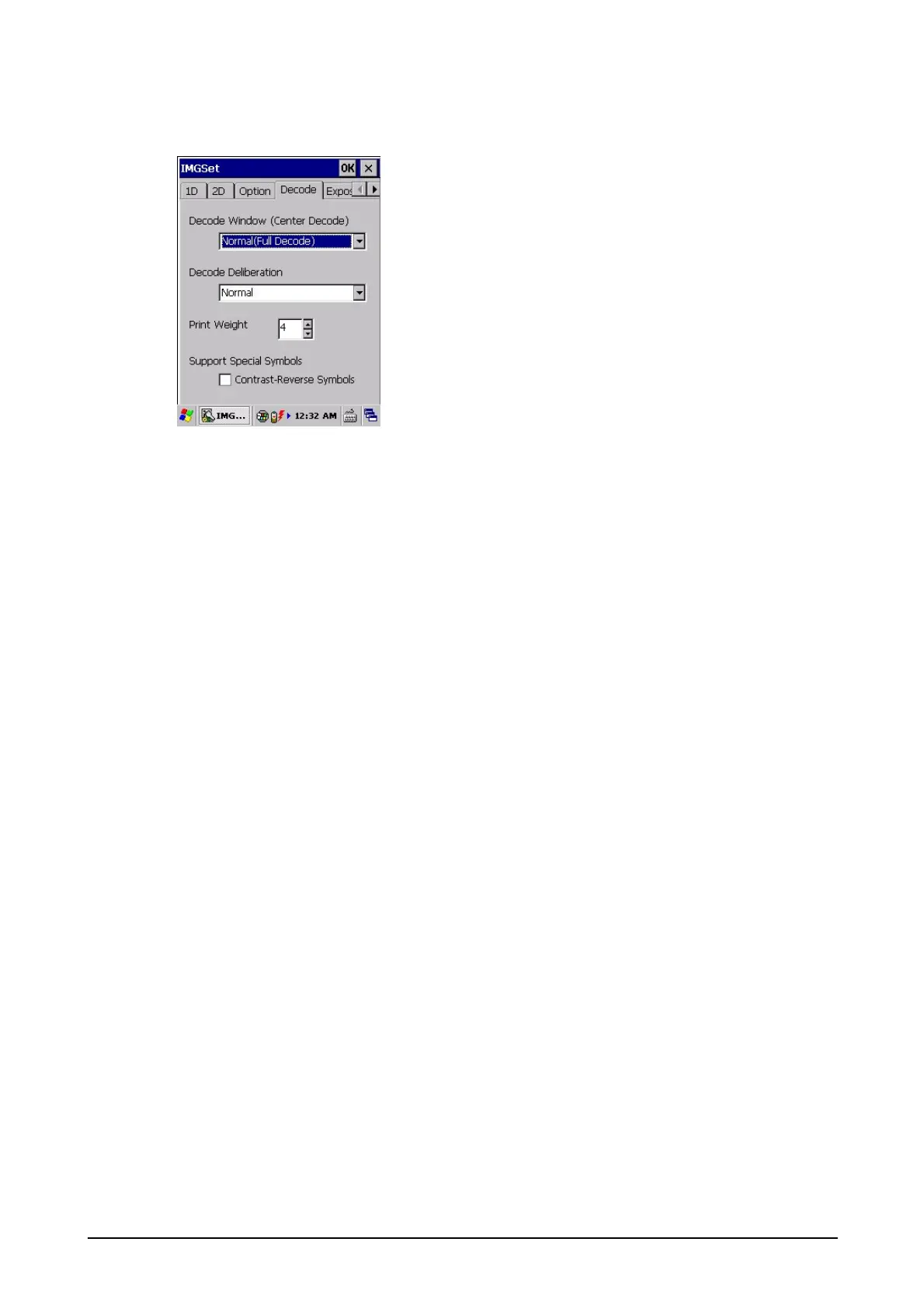

Figure 3-62
Decode Window
This field is to specify decode window mode by selecting one in the modes listed below.
When you specify except Normal mode, decode range will be decided automatically for only
scanning symbol at center area
- Normal(Full Decode)
- Center Decode (1D/2D Codes)
- Center Decode (Composite)
Decode Deliberation
This field is to specify decode deliberation mode by selecting one in the modes listed below. If it
is set up to “Very Quick” or “Quick”, the decoding speed becomes fast though the number of
symbols to be decoded is limited instead. Or, if it is set up to “Deliberate” or “Very Deliberate”,
the speed becomes slow though the number of symbols to be decoded is increased.
- Very Quick
- Quick
- Normal
- Deliberate
- Very Deliberate
Print Weight
This field is to set up the intensity in the range of 1 to 7 for target printed symbol. Setting a value
higher improves reading symbol printed in dark color, or lower improves reading symbol printed
in pale color.
Support Special Symbols (Contrast-Reverse Symbols)
This field is to set up scan special symbols which is contrast-reverse symbols (printed white color
in black color background).
