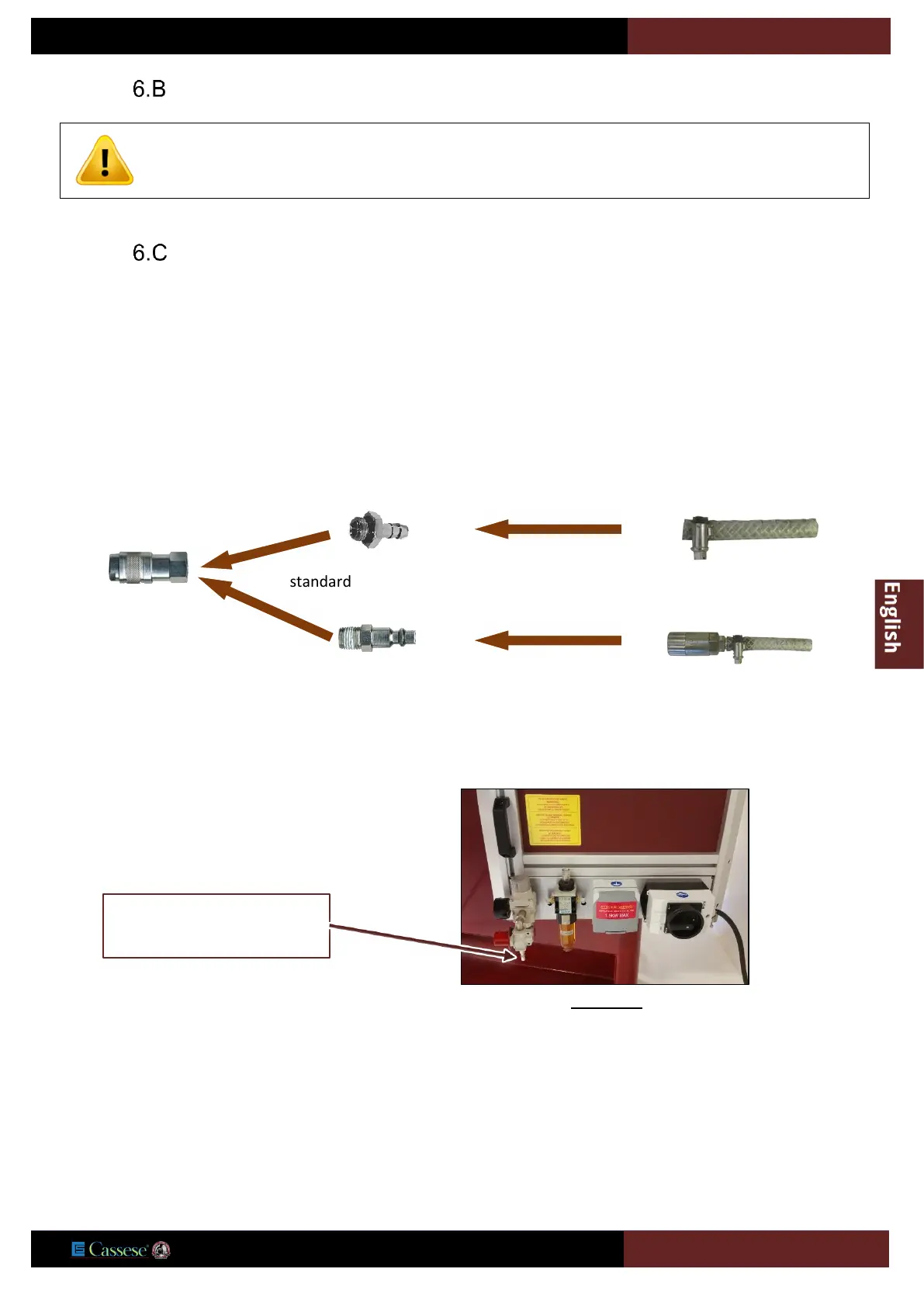

ELECTRICAL CONNECTION
AIR LINE FITTINGS
Provide a supply pipe with an inside Ø of 8 that will withstand the maximum pressure of the source, which must not be less than 6
bar.
Source characteristics: dry air, no lubrication
The machine must be connected to air power supply between 6 and 8 bar.
Included with the machine
Supplied by the customer
The user must connect the power supply cable to a source complying with the regulations in force and protect
the machine by fitting fuses: 25 Amp aM for 220 Volt single-phase or 16 Amp aM for 380/220 Volt 3-phase.
Quick release (Q/R) Female
Air connector Z749.
Female quick
connector
Z749
Quick
release(Q/R)
Female
Air Connector
- Z749
standard connector - Z556
USA male quick connector - Z701
Figure 6-19
